Base class for render object that draw a splat for each vertex of a Grid object. More...

#include <SplatRenderObject.hpp>

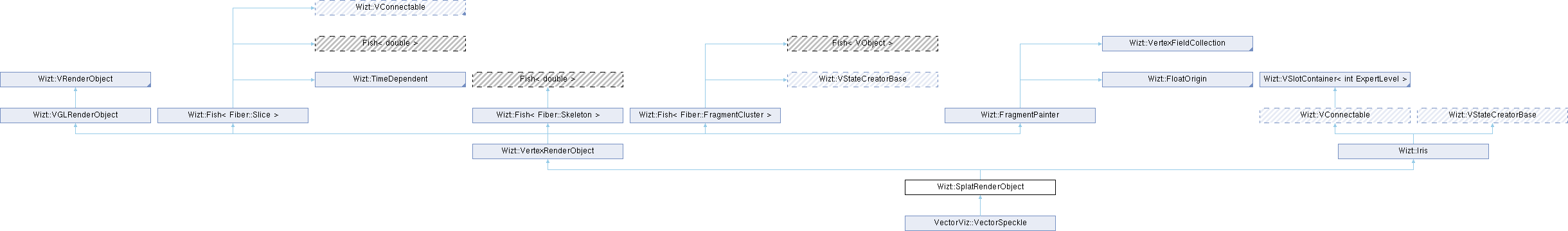

Inheritance diagram for Wizt::SplatRenderObject:

Classes
struct	Renderer
	A Vertex Buffer Render object for making splats. More...

Public Member Functions
	SplatRenderObject (const string &name, int p, const RefPtr< VCreationPreferences > &VP, double SizeScale=150.0, int AnimationVisibility=5)
	Constructor.

	~SplatRenderObject ()
	Destructor.

virtual string	splat_vertex_shader (VGLRenderContext &Context) const =0

virtual string	splat_fragment_shader (VGLRenderContext &Context) const =0

virtual void	setShaderVariables (VGLRenderContext &Context, const RefPtr< GLProgram > &ShaderProgram) const
	Virtual function to set variables in the shader program, such as parameters from the Vish inputs.

RefPtr< VBO::Renderer >	createRenderer (VGLRenderContext &Context, const RefPtr< MemBase > &FieldCoordinates, const RefPtr< FragmentSelector > &FS) const override
	Render function: create a renderer object.

void	setRendererParameters (VGLRenderContext &Context, const RefPtr< VBO::Renderer > &theRenderer, const RefPtr< CreativeArrayBase > &VertexCoordinates, const RefPtr< GLProgram > &theShaderProgram) const override
	Update a renderer object, in case the fragment selector is newer.

bool	must_update (const VRequest &, double precision) const override

bool	renderGL (VGLRenderContext &Context) const override
	Creates an OpenGL Shader, and finally calls renderFragments().

string	help (HelpType=HTMLText) const override

virtual string	FragmentShaderPrefix (VRenderContext &) const
	Predefined way to set the name of a render object.

Public Member Functions inherited from Wizt::VertexRenderObject
RefPtr< VObject::State >	newState () const override

bool	update (VRequest &Context, double precision)
	virtual callback

	VertexRenderObject (const string &name, int Q, const RefPtr< VCreationPreferences > &VP, int SelectionEL=5)
	Constructor.

	~VertexRenderObject ()
	destructor

int	iterate (const RefPtr< ValuePool > &VP, FragmentCluster::Iterator &RFI) const
	Execute an arbitary fragment cluster iterator over the fragments that are stored here.

RefPtr< RenderBasin::Program >	newProgram (VRenderContext &Context) const
	Optionally provide a shader program here.

RefPtr< ValueSet >	CacheableVariables (const RefPtr< ValuePool > &Context) const
	Return a set of variables for which the results shall be cached, i.e.

bool	renderGL (VGLRenderContext &Context) const override
	Implements the render() function and defers it to the FragmentPainter::renderFragments() function.

Public Member Functions inherited from Wizt::VGLRenderObject
bool	environment_render (VRenderContext &Context) const override

void	useVBO (VGLRenderContext &Context, const WeakPtr< VBO > &theVBO) const

	VGLRenderObject (const string &name, int p, const RefPtr< VCreationPreferences > &VP)

Public Member Functions inherited from Wizt::VRenderObject
void	closeBBox (const RefPtr< ValuePool > &VP) const

void	embrace (const RefPtr< ValuePool > &VP, const point &crd) const

RefPtr< BoundingBall >	getBoundingBall (const RefPtr< ValuePool > &VP) const override

bool	resetBBox (const RefPtr< ValuePool > &S) const

bool	safe_render (VRenderContext &Context, double Z=0, double dZ=-1) const override

void	setBoundingBall (const RefPtr< ValuePool > &VP, const RefPtr< BoundingBall > &BS) const

	VRenderObject (const string &name, int p, const RefPtr< VCreationPreferences > &VP)

Public Member Functions inherited from Wizt::VEnvironmentRenderObject
void	announce (const string &name, const VCamera &ViewpointProperties, const RefPtr< ValuePool > &Context) const

void	getRenderPrecision (VRenderContext &Context, double &OverallPrecision, double &ThisContribution) const

	VEnvironmentRenderObject (const string &name, int p, const RefPtr< VCreationPreferences > &VP)

Public Member Functions inherited from Wizt::RenderAble
virtual struct RenderTime	getLastRenderTime (VRenderContext &Context) const

virtual string	getSensorInfo (const RefPtr< ValuePool > &Context, const SensorView &theSensorView)

virtual RefPtr< BoundingBall >	getTouchableBoundingBall (const RefPtr< ValuePool > &VP) const

bool	isVisible (const RefPtr< ValuePool > &Context) const

Public Member Functions inherited from Wizt::VObject
string	CreatorName () const

const WeakPtrVCreatorBase &	getCreator () const

virtual bool	request (VRequest &, double precision, const WeakVObjectPtr &ImmediateRequestor, const WeakVObjectPtr &RootRequestor)

bool	schedule (double precision, const RefPtr< ValuePool > &Context=nullptr)

void	enableRequestProcessing ()

void	disableRequestProcessing ()

bool	acceptsRequests () const

const MemCore::Counter &	UpdateCount () const

const MemCore::Counter &	RequestCount () const

	VObject (const string &name, int p, const RefPtr< VCreationPreferences > &VP)

virtual const GimpIcon *	gimp_icon () const

virtual const char const	xpm_icon () const

virtual string	qt_icon () const

bool	setObjectAsChild (const VObjectPtr &childVObject, const string &DependencySlotName)

double	requestTime () const

void	remove ()

const RefPtr< VCreationPreferences > &	CreationPreferences () const

virtual std::string	type_key () const

void	iterateParents (VObjectIterator &VOI, int EL=0) const

int	iterateParents (const VObjectIterator_f &VOI, int EL=0) const

virtual string	CreateParameterName (const ParameterID &name) const

int	iterateChildren (ChildIterator &) const

int	findChildren (const Lambda &theLambda) const

std::list< std::vector< std::string > >	getProvenance () const

AttachErrorCode	attachNewObject (const RefPtr< VSlot > &slot, const string &name, const Intercube &CreationContext, const RefPtr< VCreationPreferences > &VCP=nullptr)

AttachErrorCode	attachNewObject (const RefPtr< VSlot > &slot, const string &name, const RefPtr< VCreationPreferences > &VCP=nullptr)

AttachErrorCode	attachInputObject (const RefPtr< VSlot > &slot, const string &name={}, const RefPtr< VCreationPreferences > &VCP=nullptr, bool ReallyUnique=true)

CreateConnectionResult_t	createChild (const VAcception &VA, const Intercube &CreationContext)

CreateConnectionResult_t	connectChild (const VObjectPtr &ChildObject, const RefPtr< VAcceptInfo > &VA)

CreateConnectionResult_t	connectAsChild (const VObjectPtr &ChildObject, const VAcception &VA)

virtual void	InputCreation (const RefPtr< VParameter > &CurrentObjectsInput, const VObjectPtr &NewlyCreatedObject, const RefPtr< VParameter > &TheNewObjectsOutputParameter)

VObjectPtr	createInput (const WeakPtrVCreatorBase &VCrec, const RefPtr< VSlot > &what, const string &name, Intercube &CreationContext)

VObjectPtr	extractSlot (const RefPtr< VSlot > &theSlot, const string &theNewName=string()) const

Public Member Functions inherited from MemCore::ReferenceBase< VManagedObjectBase >
auto	getObjectCountID () const noexcept

bool	isIdentical (const WeakPtr< Object, Object > &PossibleSelf) const noexcept

void	mkAutoDestructive ()

refcount_t	refcount () const noexcept

	ReferenceBase (Object *that) noexcept

const auto &	self () const

refcount_t	wrefcount () const noexcept

Public Member Functions inherited from Wizt::VConnectable
virtual void	adjustConnections (const RefPtr< VSlot > &ChangedSlot, const RefPtr< VParameter > &par)

VSlotContainer::AttachErrorCode	attach (const ParameterID &whichone, VSlotContainer &sourceObject, const ParameterID &sourceName)

AttachErrorCode	attach (const RefPtr< VParameter > &OldParam, const RefPtr< VParameter > &NewParam, const string &Member={})

AttachErrorCode	attachUniqueObject (const RefPtr< VParameter > &param, const RefPtr< VCreationPreferences > &VCP=NullPtr(), bool ReallyUnique=true)

AttachErrorCode	attachUniqueObject (const RefPtr< VSlot > &slot, const RefPtr< VCreationPreferences > &VCP=NullPtr(), bool ReallyUnique=true)

RefPtr< VSlot >	Connect (const RefPtr< VParameter > &SourceParam)

RefPtr< VSlot >	ConnectInterface (const RefPtr< VSlotContainer > &Provider, const RefPtr< InterfaceBase > &IB)

virtual bool	CreatedFilteredConnection (const RefPtr< VParameter > &SourceParam)

Public Member Functions inherited from Wizt::VSlotContainer< int ExpertLevel >
Ageable &	age (const RefPtr< ValuePool > &VP)

const Ageable &	age (const RefPtr< ValuePool > &VP) const

const Ageable &	ConnectionAge () const

bool	ConnectionsHaveChanged (const RefPtr< ValuePool > &VP) const

bool	HasYoungerInput (const RefPtr< ValuePool > &Context, int RecursionLevel=0) const

Ageable	YoungestInput (const RefPtr< ValuePool > &Context) const

Ageable	YoungestOutput (const RefPtr< ValuePool > &Context) const

Ageable	YoungestUncachedInput (const RefPtr< ValuePool > &Context) const

bool	CheckIfThereExistNewerOutputs (const VRequest &request, bool AdjustObjectAge) const

RefPtr< VSlot >	addParameter (const ParameterID &name, int EL, const RefPtr< VParameter > &param, bool overwriteExistingSlot)

virtual bool	allowParameterReplacement (const RefPtr< VParameter > &NewParam, const RefPtr< VParameter > &OldParam, const string &localName, int ExpertLevel)

virtual int	connectSlots (const VSlotContainerPtr &vobj)

bool	removeParameter (const ParameterID &s)

RefPtr< VParameter >	getParameter (const ParameterID &s) const

RefPtr< VSlot >	getSlot (const ParameterID &s, int &EL) const

bool	setSlotValueFromText (const ParameterID &s, const string &ValueText, const RefPtr< ValuePool > &VP, const string &theMember={})

RefPtr< VSlot >	findSlot (const RefPtr< VParameter > &param) const

string	getSlotName (const RefPtr< VParameter > &param) const

bool	AddAction (const ParameterID &s, const RefPtr< ValueActionBase > &VAB)

bool	AddAction (const RefPtr< VSlot > &ActionSlot, bool(DerivedObject::*Action)(const RefPtr< VValueBase > &value))

RefPtr< VParameter >	mkUniqueParameterInput (const ParameterID &s, const string &ContainerName)

int	getExpertLevel (const ParameterID &s) const

int	setExpertLevel (const ParameterID &s, int EL)

int	getExpertLevel (const RefPtr< VParameter > &) const

int	getExpertLevel (const RefPtr< VSlot > &S) const

int	setExpertLevel (const RefPtr< VSlot > &S, int EL)

int	setExpertLevel (const RefPtr< VParameter > &s, int EL)

bool	hasChanged (const ParameterID &s, const RefPtr< ValuePool > &Context) const

bool	hasChanged (const RefPtr< VSlot > &, const RefPtr< ValuePool > &Context) const

bool	hasChanged (const RefPtr< ValuePool > &Context, int n,...) const

bool	hasChanged (RefPtr< ValuePool > Context,...) const

virtual bool	ignoreInput (const RefPtr< VSlot > &theSlot) const

bool	getParameterValue (Type &Variable, const ParameterID &s, const RefPtr< ValuePool > &VP) const

bool	getParameterValue (Type &Variable, const ParameterID &s, const VContext &C) const

bool	getParameterValue (Type &Variable, const ParameterID &s, const VRequest &R) const

bool	setParameterValue (const Type &Variable, const ParameterID &s, const RefPtr< ValuePool > &VP, bool autoCreateLocalValue) const

bool	setParameterValue (const Type &Variable, const ParameterID &s, VContext &C, bool autoCreateLocalValue) const

bool	setParameterValue (const Type &Variable, const ParameterID &s, VRequest &R, bool autoCreateLocalValue=false) const

RefPtr< VSlot >	addParam (const ParameterID &name, const Type &init, const RefPtr< VCreationPreferences > &VP=NullPtr(), int expertLevel=0, bool overwriteExistingSlot=true)

bool	setParameterProperty (const ParameterID &param, const string &Properties, const RefPtr< VValueBase > &Value=NullPtr())

RefPtr< VSlot >	addFloatParam (double init, const ParameterID &param, double min, double max, const RefPtr< VCreationPreferences > &IP=NullPtr(), int expertLevel=0)

AttachErrorCode	attach (const RefPtr< VParameter > &OldParam, const RefPtr< VParameter > &NewParam, const string &Member={})

int	iterateParameters (int expertLevel, VSlotIterator &VIIt) const

int	iterateInputSlots (int expertLevel, VSlotIterator &VIIt) const

int	iterateInputs (VSlotIterator &VIIt, int expertLevel=0)

int	iterate_inputs (const std::function< bool(VSlot &what, int ExpertLevel)>) const

RefPtr< VSlot >	getUniqueInputSlot (const type_info &what)

int	getNumberOfParameters (int expertLevel) const

virtual bool	implements (const type_info &what) const

virtual RefPtr< VParameter >	getImplementation (const type_info &what, const string &name={}, const string &member={}) const

RefPtr< VSlot >	getImplementationSlot (const type_info &what, const string &Name={}, const string &Member={}) const

VAcceptInfoList_t	getAcceptInfoList (const std::type_info &request_type) const

bool	provides (const RefPtr< VSlot > &OutputSlot) const

RefPtr< VSlot >	findOutputSlot (const RefPtr< VParameter > &Who) const

bool	isYounger (const RefPtr< VParameter > &OutputParam, const RefPtr< ValuePool > &VP) const

bool	isNewlyConnected (const RefPtr< VParameter > &Who, const RefPtr< ValuePool > &VP) const

bool	hasNewlyConnectedOutputs (const RefPtr< ValuePool > &VP) const

void	findNewlyConnectedOutputs (const RefPtr< ValuePool > &VP, VSlotSet &WhichOnes) const

RefPtr< VSlot >	getOutput (const string &Name) const

RefPtr< MemCore::StringList >	getOutputs (const type_info &what=typeid(void)) const

virtual int	iterateOutputs (VOutputIterator &VOut, const type_info &just_these=typeid(void)) const

bool	registerOutput (const RefPtr< VParameter > &P, const string &AsName={})

bool	registerOutput (const RefPtr< VParameter > &P, const string &AsName, const type_info &MemberType, const string &UseMember)

bool	registerOutput (const RefPtr< VParameter > &P, const type_info &MemberType, const string &UseMember)

int	getNumberOfInputs () const

int	getNumberOfOutputs () const

bool	hasChangedSlots (const MemCore::Intercube &IC, const RefPtr< ValuePool > &Context) const

auto	include_self (const std::tuple< SlotList... > &t) const -> decltype(std::tuple_cat(std::make_tuple(this), t))

	in (VSlotContainer *that, const string &name, int expertLevel=0)

	in (VSlotContainer *that, const string &name, const GridSelector &GS=GridSelector(), int expertLevel=0)

	out (VConnectable *Source, const string &initial_name, const Fiber::GridSelector &InitValue=GridSelector(), const RefPtr< VCreationPreferences > &CP=NullPtr())

Public Member Functions inherited from Wizt::VStateCreatorBase
RefPtr< State > &	getState (const WeakPtr< ValuePool > &VP) const

RefPtr< InterfaceBase >	hasLocalInterface (const type_info &InterfaceType) const

RefPtr< State >	myState (const WeakPtr< ValuePool > &Context) const

void	setState (const WeakPtr< ValuePool > &, const RefPtr< State > &st) const

Public Member Functions inherited from Wizt::VSaveable
void	addSaver (const string &, const RefPtr< VishSaver > &)

void	addSavers (AppClass &A)

bool	autosave () const

RefPtr< VishSaver >	getMostRecentSaver () const

size_t	getNumberOfSavers () const

RefPtr< VishSaver >	getSaver (const string &) const

RefPtr< VishSaver >	getSaverByExt (const string &ext) const

int	iterate_savers (const save_iterator &si) const

Public Member Functions inherited from Wizt::VManagedDomainObject< VObject >
const type_info &	getDomainType () const override

void	remove ()

	VManagedDomainObject (const string &name, int priority=DEFAULT_PRIORITY)

Public Member Functions inherited from Wizt::VManagedObject
string	getLoadModule () const

void	insert (const string &s, int priority=DEFAULT_PRIORITY)

void	remove ()

void	setPriority (int priority)

	VManagedObject (const string &name, int priority=DEFAULT_PRIORITY)

Public Member Functions inherited from MemCore::Intercube
void	addInterface (const RefPtr< InterfaceBase > &I) const

void	addInterfaceData (const Data &D)

void	addInterfaceData (const Data &D)

void	clearInterfaces ()

bool	const_iterateInterfaces (const RefPtr< InterfaceIterationParameter > &IIP) const

virtual RefPtr< InterfaceBase >	createInterface (const type_info &) const

RefPtr< InterfaceBase >	findInterface (const type_info &t) const

RefPtr< InterfaceBase >	getInterface (const type_info &t)

std::string	getInterfaceNames (const char delim=';') const

bool	gotNewInterfaceData (const Data &D)

bool	gotNewInterfaceData (mutex &M, const Data &D)

bool	gotNewInterfaceData (mutex &M, const Data &D)

bool	gotNewInterfaceData (mutex &M, const Data &D, const Selector &S)

bool	gotNewInterfaceData (mutex &M, const Data &D, const Selector *S)

bool	hasChangedInterfaceData (const Data &D) const

bool	hasChangedInterfaceData (const Data &D) const

bool	hasChangedInterfaceData (const Data &D, const Selector &) const

bool	hasChangedInterfaceData (const Data &D, const Selector *) const

bool	hasInterface (const type_info &t) const

bool	iterateInterfaces (const RefPtr< InterfaceIterationParameter > &IIP)

void	printInterfaces () const

void	registerInterface (const type_info &t)

void	removeInterface ()

void	removeInterfaceBase (const type_info &InterfaceBaseID)

Public Member Functions inherited from MemCore::MutableName
void	addNameChangeNotifier (const WeakPtr< Notifier > &)

std::string	BaseName (const char Separator) const

const std::string &	getName () const

	MutableName (const std::string &theName)

const std::string &	Name () const

void	rename (const std::string &newName)

void	setName (const std::string &newName)

Public Member Functions inherited from Wizt::VScriptable
RefPtr< VScriptFunctor >	findFunctor (const string &name) const

RefPtr< VScriptFunctor >	insertFunctor (const string &name, const RefPtr< VScriptFunctor > &)

bool	iterate (iterator &it)

int	nFunctors () const

void	removeFunctor (const string &name)

Public Member Functions inherited from Wizt::VTraceRequestID
bool	addRequest (const VRequest &request)

bool	hasRequest (const VRequest &request) const

Public Member Functions inherited from Wizt::VTransformable
RenderBasin::glsl	getTransformationShaderFunctions (VRenderContext &Context) const

bool	initializeAnemoneTransformation (Anemone &RenderAnemone, VRenderContext &Context) const

RefPtr< BoundingBox >	shadedVolume (const RefPtr< ValuePool > &Context, const RefPtr< BoundingBox > &VerticesBBox) const

Public Member Functions inherited from Wizt::StatusIndicator
bool	setStatusCritical (const RefPtr< ValuePool > &Context, const string &what) const

bool	setStatusError (const RefPtr< ValuePool > &Context, const string &what, bool AnnouncePublic=false) const

bool	setStatusInfo (const RefPtr< ValuePool > &Context, const string &what) const

bool	setStatusWarning (const RefPtr< ValuePool > &Context, const string &what) const

	StatusIndicator (VObject *what, const string &initialtext="", int EL=0, const string &statusslotname=Slotname)

Public Member Functions inherited from Wizt::Fish< Fiber::Slice >
	Fish (const string &time="time", const string &timescale="timescale")
	Constructor, uses the VObject from the virtual base class.

	~Fish ()
	Destructor.

double	getTime (const RefPtr< ValuePool > &VP, const RefPtr< Fiber::Bundle > &SpaceTime) const override
	Get the time value for the current selection from the value pool.

Fiber::Bundle::GridInfo_t	findRecentGrid (Fiber::GridSelector &GS, const RefPtr< ValuePool > &VP) const

Public Member Functions inherited from Wizt::TimeDependent
double	getTime (const RefPtr< ValuePool > &VP, double DefaultTime=0.0, const Range &DefaultRange=Range(0.0, 1.0)) const

const TypedSlot< VTime > &	getTimeSlot () const

void	setupTime (const VConnectable::CreationSlots_t &CreationSlots, bool CreateNewTimeObjectIfNoneExistent=true)

	TimeDependent (const char timename="time", const char timescalename="timescale", const RefPtr< VCreationPreferences > &VP=NullPtr(), const VTime &VT=VTime(0.0, 0.0, 0.0))

Public Member Functions inherited from Wizt::Fish< Fiber::Skeleton >
	Fish (const string &max="AMRmaxlevel", const string &min="AMRminlevel", int ExpertLevel=3)

	Fish (int ExpertLevel, const string &max="AMRmaxlevel", const string &min="AMRminlevel")

int	getMinRefinementLevel (const RefPtr< ValuePool > &VP) const override
	The minimal refinement level.

int	getMaxRefinementLevel (const RefPtr< ValuePool > &VP) const override
	The maximal refinement level.

Public Member Functions inherited from Wizt::FragmentPainter
	FragmentPainter (VObject *that, const string &fragmentselectorname="selection", int EL=5)
	Constructor, needs a VObject to initialize the slot driving the fragment selector.

virtual string	FragmentSelectionField () const
	Return the name of the field that will be responsible for the coordinates of the fields.

virtual string	GLCacheField (const RefPtr< ValuePool > &Context) const
	The name of the field that will be used for caching opengl VBO's at each of this fragments.

virtual string	VBOCacheKey (const RefPtr< ValuePool > &Context) const
	A child-class defined arbitrary string used to extend the cache modifier.

virtual void	updateRenderer (VGLRenderContext &Context, const RefPtr< VBO::Renderer > &R, const RefPtr< MemBase > &FieldCoordinates, const RefPtr< FragmentSelector > &FS) const
	Update a renderer object, in case the fragment selector is newer.

virtual Ageable	YoungestDependency (const RefPtr< ValuePool > &Context, const WeakPtr< Representation > &RefinementRep) const
	Optional child class for specifying dependencies that may have changed and require re-creation of a cached VBO.

virtual bool	appendOnDemandFragments (VGLRenderContext &Context, const RefPtr< VBO > &myVBO, int RefinementLevel, const WeakPtr< Representation > &RefinementRep, const RefPtr< FragmentID > &fragment_identifier, const Fiber::Fragment &FragmentData, const RefPtr< GLProgram > &Shader) const
	Virtual function to allow derived classes to create data on demand, i.e.

virtual void	setRendererParameters (VGLRenderContext &Context, const RefPtr< VBO::Renderer > &theRenderer, const RefPtr< CreativeArrayBase > &VertexCoordinates, const RefPtr< GLProgram > &theShaderProgram) const =0
	Given a Renderer, which usually is has been created by the createRenderer() virtual function, modify its parameters, depending on the context.

virtual bool	FunctorsAreOlderThan (const Ageable &A, const RefPtr< ValuePool > &Context) const

virtual void	updateFromFunctorsAge (Ageable &A, const RefPtr< ValuePool > &Context) const

void	renderFragments (Fiber::FragmentCluster &FC, VGLRenderContext &Context, VGLRenderObject::UsedVBO_t &UsedVBO, const RefPtr< GLProgram > &myProgram) const
	Render all the field fragments that are stored and available here.

Public Member Functions inherited from Wizt::VertexFieldCollection
	VertexFieldCollection (VObject *that)
	Construct a collection of fields on the vertices of a Grid.

	~VertexFieldCollection ()
	Destructor.

TypedSlot< Fiber::Field > &	insertVertexField (const string &s, const RefPtr< VertexField > &)
	Add a vertex field under the given name.

RefPtr< VertexField > &	operator[] (const string &s)
	Retrieve a VertexField for the given name, create one, if required.

RefPtr< VertexField >	operator() (const string &s) const
	Search for a VertexField under the given name.

Fiber::Info< Fiber::Skeleton >	getRefinementLevel (int Level, const RefPtr< ValuePool > &VP, int IndexDepth=0, const Fiber::BundlePtr &SpaceTime=Fiber::BundlePtr(NullPtr())) const override
	Implementation of the virtual callback function that will load data sets from a grid into a collection of VertexFields, as specified earlier.

virtual GridSelector	myGridSelector (const RefPtr< ValuePool > &VP) const
	Virtual function that allows child classes to specify the Grid that shall be used.

GridSelector	getGridSelector (const RefPtr< ValuePool > &VP) const override
	Get the Grid that will be used here.

void	retrieveFields (Fiber::FieldCollection &FieldMap, const RefPtr< Fiber::Representation > &MyRepresentation, const RefPtr< ValuePool > &Context, const RefPtr< Fiber::Skeleton > &DestVertices, Fiber::Grid &DestGrid, Fiber::Slice &DestGridSlice, const string &HelperDestGridName, bool StoreResult=true)
	From the given Representation, retrieve all fields as required here into the provided Fieldmap.

int	append (const RefPtr< VBO > &myVBO, const VertexFragment &VertexFragments, const RefPtr< GLProgram > &Shader) const
	Append all the fields stored in these vertex fragments to the given vertex buffer object.

bool	isOlderThan (const Ageable &A, const RefPtr< ValuePool > &Context) const
	Check if all parameters in this collection of fields is older than the given age.

void	updateAge (Ageable &A, const RefPtr< ValuePool > &Context) const

RefPtr< StringList >	getCurrentFieldnames (const RefPtr< ValuePool > &Context) const
	Get a list of all currently selected fields.

int	iterate (Iterator &It) const
	Iterate through all available vertex fields.

Public Member Functions inherited from Wizt::Fish< Fiber::Grid >
	Fish (const string &s="grid", int prior=2)
	Constructor, optionally pass a parameter of this grid's name (ie.

virtual	~Fish ()
	Destructor.

void	registerGridAsOutput ()
	Make grid visible as output.

Fiber::Bundle::GridInfo_t	findMostRecentGrid (GridSelector &GS, const RefPtr< ValuePool > &VP, const Fiber::BundlePtr &SpaceTime=Fiber::BundlePtr(NullPtr())) const
	This is a convenience function to find the most recent grid for the current time ( Fish<Slice>() or virtual function getTime() ).

Fiber::Bundle::GridInfo_t	findMostRecentGrid (const RefPtr< ValuePool > &VP, const Fiber::BundlePtr &SpaceTime=Fiber::BundlePtr(NullPtr())) const
	Find the most recent grid for the current time ( Fish<Slice>() or virtual function getTime() ).

Fiber::Info< Fiber::Skeleton >	getRefinementLevel (int Level, const RefPtr< ValuePool > &VP, int IndexDepth=0, const Fiber::BundlePtr &SpaceTime=Fiber::BundlePtr(NullPtr())) const override
	Get an refinement level for the given spacetime based on the GridSelector as returned by getGridSelector().

bool	IterateLevelsOnMostRecentGrid (LevelIterator &LI, const RefPtr< ValuePool > &Context, const Fiber::BundlePtr &SpaceTime=Fiber::BundlePtr(NullPtr())) const
	Iterate over all the selected levels of a Grid via an instance of the LevelIterator.

RefPtr< Fiber::Field >	getField (const Fiber::FieldSelector &FS, const RefPtr< ValuePool > &VP, const Fiber::BundlePtr &SpaceTime=Fiber::BundlePtr(NullPtr()))
	Retrieve a field for the given FieldSelector on the currently selected Grid.

Public Member Functions inherited from Wizt::FloatOrigin
RefPtr< Chunk< Eagle::point3 > >	computeShiftedCoordinates (const RefPtr< Chunk< Eagle::point3 > > &RawCoordinates, const Eagle::tvector3 &TranslationVector) const

VRenderContext::ModelViewState	getCoordinateTranslation (const VRenderContext &Context, Eagle::tvector3 &TranslationVector) const

VRenderContext::ModelViewState	getCoordinateTranslation (const VRenderContext &Context, Intercube &IC, Eagle::tvector3 &TranslationVector) const

Public Member Functions inherited from Wizt::Iris
RefPtr< PointShape >	SetupPointTexture (TextureCreator &TC, double S, double Imax, double Spikes, int TextureUnit, int TextureSize=32) const

RefPtr< PointShape >	getIris (VGLRenderContext &Context, int TextureUnit) const

virtual FixedArray< float, 4 >	PSF (double x, double y, double S, double Imax, double Spikes) const
	Compute the actual shape of the intensity distribution per splat.

Static Public Member Functions
static string	setPointAttenuation (const string &ModifySizeFunction=DefaultModifySizeFunction)
	A vertex shader fragment defining a function that will set the gl_PointSize to some value suitable for splats that get smaller in distance.

Static Public Member Functions inherited from Wizt::RenderAble
static const char *	VisibilitySlotName ()

Static Public Member Functions inherited from Wizt::VObject
static bool	remove (const string &s)

static int	findOutputObjects (const type_info &Type, OutputObjectIterator &GOutputs)

static string	createChildname (const string &parent_name)

static VAcceptInfoList_t	accept (const VObjectPtr &vobj)

static RefPtr< VParameter >	findUniqueOutputObject (const type_info &Type, const RefPtr< VCreationPreferences > &VCP, bool ReallyUnique, const VObject *NotThisOne)

Static Public Member Functions inherited from Wizt::VConnectable
static bool	attachSlot (const WeakPtr< VSlot > &DestSlot, const RefPtr< VParameter > &ProvidedParam, const string &Member={})

static bool	attachSlot (const WeakPtr< VSlot > &DestSlot, const RefPtr< VSlot > &SourceSlot, const string &Member={})

static bool	detachSlot (const RefPtr< VSlot > &SourceSlot)

Static Public Member Functions inherited from Wizt::VSlotContainer< int ExpertLevel >
static const char *	AttachErrorCodeMessage (AttachErrorCode)

static bool	attachParameter (const RefPtr< VParameter > &theProvidedParam, const WeakPtr< VSlot > &theDestSlot, const string &theMember={})

Static Public Member Functions inherited from Wizt::ValueCacheable
static ValueCache &	consider (MemCore::Intercube &IC, const WeakPtr< VSlot > &VS, const RefPtr< ValuePool > &Context)

static ValueCache &	getValueCache (MemCore::Intercube &IC)

static bool	hasChangedSlots (const WeakPtrToVSlotContainer &theSlotOwner, const MemCore::Intercube &IC, const RefPtr< ValuePool > &Context)

Static Public Member Functions inherited from Wizt::VSaveable
static VSaveable &	GlobalState ()

Static Public Member Functions inherited from Wizt::VManagedDomainObject< VObject >
static bool	remove (const std::string &s)

static RefPtr< VManagedObject >	find (const string &s)

static int	iterate (VManagedObjectIterator_t VIt, int p_start=INT_MIN, int p_end=INT_MAX)

static int	size ()

static int	traverse (VManagedObjectIterator &VIt, int p_start=INT_MIN, int p_end=INT_MAX)

Static Public Member Functions inherited from Wizt::VManagedObject
static int	count ()

static VManagedObjectPtr	find (const type_info &, const std::string &s)

static bool	InitDomain (const type_info &)

static int	iterateModules (ModuleIterator &VIM)

static int	size (const type_info &)

static int	traverse (const type_info &, VManagedObjectIterator &VIt, int p_start, int p_end)

static void	UnloadVModule (const string &what, VRemoveItem &RI)

Static Public Member Functions inherited from MemCore::MutableName
static std::string	BaseName (const std::string &theName, const char Separator)

Static Public Member Functions inherited from Wizt::FloatOrigin
static VRenderContext::ModelViewState	getTranslationVector (const VRenderContext &Context, Intercube &IC, Eagle::tvector3 &TranslationVector, double CameraShiftThreshold)

static Eagle::tvector3	getTranslationVector (Intercube &IC)

Public Attributes
TypedSlot< double >	sizeFactor
	The exponential scaling factor for the size of the splats.

TypedSlot< double >	sizeOffset

TypedSlot< double >	AnimationSpeed
	Animation control.

TypedSlot< double >	MaxSize
	The maximal pixel diameter value.

TypedSlot< double >	m_ref_factor

TypedSlot< VEnum >	renderMode

TypedSlot< int >	tsStartPoint

TypedSlot< int >	tsHowManyPoints

Public Attributes inherited from Wizt::VEnvironmentRenderObject
VOutput< VCameraSetPtr >	myCameraSet

Public Attributes inherited from Wizt::RenderAble
out< double >	outRenderTimeContribution

in< bool >	Visibility

Public Attributes inherited from Wizt::VObject
	HelpURL

	HTMLText

	PlainText

	ShortHTMLText

	ShortText

string	UserInfo

Public Attributes inherited from Wizt::VSlotContainer< int ExpertLevel >
	AllLevels

	DestParameterNotFound

	InvalidDestParameter

Public Attributes inherited from Wizt::RenderNamespace
	COLORS

	COORDINATES

	LINE_LOOP

	LINE_STRIP

	LINES

	NORMALS

	POINTS

	POLYGON

	TRIANGLE_STRIP

	TRIANGLE_FAN

	TRIANGLES

	QUAD_STRIP

	QUADS

	SECONDARY_COLORS

	TEXTURE0

	TEXTURE1

	USER_DEFINED

Public Attributes inherited from Wizt::StatusIndicator
VOutput< VObjectStatus >	StatusInfo

Public Attributes inherited from Wizt::Fish< Fiber::Skeleton >
TypedSlot< int >	MinRefinementLevel

TypedSlot< int >	MaxRefinementLevel

Public Attributes inherited from Wizt::FragmentPainter
TypedSlot< FragmentSelector >	MyFragmentSelector
	The input slot for selecting fragments out of a collection of fragments.

TypedSlot< int >	MyNumOfRefFragments

TypedSlot< Options >	MyOptions

TypedSlot< double >	tsFloatOriginThreshold

Public Attributes inherited from Wizt::VertexFieldCollection
RefPtr< VertexField >	Positions
	The coordinates are a field that will always be available here.

Public Attributes inherited from Wizt::Fish< Fiber::Grid >
TypedSlot< Fiber::Grid >	MyGrid

Public Attributes inherited from Wizt::Iris
TypedSlot< double >	PointWidth

TypedSlot< double >	PointIntensity

TypedSlot< double >	PointSpikes

Static Public Attributes
static const char *	DefaultModifySizeFunction = "float modifySize(float size) { return size; }\n"

static const char	default_vertex_shader []

static const char	default_fragment_shader []
	Default fragment shader code, must derive from to get this 2D texture.

Static Public Attributes inherited from Wizt::VObject
static constexpr char	NameSeparator

static constexpr char	SlotNameSeparator

Static Public Attributes inherited from Wizt::VManagedObject
static string	CurrentLoadModule

Static Public Attributes inherited from Wizt::StatusIndicator
static const char	Slotname []

Static Public Attributes inherited from Wizt::TimeDependent
static const char *	GlobalTimePreference

Additional Inherited Members
Public Types inherited from Wizt::VertexRenderObject
typedef Fiber::GridInspector< BundleProperty::Anything >	GridInspector

typedef ClusterState	VertexRenderState

typedef ClusterState	State

Public Types inherited from Wizt::VEnvironmentRenderObject
typedef ::Eagle::PhysicalSpace::point	point

Public Types inherited from Wizt::VObject
enum	HelpType

typedef void	AcceptableInputTypes

typedef VConnectable::Empty< I >	Empty

typedef std::function< bool(const RefPtr< VObject > &vobj, const VSlot &ChildConnection)>	VObjectIterator_f

Public Types inherited from MemCore::ReferenceBase< VManagedObjectBase >
typedef Object	reference_domain_t

typedef WeakPtr< Object, Object >	SelfPtr_t

Public Types inherited from Wizt::VSlotContainer< int ExpertLevel >
enum	AttachErrorCode

typedef void	AcceptableInputTypes

typedef VSlotSet	CreationSlots_t

typedef VSlot::Empty< I >	Empty

Public Types inherited from Wizt::VSaveable
typedef std::function< bool(const string &s, VishSaver &VS)>	save_iterator

Public Types inherited from Wizt::VManagedDomainObject< VObject >
typedef What	Domain_t

Public Types inherited from Wizt::RenderNamespace
enum	GeometryInputType

enum	GeometryOutputType

enum	Primitive

enum	TextureFormat

enum	VertexAttributeTypes

typedef std::variant< int, float, double, unsigned, Eagle::FixedArray< int, 2 >, Eagle::FixedArray< float, 2 >, Eagle::FixedArray< double, 2 >, Eagle::FixedArray< int, 3 >, crd3f, Eagle::FixedArray< float, 3 >, crd3d, Eagle::FixedArray< double, 3 >, Eagle::FixedArray< int, 4 >, Eagle::FixedArray< float, 4 >, Eagle::FixedArray< double, 4 >, Eagle::Quadratic< 2, float >, Eagle::Quadratic< 3, float >, Eagle::Quadratic< 4, float >, vec3f_vector, crd3f_vector >	AnyUniform

typedef std::string	glsl

Public Types inherited from Wizt::VertexFieldCollection
enum	{ NumberOfInputFields = 1 }

Protected Types inherited from Wizt::VObject
typedef bool(*	UpdateFunction) (VObject *, VRequest &, double precision)

Protected Member Functions inherited from Wizt::RenderAble
	RenderAble (const string &name, int p, const RefPtr< VCreationPreferences > &VP)

Protected Member Functions inherited from Wizt::VObject
virtual bool	unsychronized_update (VRequest &VR, double precision)

Protected Member Functions inherited from MemCore::ReferenceBase< VManagedObjectBase >
virtual void	extremeUnction ()

ReferenceBase &	operator= (const ReferenceBase &R)

void	suicide ()

Protected Member Functions inherited from Wizt::VSlotContainer< int ExpertLevel >
virtual void	setup (const CreationSlots_t &CreationSlots)

Protected Member Functions inherited from Wizt::TimeDependent
void	TimeSetup (const VConnectable::CreationSlots_t &CreationSlots)

Protected Attributes inherited from Wizt::VObject
MemCore::Counter	UpdateCounter

MemCore::Counter	RequestCounter

Detailed Description

Base class for render object that draw a splat for each vertex of a Grid object.

Subclasses may define the way how such splats are drawn, and parameterize them based on the given input fields.

Todo:: Derive from class Programmable instead of doing same stuff here manually. Code is currently messy with VGLRenderContext and VRenderContext mixed. Also, need to replace GL_POINT_SPRITE with using billboards generated by a Geometry shader since point sprites are deprecated in OpenGL 3.

Author: Werner Benger

Constructor & Destructor Documentation

◆ SplatRenderObject()

Wizt::SplatRenderObject::SplatRenderObject	(	const string &	name,
		int	p,
		const RefPtr< VCreationPreferences > &	VP,
		double	SizeScale = `150.0`,
		int	AnimationVisibility = `5`
	)

Constructor.

Parameters

AnimationVisibility The expert level of the AnimationSpeed parameter. It sets an uniform float "fractime" in the shader program to cycle between 0.0 and 1.0 in a certain speed. If the AnimationSpeed is larger than 0.0, then the rendering will auto-update.

References MaxSize, Wizt::TypedSlot< class T >::setProperty(), and sizeFactor.

Member Function Documentation

◆ createRenderer()

RefPtr< VBO::Renderer > Wizt::SplatRenderObject::createRenderer	(	VGLRenderContext &	Context,
		const RefPtr< MemBase > &	FieldCoordinates,
		const RefPtr< FragmentSelector > &	FS
	)		const

overridevirtual

Render function: create a renderer object.

Overrides virtual function from FragmentPainter .

Reimplemented from Wizt::FragmentPainter.

◆ FragmentShaderPrefix()

string Wizt::SplatRenderObject::FragmentShaderPrefix ( VRenderContext & ) const

virtual

Predefined way to set the name of a render object.

Todo:: : This function should be removed by using the Programmable basis class. It was added here to emulate similar behaviour of the newer infrastructure.

Referenced by renderGL().

◆ help()

string Wizt::SplatRenderObject::help ( HelpType HT = HTMLText ) const

overridevirtual

Reimplemented from Wizt::VObject.

◆ renderGL()

bool Wizt::SplatRenderObject::renderGL ( VGLRenderContext & Context ) const

overridevirtual

Creates an OpenGL Shader, and finally calls renderFragments().

If a file Name().vert or Name().frag exists, then the GLGS source code within these files will be loaded instead of the intrinsic code.

Implements Wizt::VGLRenderObject.

References MemCore::FileRead(), floor(), FragmentShaderPrefix(), Wizt::VStateCreatorBase::getState(), Fiber::ElementIterator< T >::length, std::multimap< string, RefPtr< VertexField > >::max_size(), Wizt::VStateCreatorBase::myState(), MemCore::MutableName::Name(), Wizt::FragmentPainter::renderFragments(), setPointAttenuation(), and setShaderVariables().

◆ setPointAttenuation()

string Wizt::SplatRenderObject::setPointAttenuation ( const string & ModifySizeFunction = DefaultModifySizeFunction )

static

A vertex shader fragment defining a function that will set the gl_PointSize to some value suitable for splats that get smaller in distance.

Also it will let them fade out once too small. Add this code to the prefix of some vertex shader.

void main(void)
{
        gl_FrontColor.rgb = vec3(0.5,0.5,0.3);
"       gl_Position = gl_ProjectionMatrix * gl_ModelViewMatrix * gl_Vertex;

        gl_FrontColor.a = setPointAttenuation();
 }

This function will return the following GLGS code:

uniform float size;

float setPointAttenuation()
{
vec4    eyeCoord = gl_ModelViewMatrix * gl_Vertex;
float   dist = distance(eyeCoord, vec4(0.0, 0.0, 0.0, 1.0));
float   att = 1.0/dist;
float   diameter = clamp(size* att, 0.0,100.0);

float   fadeThreshold = 1.0;
float   fadePower = 1.5;
        gl_PointSize = max(diameter, fadeThreshold);
float   fade = min(diameter, fadeThreshold)/fadeThreshold;
        return pow(fade, fadePower)
}

Alternatively, the size can also be an attribute, in which case the GLSL code will look like this:

attribute float size;

Referenced by renderGL().

◆ setRendererParameters()

void Wizt::SplatRenderObject::setRendererParameters	(	VGLRenderContext &	Context,
		const RefPtr< VBO::Renderer > &	theRenderer,
		const RefPtr< CreativeArrayBase > &	VertexCoordinates,
		const RefPtr< GLProgram > &	theShaderProgram
	)		const

override

Update a renderer object, in case the fragment selector is newer.

Render function: set parameters in the renderer that don't need re-creation of the VBO

References Wizt::SplatRenderObject::Renderer::accumulative, Wizt::SplatRenderObject::Renderer::accumulative_absorption, Wizt::SplatRenderObject::Renderer::alphaclamped, Wizt::SplatRenderObject::Renderer::alphaToCoverage, and Wizt::SplatRenderObject::Renderer::depthsorted.

◆ setShaderVariables()

void Wizt::SplatRenderObject::setShaderVariables	(	VGLRenderContext &	Context,
		const RefPtr< GLProgram > &	ShaderProgram
	)		const

virtual

Virtual function to set variables in the shader program, such as parameters from the Vish inputs.

Typical code might just assign slots to uniform variables:

struct  MySplatter : SplatRenderObject
{
     TypedSlot<double>   Value;

     MySplatter(...)
     : SplatRenderObject(...)
     , Value(this, "value", 0.23)
     {}

     string vertex_shader(VRenderContext&Context) const override
     {
        return "uniform float value; ....";
     }

        void setShaderVariables(VRenderContext&Context, const RefPtr<Program>&ShaderProgram) const override
     {
        Value << Context > ShaderProgram;
     }
};

Note that the name of the slot must be equal to the name of the uniform variable in the shader program for this to work. If the names don't match, then an OpenGL error exception will be thrown.

Referenced by renderGL().

Member Data Documentation

◆ default_fragment_shader

const char Wizt::SplatRenderObject::default_fragment_shader

static

Initial value:

=
"uniform sampler2D PSFTexture;\n"
"void main (void)\n"
"{\n"
"vec4   psf  = texture2D( PSFTexture, gl_TexCoord[0].st);\n"

"       gl_FragColor.rgb = (psf*gl_Color).rgb;\n"
"       gl_FragColor.a = max(psf.r, max(psf.g, psf.b))*gl_Color.a;\n"

"}\n"

Default fragment shader code, must derive from to get this 2D texture.

uniform sampler2D PSFTexture;
void main (void)
{
vec4    psf  = texture2D( PSFTexture, gl_TexCoord[0].st);
gl_FragColor = psf*gl_Color;
}

When creating the shader program, do

And in function setRendererParameters() call

◆ default_vertex_shader

const char Wizt::SplatRenderObject::default_vertex_shader

static

Initial value:

=
"uniform vec4 SplatColor;\n"

"#ifndef        CONSIDER_TRANSLATION_VECTOR\n"
"uniform vec3 TranslationVector;\n"
"#endif\n"

"void main(void)\n"
"{\n"
"       gl_FrontColor = SplatColor;\n"

"       gl_Position = gl_ProjectionMatrix * gl_ModelViewMatrix * (gl_Vertex - vec4(TranslationVector, 0) );\n"

"       gl_FrontColor.a *= setPointAttenuation();\n"
" }\n"

       Default vertex shader code that sets point size and transparency
       attenuation for very small points. To make use of this functionality,
       the code returned by setPointAttenuation() must be included in the
       code provided by an implementation of this function, and the
       setPointAttenuation() function needs to be called in the vertex shader.
       Its return value is a transparency factor that is supposed to be used
       to attenuate the alpha value of the given colors. The default main function
       as returned by the vertex_shader function is

void main(void)
{
        gl_FrontColor.rgb = vec3(0.5,0.5,0.3);
        gl_Position = ftransform();
        gl_FrontColor.a = setPointAttenuation();
}
