A Skeleton is a set of Representation object, each of them accessed by an Representer object. More...

#include <Skeleton.hpp>

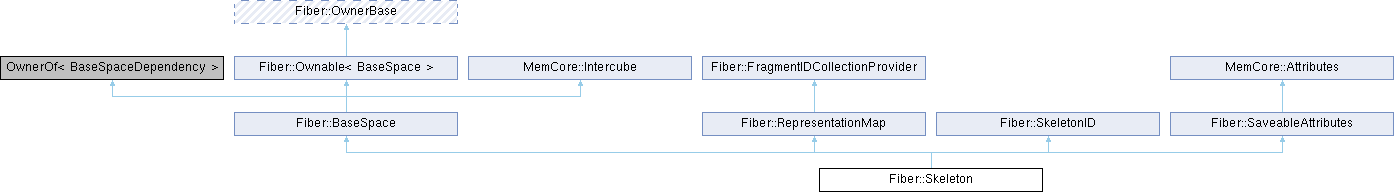

Inheritance diagram for Fiber::Skeleton:

Public Types
using	FieldIterator_t = Representation::const_iterator_t

using	SkeletonExcluder = unordered_set< size_t >
	To avoid recursion where a skeleton would inspect itself during recursive field iteration, remember the ObjectCountID of the used skeletons.

using	RepresentationFieldIterator_t = std::function< bool(const Representer &theRepresenter, const Representation &R, const FieldID &, const Field &)>

Public Types inherited from Fiber::OwnerBase
template<class ItemType >
using	Item = MemCore::InterfaceData< ItemType >
	An optional convenience class that allows to easily add arbitrary types to Intercubes .

Public Member Functions
	Skeleton ()=delete
	prevent default construction

	Skeleton (const Skeleton &)=delete
	prevent copy construction

void	operator= (const Skeleton &)=delete
	prevent copy assignment

void	clear ()

void	extremeUnction () override

Representation &	operator[] (const Representer &D)

RefPtr< Representation >	makeRepresentation (const Representer &D)

Representation &	operator[] (const BaseSpace &D)

int	Dims () const override
	The topological dimensionality of this Skeleton.

RefPtr< Field >	createIndirectedField (const Representer &WantRep, const RefPtr< Field > &RelativeIndices, const string &FieldName, const RefPtr< Field > &SourceField, const RefPtr< Field > &SourcePositions)

RefPtr< Field >	getField (const Representer &R, const RefPtr< FieldID > &Fid, const RefPtr< Atlas > &myAtlas=nullptr, const RepresenterList_t &SkipRepresenters={})
	Get a field relative to the specified representer.

RefPtr< Field >	getField (const Representer &R, const std::string &FieldName, const RefPtr< Atlas > &myAtlas=nullptr, const RepresenterList_t &SkipRepresenters={})
	Get a field relative to the specified representer.

RefPtr< Field >	getPositions (const Representer &R)
	Get the positions field in the given representation.

std::string	xml () const override

std::string	Name () const override

unsigned	iterate_fields (const FieldIterator_t &F, SkeletonExcluder &SE) const

unsigned	iterate_fields (const FieldIterator_t &F) const
	Iterate over all fields on all Representations of this Skeleton.

unsigned	iterate_fields (const RepresentationFieldIterator_t &F, SkeletonExcluder &SE) const

unsigned	iterate_fields (const RepresentationFieldIterator_t &F) const
	Iterate over all fields on all Representations of this Skeleton, also providing information on the Representation and Representer (e.g.

template<is_field_identifier... FieldIdentifiers>
auto	getFields (const Representer &R, FieldIdentifiers... theFieldIdentifiers)
	Get a number of fields at once from a Skeleton and a Representer such as a chart object:

template<is_field_identifier... FieldIdentifiers>
auto	getFieldFragmentCreators (const Representer &R, const RefPtr< FragmentID > &fID, FieldIdentifiers... theFieldIdentifiers)
	Get a set of array creators at once from a Skeleton and a Representer such as a chart object, all for the same fragment as specified by the fragment ID (which is a nullptr for an unfragmented field):

int	size () const
	Return the number of representations available here.

int	iterate (ConstIterator &) const
	Inspect all elements of this map.

int	iterate (Iterator &)
	Iterate over all elements of this map.

int	iterate (const std::function< bool(const Representer &, const Representation &)> &F) const
	Immutable iteration via std::function.

int	iterate (const std::function< bool(const Representer &, Representation &)> &F)
	Mutable iteration via std::function.

RefPtr< FragmentIDCollection >	getFragmentIDCollection () const override
	Get the FragmentIDCollection that is responsible for all fields of this Representation.

Public Member Functions inherited from Fiber::BaseSpace
void	addDependency (const MemCore::WeakPtr< BaseSpaceDependency > &)
	Add an object that will be dependent on the existence of this base space.

	BaseSpace ()
	Constructor.

virtual	~BaseSpace ()
	Virtual destructor.

Public Member Functions inherited from Fiber::Ownable< BaseSpace >
void	x_updateOwnershipAge (const MemCore::Ageable &theNewAge) override
	Forward some age to all Owners.

void	insertOwner (const Container &theOwner)
	Add some owner.

bool	insertOwner (const MemCore::WeakPtr< Container > &theOwner)
	Add some owner.

void	addOwner (const Container &theOwner, const MemCore::Ageable &theNewAge)
	Add some owner and broadcast a new age to all Ownerrs.

void	addOwner (const MemCore::WeakPtr< Container > &theOwner, const MemCore::Ageable &theNewAge)
	Add some owner and broadcast a new age to all Ownerrs.

	Ownable ()
	Default constructor, empty Ownership list.

	Ownable (const Ownable &)
	Copy constructor, does NOT copy any ownership information, the new Ownable will be unowned.

	Ownable (const MemCore::WeakPtr< Container > &theOwner, const MemCore::Ageable &theNewAge)
	Construct an Ownable with an initial owner.

	Ownable (const Container &theOwner, const MemCore::Ageable &theNewAge)
	Construct an Ownable with an initial owner.

Ownable &	operator= (const Ownable &)
	Assignment, does NOT copy any ownership information, the assigned Ownable will retain all its ownership information.

MemCore::WeakPtr< Container >	getPrimaryOwner () const
	Get the first valid owner.

size_t	getNumberOfValidOwners () const
	Get the first valid owner.

bool	processOwnership (MemCore::Intercube &Output, const MemCore::Intercube &Input) const override
	Process some ownership action.

Public Member Functions inherited from Fiber::OwnerBase
bool	processOwnership (MemCore::Intercube &OutputAndInput) const
	Process ownership where the input information is shared with the output information in the same Intercube.

Public Member Functions inherited from MemCore::Intercube
void	addInterface (const RefPtr< InterfaceBase > &I) const

void	addInterfaceData (const Data &D)

void	addInterfaceData (const Data &D)

void	clearInterfaces ()

bool	const_iterateInterfaces (const RefPtr< InterfaceIterationParameter > &IIP) const

virtual RefPtr< InterfaceBase >	createInterface (const type_info &) const

RefPtr< InterfaceBase >	findInterface (const type_info &t) const

RefPtr< InterfaceBase >	getInterface (const type_info &t)

std::string	getInterfaceNames (const char delim=';') const

bool	gotNewInterfaceData (const Data &D)

bool	gotNewInterfaceData (mutex &M, const Data &D)

bool	gotNewInterfaceData (mutex &M, const Data &D)

bool	gotNewInterfaceData (mutex &M, const Data &D, const Selector &S)

bool	gotNewInterfaceData (mutex &M, const Data &D, const Selector *S)

bool	hasChangedInterfaceData (const Data &D) const

bool	hasChangedInterfaceData (const Data &D) const

bool	hasChangedInterfaceData (const Data &D, const Selector &) const

bool	hasChangedInterfaceData (const Data &D, const Selector *) const

bool	hasInterface (const type_info &t) const

bool	iterateInterfaces (const RefPtr< InterfaceIterationParameter > &IIP)

void	printInterfaces () const

void	registerInterface (const type_info &t)

void	removeInterface ()

void	removeInterfaceBase (const type_info &InterfaceBaseID)

Public Member Functions inherited from Fiber::RepresentationMap
void	clear ()

RefPtrRepresentation_t	makeRepresentation (const Representer &D)

Representation &	operator[] (const Representer &D)
	Retrieve (and possibly create) a Representation.

Representation &	operator[] (const BaseSpace &D)

RefPtrRepresentation_t	findRepresentation (const Representer &D) const
	Query a representation.

RefPtrRepresentation_t	findRepresentation (const BaseSpace &D)

RefPtrRepresentation_t	operator() (const Representer &D) const
	Use operator () to query a representation.

RefPtrRepresentation_t	operator() (const BaseSpace &D)

int	DataRank () const

RefPtr< SizeInterface >	getSize () const
	Get the data dimensionality of this Skeleton, which is taken from the positions field of the first representation, whatever it is.

RefPtr< SizeInterface >	getFragmentSize (const RefPtr< FragmentID > &Fid) const

int	size () const
	Return the number of representations available here.

int	getNumberOfRepresentations () const
	Return the number of representations available here.

std::tuple< Representer, RefPtrRepresentation_t, RefPtr< FragmentIDCollection > >	getFragmentIDCollectionRepresentation () const

RefPtr< FragmentID >	findFragmentIDByName (const std::string &FragmentName) const

DynamicSize	getFragmentLayout () const

int	iterate (ConstIterator &) const
	Inspect all elements of this map.

int	iterate (Iterator &)
	Iterate over all elements of this map.

int	iterate (const std::function< bool(const Representer &, const Representation &)> &F) const
	Immutable iteration via std::function.

int	iterate (const std::function< bool(const Representer &, Representation &)> &F)
	Mutable iteration via std::function.

template<class Functor >
int	iterate_representations (const Functor &F) const

template<class Functor >
int	iterate_all (const Functor &F) const

int	getMemoryUsage (memsize_t &UsedMemory, memsize_t &WantedMemory) const
	Get memory usage.

void	Speak (int indent=0, int maxindent=-1) const
	Informative debug message.

string	xml () const

Public Member Functions inherited from Fiber::SkeletonID
	SkeletonID (int dimension, int index_depth=0)
	Constructor via dimensionality and index depth.

	SkeletonID (const std::nullptr_t &)

	SkeletonID (const DynamicSize &theDomainSize, int IndexDepth, const DynamicSize &theRefinementSize)

	SkeletonID (const SkeletonID &Sid, int index_depth_increment)
	Construct a skeleton ID with the same properties but its index depth incremented by a certain amount.

	~SkeletonID ()
	Destructor.

const SkeletonID &	ID () const
	Shortcut to ease type conversion in child classes.

bool	operator< (const SkeletonID &S) const
	Ordering operator, mostly used for stl::map.

int	IndexDepth () const
	Index depth of this skeleton.

const DynamicSize &	DomainSize () const

const DynamicSize &	Size () const

const DynamicSize &	RefinementSize () const

const DynamicSize &	getRefinementSize () const

template<class T >
DynamicSize &	setSize (int N, const T values[])

template<class T >
DynamicSize &	setRefinementSize (int N, const T values[])

template<int N>
auto	setSize (const MultiIndex< N > &I)

template<int N>
DynamicSize &	setRefinementSize (const MultiIndex< N > &I)

int	Dims () const
	Dimensionality of this skeleton.

int	getRank () const
	Dimensionality of this skeleton.

bool	hasCompatibleHigherDims (const DynamicSize &DS) const

int	NumberOfRefinementLevels () const
	Number of available refinement levels This usually matches Dims, but in case of Dims=0 also allows a refinement level.

index_t	Refinement (unsigned int i) const

bool	isIsotropicRefinementFactor (index_t F) const
	Check if the given skeleton ID corresponds to a refinement by factor F in all dimensions.

index_t	getHomogeneousLevel () const
	IF this skeleton ID refers to a refinement level that is same in all dimensions, return that single integer.

index_t	getTotalRefinement () const

unsigned	getDomainSize (unsigned i) const

bool	setSize (unsigned i, index_t extension)

template<int N>
bool	setSize (MultiIndex< N > &MI) const

bool	setSize (const DynamicSize &DS) const

const DynamicSize &	setRefinementSize (const DynamicSize &DS)

bool	setRefinement (unsigned i, index_t extension)

void	setIsotropicRefinement (index_t ref_level)
	Set the same refinement level in all dimensions of the skeleton dimensionality.

bool	hasRefinement ()

std::string	Name () const
	Create a textual representation of the inherent parameters of the Skeleton ID.

bool	operator! () const
	check for mere validity of this SkeletonID

	operator bool () const
	check for validity of this SkeletonID

Public Member Functions inherited from Fiber::SaveableAttributes
void	attributesHaveBeenSaved () const

bool	attributesNeedSaving () const

Public Member Functions inherited from MemCore::Attributes
MemCore::RefPtr< MemCore::ChunkBase >	getAttribute (const std::string &name) const

const Ageable &	getAttributeAge () const

std::pair< bool, T >	getAttributeValue (const string &AttributeName, size_t ElementNumber=0) const

attributes_t &	getAttributeValues ()

const attributes_t &	getAttributeValues () const

size_t	getNumberOfAttributes () const

bool	hasAttribute (const std::string &name) const

int	Iterate (const Functor &L) const

int	iterate (Iterator &it) const

int	iterate_attributes (const Functor &L) const

size_t	NumberOfAttributes () const

void	setAttribute (const std::string &name, const MemCore::RefPtr< MemCore::ChunkBase > &AttribData)

ResizableChunk< T > &	setAttributeValue (const std::string &name, const T &AttribData)

ResizableChunk< T > &	setAttributeValues (const std::string &name, const std::initializer_list< T > &AttribData)

const T &	setValue (const T &AttribData, const std::string &name)

const T &	setValue (const T &AttribData, const std::string &name, const std::string &Comment, const std::string &CommentPrefix="Comment")

string	toString () const

const Ageable &	touchAttributes () const

const Ageable &	updateAttributeAge (const Ageable &A) const

Protected Types
using	RepresenterList_t = std::unordered_set< Representer >

Protected Member Functions
	~Skeleton ()
	Destructor.

RefPtr< Field >	getFieldRecursion (const Representer &R, const string &FieldName, const RefPtr< Atlas > &myAtlas, RepresenterList_t &SkipRepresenters)

template<is_field_identifier firstFieldIdentifier_t, is_field_identifier... FieldIdentifiers>
void	getFieldsRecursion (const Representer &R, RefPtr< Field > *Rit, firstFieldIdentifier_t firstFieldIdentifier, FieldIdentifiers... theFieldIdentifiers)

Friends
class	SkeletonMap

std::string	to_string (const Skeleton &)

Related Symbols
(Note that these are not member symbols.)
using	pSkeleton = RefPtr< Skeleton >
	Shortcut for a strong pointer to a Skeleton object.

typedef WeakPtr< Skeleton >	wSkeleton
	Shortcut for a weak pointer to a Skeleton object.

Additional Inherited Members
Static Public Member Functions inherited from Fiber::SkeletonID
static SkeletonID	nextRefinement (const SkeletonID &Sid, int refinement_increment)
	Create a SkeletonID that is refined by a certain increment.

static SkeletonID	refinedSkeleton (const SkeletonID &Sid, int refinement_value)
	Create a SkeletonID that is refined by a certain value.

Public Attributes inherited from Fiber::Ownable< BaseSpace >
std::unordered_set< MemCore::WeakPtr< Container > >	Owners
	The (internal) list of owners.

Public Attributes inherited from Fiber::SaveableAttributes
MemCore::Ageable	LastSavedAttributes

Detailed Description

A Skeleton is a set of Representation object, each of them accessed by an Representer object.

It defines the Skeleton Space of a discretized Grid. Allows to store sets as mappings from Domain objects to corresponding Representations of the underlying discretized space.

Note, that Skeleton inherits all operators and functions to create and access Representations from the RepresentationMap!

// e.g.: create cartesian vertex representation:
// note that there are convenience function for that in Grid

Grid      &G = ...;
SkeletonID vertices_id(0,1);
Skeleton&  vertices = G[ vertices_id ];

RefPtr< Chart > cartesian = grid->makeCartesianChart();
Representation& vertices_as_cartesian = vertices[ *cartesian ];

// e.g.: create a relative vertex selection representation using a skeleton instead of a chart:

SkeletonID vertex_selection_id(0,3);
Skeleton&  vertex_selection = (*grid)[ vertex_selection_id ];

RefPtr< Skeleton > vertices = grid->findVertices();

// relative
Representation& vertex_selection_as_vertices = vertex_selection[ vertices ];

Skeleton objects can be created only through a SkeletonMap, the base class of a Grid object.

Examples: Sphere.cpp, XF_LineSetFragmented.cpp, XF_LineSetHierarchical.cpp, XF_LineSetHierarchicalRegularized.cpp, and trimesh.cpp.

Member Function Documentation

◆ createIndirectedField()

RefPtr< Field > Fiber::Skeleton::createIndirectedField	(	const Representer &	WantRep,
		const RefPtr< Field > &	RelativeIndices,
		const string &	FieldName,
		const RefPtr< Field > &	SourceField,
		const RefPtr< Field > &	SourcePositions
	)

Parameters

SourcePositions The Positions field from the same representation where the SourceField came from.

References Fiber::pullData().

◆ Dims()

int Fiber::Skeleton::Dims ( ) const

overridevirtual

The topological dimensionality of this Skeleton.

Implements Fiber::BaseSpace.

Referenced by Fiber::ShapefileSaver::apply_const(), and Fiber::FragmentTopology::findHighestDimensionalRepresentation().

◆ getField() [1/2]

RefPtr< Field > Fiber::Skeleton::getField	(	const Representer &	R,
		const RefPtr< FieldID > &	Fid,
		const RefPtr< Atlas > &	myAtlas = `nullptr`,
		const RepresenterList_t &	SkipRepresenters = `{}`
	)

Get a field relative to the specified representer.

This function might involve some coordinate transformation or re-indexing if the queried field does not yet exist relative to the given representer.

Parameters

R	The identifier of the representation in which the field is requested. For instance, this may be a chart object (a coordinate system).
Fid	A field identifier, it must match exactly.

References Fiber::Representation::findField().

◆ getField() [2/2]

RefPtr< Field > Fiber::Skeleton::getField	(	const Representer &	R,
		const std::string &	FieldName,
		const RefPtr< Atlas > &	myAtlas = `nullptr`,
		const RepresenterList_t &	SkipRepresenters = `{}`
	)

Get a field relative to the specified representer.

This function might involve some coordinate transformation or re-indexing if the queried field does not yet exist relative to the given representer.

Parameters

R	The identifier of the representation in which the field is requested. For instance, this may be a chart object (a coordinate system). Given a ChartID, a Chart object, suitable as Representer, can be retrieved from a Grid object.
Fid	A field identifier, it is sufficient if the name matches.

◆ getFieldFragmentCreators()

template<is_field_identifier... FieldIdentifiers>

auto Fiber::Skeleton::getFieldFragmentCreators	(	const Representer &	R,
		const RefPtr< FragmentID > &	fID,
		FieldIdentifiers...	theFieldIdentifiers
	)

inline

Get a set of array creators at once from a Skeleton and a Representer such as a chart object, all for the same fragment as specified by the fragment ID (which is a nullptr for an unfragmented field):

Skeleton&that;
RefPtr< Chart > cartesianChart;
RefPtr<FragmentID> fID;
const auto&[alphaC,betaC,gammaC] = that.getFieldFragmentCreators(cartesianChart;, fID, "alpha", "beta", "gamma");

See also: getFields()

◆ getFields()

template<is_field_identifier... FieldIdentifiers>

auto Fiber::Skeleton::getFields	(	const Representer &	R,
		FieldIdentifiers...	theFieldIdentifiers
	)

inline

Get a number of fields at once from a Skeleton and a Representer such as a chart object:

Skeleton&that;
RefPtr< Chart > cartesianChart;
auto    F = that.getFields(that,cartesianChart, "alpha", "beta", "gamma");
const auto&[alpha,beta,gamma] = that.getFields(R, "alpha", "beta", "gamma");

See also: getFieldFragmentCreators()

◆ getFragmentIDCollection()

RefPtr< FragmentIDCollection > Fiber::RepresentationMap::getFragmentIDCollection ( ) const

overridevirtual

Get the FragmentIDCollection that is responsible for all fields of this Representation.

This will be the FragmentIDCollection of the first Representation that has one.

Reimplemented from Fiber::RepresentationMap.

◆ getPositions()

RefPtr< Field > Fiber::Skeleton::getPositions ( const Representer & R )

inline

Get the positions field in the given representation.

This function simply calls getField() with FieldName=FIBER_POSITIONS.

◆ iterate_fields() [1/2]

unsigned Fiber::Skeleton::iterate_fields ( const FieldIterator_t & F ) const

inline

Iterate over all fields on all Representations of this Skeleton.

Note that the same field may appear multiple times - this function does NOT perform any uniqueness checks, such must be done in the FieldIterator itself.

◆ iterate_fields() [2/2]

unsigned Fiber::Skeleton::iterate_fields ( const RepresentationFieldIterator_t & F ) const

inline

Iterate over all fields on all Representations of this Skeleton, also providing information on the Representation and Representer (e.g.

a chart).

◆ Name()

std::string Fiber::Skeleton::Name ( ) const

inlineoverridevirtual

Implements Fiber::BaseSpace.

◆ xml()

string Fiber::Skeleton::xml ( ) const

overridevirtual

Implements Fiber::BaseSpace.

Public Types

Public Member Functions

Protected Types

Protected Member Functions

Friends

Related Symbols

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ createIndirectedField()

◆ Dims()

◆ getField() [1/2]

◆ getField() [2/2]

◆ getFieldFragmentCreators()

◆ getFields()

◆ getFragmentIDCollection()

◆ getPositions()

◆ iterate_fields() [1/2]

◆ iterate_fields() [2/2]

◆ Name()

◆ xml()
