A VertexField is a (abstract) gateway from RAM to GPU memory. More...

#include <VertexField.hpp>

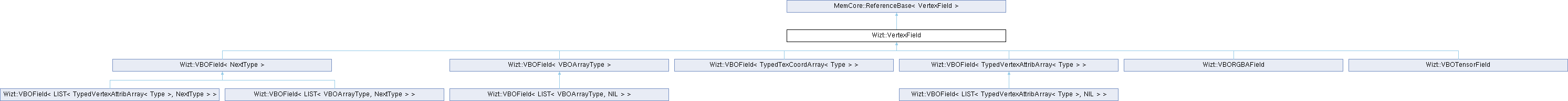

Inheritance diagram for Wizt::VertexField:

Classes
struct	Error
	Exception class. More...

Public Member Functions
	VertexField (VObject *what, const string &fieldname, bool ConvertToElements=true, int expertLevel=0)
	Constructor.
	~VertexField ()
	Destructor.
virtual RefPtr< BufferArray >	createVBOArray (const RefPtr< Fiber::MemBase > &MB, const string &arrayname, const RefPtr< GLProgram > &Shader, const Fiber::MemBase::Creator_t &theCreator) const =0
	Virtual function to create a vertex array from a given memory array.
bool	append (VBO &myVBO, const RefPtr< Fiber::CreativeArrayBase > &CAb, const string &arrayname, const RefPtr< GLProgram > &Shader) const
	Loading a given dataset as provided by the creator into a vertex array and append it to the given vertex buffer object.
virtual bool	isOlderThan (const Ageable &A, const RefPtr< ValuePool > &Context) const
	Check if the parameters associated with this field are older than the given age.
virtual void	updateAge (Ageable &A, const RefPtr< ValuePool > &Context) const
	Update the given age object with the age of the current field parameters.
Public Member Functions inherited from MemCore::ReferenceBase< VertexField >
auto	getObjectCountID () const noexcept
bool	isIdentical (const WeakPtr< Object, Object > &PossibleSelf) const noexcept
void	mkAutoDestructive ()
refcount_t	refcount () const noexcept
	ReferenceBase (Object *that) noexcept
const auto &	self () const
refcount_t	wrefcount () const noexcept

Public Attributes
TypedSlot< Fiber::Field >	MyField
const bool	ConvertToElements = false
	A flag telling whether the elements of memory arrays shall be converted into temporary explicit arrays, for the sake of loading into vertex arrays.

Additional Inherited Members
Public Types inherited from MemCore::ReferenceBase< VertexField >
typedef Object	reference_domain_t
typedef WeakPtr< Object, Object >	SelfPtr_t
Protected Member Functions inherited from MemCore::ReferenceBase< VertexField >
virtual void	extremeUnction ()
ReferenceBase &	operator= (const ReferenceBase &R)
void	suicide ()

Detailed Description

A VertexField is a (abstract) gateway from RAM to GPU memory.

It takes a data array in RAM (provided by the base class Fiber::MemBase) and transforms it into an OpenGL Buffer Array, e.g. to be used as a vertex attribute for some Shader program. It does so via the virtual function

virtual RefPtr<BufferArray> VertexField::createVBOArray(const RefPtr<MemBase>&MB);

Wizt::VertexField::createVBOArray

virtual RefPtr< BufferArray > createVBOArray(const RefPtr< Fiber::MemBase > &MB, const string &arrayname, const RefPtr< GLProgram > &Shader, const Fiber::MemBase::Creator_t &theCreator) const =0

Virtual function to create a vertex array from a given memory array.

Eagle::RefPtr

StrongPtr< Object, ObjectBase > RefPtr

which is implemented in child classes for the specific types that are to be transferred from CPU to GPU.

The member function VertexField::append() is then to be used in the rendering routine to add a certain vertex field to a vertex buffer object (VBO) for rendering.

Note that class VertexField does not deal with Fiber::Fields itself, but it provides a slot connecting to such. The class FragmentPainter provides the iterators to transform the various fragments of a Field into a sequence of VBO's, each with a collection of appropriate VertexField's attached. Be aware that a single Field may well consist of many fragments, and therefore be loaded as many BufferArray's through the same VertexField.

Constructor & Destructor Documentation

◆ VertexField()

Wizt::VertexField::VertexField	(	VObject *	what,
		const string &	fieldname,
		bool	ConvertToElements = true,
		int	expertLevel = 0 )

Constructor.

Parameters

what	The VObject which will host all the field inputs.
fieldname	The name under which the Field input slot will appear.
ConvertToElements	A flag telling whether procedural fields shall be converted to elements; this depends on the rendering method whether procedural fields are supported here or not. A derived class must decide in its constructor whether this is the case and set this flag accordingly.
expertLevel	The expert level of the Field input slot.

References MemCore::ReferenceBase< VertexField >::ReferenceBase(), VertexField(), and ConvertToElements.

Referenced by VertexField().

Member Function Documentation

◆ append()

bool Wizt::VertexField::append	(	VBO &	myVBO,
		const RefPtr< Fiber::CreativeArrayBase > &	CAb,
		const string &	arrayname,
		const RefPtr< GLProgram > &	Shader ) const

Loading a given dataset as provided by the creator into a vertex array and append it to the given vertex buffer object.

This function must be called within a valid OpenGL Context.

References Wizt::VBO::append(), createVBOArray(), Wizt::VActionNotifier::getNewProgressID(), MemCore::DynPtr< class Object, class ObjectBase >::getType(), Eagle::norm2(), Wizt::VActionNotifier::ProgressInfo(), std::vector< typename _Tp, typename _Alloc >::size(), Wizt::VBO::TranslationVector, and MemCore::Typename().

Referenced by createVBOArray().

◆ createVBOArray()

virtual RefPtr< BufferArray > Wizt::VertexField::createVBOArray	(	const RefPtr< Fiber::MemBase > &	MB,
		const string &	arrayname,
		const RefPtr< GLProgram > &	Shader,
		const Fiber::MemBase::Creator_t &	theCreator ) const

pure virtual

Virtual function to create a vertex array from a given memory array.

This function must be called within a valid OpenGL Context.

Implemented in Wizt::VBOField< VBOArrayType >, Wizt::VBOField< LIST< TypedVertexAttribArray< Type >, NextType > >, Wizt::VBOField< LIST< TypedVertexAttribArray< Type >, NIL > >, Wizt::VBOField< LIST< VBOArrayType, NextType > >, Wizt::VBOField< LIST< VBOArrayType, NIL > >, Wizt::VBOField< NextType >, Wizt::VBOField< TypedTexCoordArray< Type > >, Wizt::VBOField< TypedVertexAttribArray< Type > >, Wizt::VBORGBAField, and Wizt::VBOTensorField.

References append(), isOlderThan(), and updateAge().

Referenced by append().

◆ isOlderThan()

bool Wizt::VertexField::isOlderThan	(	const Ageable &	A,
		const RefPtr< ValuePool > &	Context ) const

virtual

Check if the parameters associated with this field are older than the given age.

If nothing has changed, return true, which is the default. Returning false here will trigger some action like reloading and/or recomputing data, which might be expensive.

Referenced by createVBOArray().

Member Data Documentation

◆ ConvertToElements

const bool Wizt::VertexField::ConvertToElements = false

A flag telling whether the elements of memory arrays shall be converted into temporary explicit arrays, for the sake of loading into vertex arrays.

This is significantly slower but makes the rendering code easier because it does not need to deal with multiple cases of procedural arrays.
