Fiber::Slice Class Reference

Information per time slice, mainly a set of Grid objects that are accessed via GridID objects. More...

#include <Slice.hpp>

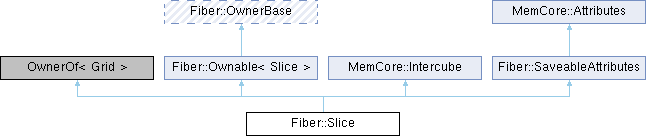

Inheritance diagram for Fiber::Slice:

Classes
class	Loader
	An loader object that may be associated with each Slice, such that data can created on access. More...

Public Types
enum	LoaderPriority { HDF5 , COMPUTED_GRID }
	Enums specifying the priority for various loaders.
typedef map< RefPtr< GridID >, RefPtr< Grid > >	grids_t
typedef std::multimap< LoaderPriority, RefPtr< Loader > >	DeferredLoader_t
typedef GridIterator	Iterator
Public Types inherited from Fiber::OwnerBase
template<class ItemType >
using	Item = MemCore::InterfaceData< ItemType >
	An optional convenience class that allows to easily add arbitrary types to Intercubes .

Public Member Functions
auto	getNumberOfGrids () const noexcept
RefPtr< GridList >	getIDList () const
bool	accessSlice () const
	Access a slice and loads its data, if they are not loaded yet.
bool	isNotYetLoaded () const
bool	isLoaded () const
	Slice (const OwnerOf< Slice > &SliceOwner, const RefPtr< GlobalCharts > &Atlas)
	Construct Slice object.
	~Slice ()
	Destruct Slice object.
void	extremeUnction () override
Grid &	newGrid (const string &gridname)
	Create a new Grid object, overwriting an existing one.
Grid &	newGrid (const string &gridname, const string &ParentGridName)
	Create a new Grid object as a child relationship to an existing one, overwriting an existing one.
bool	insert (const string &gridname, const RefPtr< Grid > &G)
	Insert a Grid object under the given name in this slice, eventually overwriting an existing Grid.
Grid &	operator[] (const string &gridname)
	Retrieve a grid from a textual description, creating one, if desired.
Grid &	operator[] (const RefPtr< GridID > &gridname)
	Retrieve an existing grid, possibly creating one.
RefPtr< GridID >	makeGridID (const string &gridname)
	Get a Grid for the given textual description.
RefPtr< GridID >	findGridID (const string &gridname)
	Find a grid ID for a given string.
RefPtr< Grid >	operator() (const string &gridname)
	Find a Grid object from its textual description.
grids_t::value_type	getUniqueGrid ()
RefPtr< Grid >	operator() (const RefPtr< GridID > &gridname)
	Find a grid via a grid identifier.
int	iterate (GridIterator &GI, const RefPtr< MemCore::StringList > &TheseGridsOnly=NullPtr())
	Iterate over all or a subset of grids on this slice.
template<class Functor >
int	iterate_grids (const Functor &F) const
int	getMemoryUsage (memsize_t &UsedMemory, memsize_t &WantedMemory) const
	Memory usage.
string	xml () const
Public Member Functions inherited from Fiber::Ownable< Slice >
void	x_updateOwnershipAge (const MemCore::Ageable &theNewAge) override
	Forward some age to all Owners.
void	insertOwner (const Container &theOwner)
	Add some owner.
bool	insertOwner (const MemCore::WeakPtr< Container > &theOwner)
	Add some owner.
void	addOwner (const Container &theOwner, const MemCore::Ageable &theNewAge)
	Add some owner and broadcast a new age to all Ownerrs.
void	addOwner (const MemCore::WeakPtr< Container > &theOwner, const MemCore::Ageable &theNewAge)
	Add some owner and broadcast a new age to all Ownerrs.
	Ownable ()
	Default constructor, empty Ownership list.
	Ownable (const Ownable &)
	Copy constructor, does NOT copy any ownership information, the new Ownable will be unowned.
	Ownable (const MemCore::WeakPtr< Container > &theOwner, const MemCore::Ageable &theNewAge)
	Construct an Ownable with an initial owner.
	Ownable (const Container &theOwner, const MemCore::Ageable &theNewAge)
	Construct an Ownable with an initial owner.
Ownable &	operator= (const Ownable &)
	Assignment, does NOT copy any ownership information, the assigned Ownable will retain all its ownership information.
MemCore::WeakPtr< Container >	getPrimaryOwner () const
	Get the first valid owner.
size_t	getNumberOfValidOwners () const
	Get the first valid owner.
bool	processOwnership (MemCore::Intercube &Output, const MemCore::Intercube &Input) const override
	Process some ownership action.
Public Member Functions inherited from Fiber::OwnerBase
bool	processOwnership (MemCore::Intercube &OutputAndInput) const
	Process ownership where the input information is shared with the output information in the same Intercube.
Public Member Functions inherited from MemCore::Intercube
void	addInterface (const RefPtr< InterfaceBase > &I) const
void	addInterfaceData (const Data &D)
void	addInterfaceData (const Data &D)
void	clearInterfaces ()
bool	const_iterateInterfaces (const RefPtr< InterfaceIterationParameter > &IIP) const
virtual RefPtr< InterfaceBase >	createInterface (const type_info &) const
RefPtr< InterfaceBase >	findInterface (const type_info &t) const
RefPtr< InterfaceBase >	getInterface (const type_info &t)
std::string	getInterfaceNames (const char delim=';') const
bool	gotNewInterfaceData (const Data &D)
bool	gotNewInterfaceData (mutex &M, const Data &D)
bool	gotNewInterfaceData (mutex &M, const Data &D)
bool	gotNewInterfaceData (mutex &M, const Data &D, const Selector &S)
bool	gotNewInterfaceData (mutex &M, const Data &D, const Selector *S)
bool	hasChangedInterfaceData (const Data &D) const
bool	hasChangedInterfaceData (const Data &D) const
bool	hasChangedInterfaceData (const Data &D, const Selector &) const
bool	hasChangedInterfaceData (const Data &D, const Selector *) const
bool	hasInterface (const type_info &t) const
bool	iterateInterfaces (const RefPtr< InterfaceIterationParameter > &IIP)
void	printInterfaces () const
void	registerInterface (const type_info &t)
void	removeInterface ()
void	removeInterfaceBase (const type_info &InterfaceBaseID)
Public Member Functions inherited from Fiber::SaveableAttributes
void	attributesHaveBeenSaved () const
bool	attributesNeedSaving () const
Public Member Functions inherited from MemCore::Attributes
MemCore::RefPtr< MemCore::ChunkBase >	getAttribute (const std::string &name) const
const Ageable &	getAttributeAge () const
std::pair< bool, T >	getAttributeValue (const string &AttributeName, size_t ElementNumber=0) const
attributes_t &	getAttributeValues ()
const attributes_t &	getAttributeValues () const
size_t	getNumberOfAttributes () const
bool	hasAttribute (const std::string &name) const
int	Iterate (const Functor &L) const
int	iterate (Iterator &it) const
int	iterate_attributes (const Functor &L) const
size_t	NumberOfAttributes () const
void	setAttribute (const std::string &name, const MemCore::RefPtr< MemCore::ChunkBase > &AttribData)
ResizableChunk< T > &	setAttributeValue (const std::string &name, const T &AttribData)
ResizableChunk< T > &	setAttributeValues (const std::string &name, const std::initializer_list< T > &AttribData)
const T &	setValue (const T &AttribData, const std::string &name)
const T &	setValue (const T &AttribData, const std::string &name, const std::string &Comment, const std::string &CommentPrefix="Comment")
string	toString () const
const Ageable &	touchAttributes () const
const Ageable &	updateAttributeAge (const Ageable &A) const

Public Attributes
DeferredLoader_t	DeferredLoader
	An optionally associated loader map.
Public Attributes inherited from Fiber::Ownable< Slice >
std::unordered_set< MemCore::WeakPtr< Container > >	Owners
	The (internal) list of owners.
Public Attributes inherited from Fiber::SaveableAttributes
MemCore::Ageable	LastSavedAttributes

Detailed Description

Information per time slice, mainly a set of Grid objects that are accessed via GridID objects.

A slice in the fiber bundle data model hierarchy.

Examples

trimesh.cpp.

Member Function Documentation

iterate()

int Fiber::Slice::iterate	(	GridIterator &	GI,
		const RefPtr< MemCore::StringList > &	TheseGridsOnly = NullPtr()
	)

Iterate over all or a subset of grids on this slice.

Note

Even when iterating just over a subset of grids, inter-grid information will still be visible, such as a relative representation of one Grid in another Grid (known as interpolation weights).

References accessSlice(), Fiber::GridIterator::apply(), std::map< typename _Key, typename _Tp, typename _Compare, typename _Alloc >::begin(), and std::map< typename _Key, typename _Tp, typename _Compare, typename _Alloc >::end().

iterate_grids()

template<class Functor >

int Fiber::Slice::iterate_grids ( const Functor &  F ) const

inline

       Lambda iterator for bundles, provides Slices:

@eode iterate_grids( [](const GridID&GId, const Grid&G) { Verbose(0) << " Grid " << GId.Name(); return true; } );

Referenced by Fiber::ShapefileSaver::apply_const().

newGrid()

Grid & Fiber::Slice::newGrid	(	const string &	gridname,
		const string &	ParentGridName
	)

Create a new Grid object as a child relationship to an existing one, overwriting an existing one.

Note

The grid relationship will be global, independently of the specific Grid object created at this certain time slice.

References accessSlice(), findGridID(), and makeGridID().

operator[]()

Grid & Fiber::Slice::operator[]

(

const string &

gridname

)

Retrieve a grid from a textual description, creating one, if desired.

A GridID is reused or created.

Note

Use the newGrid() functor to create a new grid, thereby replacing an old one existing under the same name.

References accessSlice(), and makeGridID().

Member Data Documentation

DeferredLoader

DeferredLoader_t Fiber::Slice::DeferredLoader

mutable

An optionally associated loader map.

The integer part contains the priority of the loaders and the Loaders contains the references to the loader objects. Priorities are like the nice value, lower the value higher the priority. If it's size is not zero, it will be called upon each slice access.

Referenced by accessSlice().
