Wizt::FragmentPainter Struct Reference

A helper class that supports rendering of a collection of fragments from various fields. More...

#include <FragmentPainter.hpp>

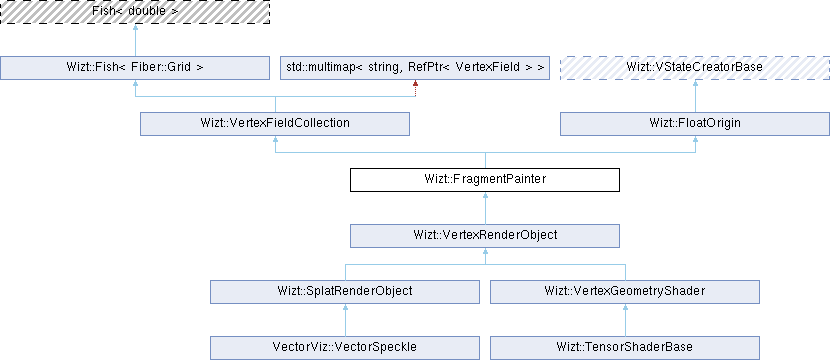

Inheritance diagram for Wizt::FragmentPainter:

Public Member Functions
	FragmentPainter (VObject *that, const string &fragmentselectorname="selection", int EL=5)
	Constructor, needs a VObject to initialize the slot driving the fragment selector.
virtual string	FragmentSelectionField () const
	Return the name of the field that will be responsible for the coordinates of the fields.
virtual string	GLCacheField (const RefPtr< ValuePool > &Context) const
	The name of the field that will be used for caching opengl VBO's at each of this fragments.
virtual RefPtr< ValueSet >	CacheableVariables (const RefPtr< ValuePool > &Context) const
	Return a set of variables for which the results shall be cached, i.e.
virtual string	VBOCacheKey (const RefPtr< ValuePool > &Context) const
	A child-class defined arbitrary string used to extend the cache modifier.
virtual RefPtr< VBO::Renderer >	createRenderer (VGLRenderContext &Context, const RefPtr< MemBase > &FieldCoordinates, const RefPtr< FragmentSelector > &FS) const
	Create a Renderer object for the VBO, which by default is a DrawArrays() renderer that emits points for each vertex.
virtual void	updateRenderer (VGLRenderContext &Context, const RefPtr< VBO::Renderer > &R, const RefPtr< MemBase > &FieldCoordinates, const RefPtr< FragmentSelector > &FS) const
	Update a renderer object, in case the fragment selector is newer.
virtual Ageable	YoungestDependency (const RefPtr< ValuePool > &Context, const WeakPtr< Representation > &RefinementRep) const
	Optional child class for specifying dependencies that may have changed and require re-creation of a cached VBO.
virtual bool	appendOnDemandFragments (VGLRenderContext &Context, const RefPtr< VBO > &myVBO, int RefinementLevel, const WeakPtr< Representation > &RefinementRep, const RefPtr< FragmentID > &fragment_identifier, const Fiber::Fragment &FragmentData, const RefPtr< GLProgram > &Shader) const
	Virtual function to allow derived classes to create data on demand, i.e.
virtual void	setRendererParameters (VGLRenderContext &Context, const RefPtr< VBO::Renderer > &theRenderer, const RefPtr< CreativeArrayBase > &VertexCoordinates, const RefPtr< GLProgram > &theShaderProgram) const =0
	Given a Renderer, which usually is has been created by the createRenderer() virtual function, modify its parameters, depending on the context.
virtual bool	FunctorsAreOlderThan (const Ageable &A, const RefPtr< ValuePool > &Context) const
virtual void	updateFromFunctorsAge (Ageable &A, const RefPtr< ValuePool > &Context) const
void	renderFragments (Fiber::FragmentCluster &FC, VGLRenderContext &Context, VGLRenderObject::UsedVBO_t &UsedVBO, const RefPtr< GLProgram > &myProgram) const
	Render all the field fragments that are stored and available here.
Public Member Functions inherited from Wizt::VertexFieldCollection
	VertexFieldCollection (VObject *that)
	Construct a collection of fields on the vertices of a Grid.
	~VertexFieldCollection ()
	Destructor.
TypedSlot< Fiber::Field > &	insertVertexField (const string &s, const RefPtr< VertexField > &)
	Add a vertex field under the given name.
RefPtr< VertexField > &	operator[] (const string &s)
	Retrieve a VertexField for the given name, create one, if required.
RefPtr< VertexField >	operator() (const string &s) const
	Search for a VertexField under the given name.
Fiber::Info< Fiber::Skeleton >	getRefinementLevel (int Level, const RefPtr< ValuePool > &VP, int IndexDepth=0, const Fiber::BundlePtr &SpaceTime=Fiber::BundlePtr(NullPtr())) const override
	Implementation of the virtual callback function that will load data sets from a grid into a collection of VertexFields, as specified earlier.
virtual GridSelector	myGridSelector (const RefPtr< ValuePool > &VP) const
	Virtual function that allows child classes to specify the Grid that shall be used.
GridSelector	getGridSelector (const RefPtr< ValuePool > &VP) const override
	Get the Grid that will be used here.
void	retrieveFields (Fiber::FieldCollection &FieldMap, const RefPtr< Fiber::Representation > &MyRepresentation, const RefPtr< ValuePool > &Context, const RefPtr< Fiber::Skeleton > &DestVertices, Fiber::Grid &DestGrid, Fiber::Slice &DestGridSlice, const string &HelperDestGridName, bool StoreResult=true)
	From the given Representation, retrieve all fields as required here into the provided Fieldmap.
int	append (const RefPtr< VBO > &myVBO, const VertexFragment &VertexFragments, const RefPtr< GLProgram > &Shader) const
	Append all the fields stored in these vertex fragments to the given vertex buffer object.
bool	isOlderThan (const Ageable &A, const RefPtr< ValuePool > &Context) const
	Check if all parameters in this collection of fields is older than the given age.
void	updateAge (Ageable &A, const RefPtr< ValuePool > &Context) const
RefPtr< StringList >	getCurrentFieldnames (const RefPtr< ValuePool > &Context) const
	Get a list of all currently selected fields.
int	iterate (Iterator &It) const
	Iterate through all available vertex fields.
Public Member Functions inherited from Wizt::Fish< Fiber::Grid >
	Fish (const string &s="grid", int prior=2)
	Constructor, optionally pass a parameter of this grid's name (ie.
virtual	~Fish ()
	Destructor.
void	registerGridAsOutput ()
	Make grid visible as output.
Fiber::Bundle::GridInfo_t	findMostRecentGrid (GridSelector &GS, const RefPtr< ValuePool > &VP, const Fiber::BundlePtr &SpaceTime=Fiber::BundlePtr(NullPtr())) const
	This is a convenience function to find the most recent grid for the current time ( Fish<Slice>() or virtual function getTime() ).
Fiber::Bundle::GridInfo_t	findMostRecentGrid (const RefPtr< ValuePool > &VP, const Fiber::BundlePtr &SpaceTime=Fiber::BundlePtr(NullPtr())) const
	Find the most recent grid for the current time ( Fish<Slice>() or virtual function getTime() ).
Fiber::Info< Fiber::Skeleton >	getRefinementLevel (int Level, const RefPtr< ValuePool > &VP, int IndexDepth=0, const Fiber::BundlePtr &SpaceTime=Fiber::BundlePtr(NullPtr())) const override
	Get an refinement level for the given spacetime based on the GridSelector as returned by getGridSelector().
bool	IterateLevelsOnMostRecentGrid (LevelIterator &LI, const RefPtr< ValuePool > &Context, const Fiber::BundlePtr &SpaceTime=Fiber::BundlePtr(NullPtr())) const
	Iterate over all the selected levels of a Grid via an instance of the LevelIterator.
RefPtr< Fiber::Field >	getField (const Fiber::FieldSelector &FS, const RefPtr< ValuePool > &VP, const Fiber::BundlePtr &SpaceTime=Fiber::BundlePtr(NullPtr()))
	Retrieve a field for the given FieldSelector on the currently selected Grid.
Public Member Functions inherited from Wizt::FloatOrigin
RefPtr< Chunk< Eagle::point3 > >	computeShiftedCoordinates (const RefPtr< Chunk< Eagle::point3 > > &RawCoordinates, const Eagle::tvector3 &TranslationVector) const
VRenderContext::ModelViewState	getCoordinateTranslation (const VRenderContext &Context, Eagle::tvector3 &TranslationVector) const
VRenderContext::ModelViewState	getCoordinateTranslation (const VRenderContext &Context, Intercube &IC, Eagle::tvector3 &TranslationVector) const
Public Member Functions inherited from Wizt::VStateCreatorBase
RefPtr< State > &	getState (const WeakPtr< ValuePool > &VP) const
RefPtr< InterfaceBase >	hasLocalInterface (const type_info &InterfaceType) const
RefPtr< State >	myState (const WeakPtr< ValuePool > &Context) const
virtual RefPtr< State >	newState () const
void	setState (const WeakPtr< ValuePool > &, const RefPtr< State > &st) const

Public Attributes
TypedSlot< FragmentSelector >	MyFragmentSelector
	The input slot for selecting fragments out of a collection of fragments.
TypedSlot< int >	MyNumOfRefFragments
TypedSlot< Options >	MyOptions
TypedSlot< double >	tsFloatOriginThreshold
Public Attributes inherited from Wizt::VertexFieldCollection
RefPtr< VertexField >	Positions
	The coordinates are a field that will always be available here.
Public Attributes inherited from Wizt::Fish< Fiber::Grid >
TypedSlot< Fiber::Grid >	MyGrid

Additional Inherited Members
Public Types inherited from Wizt::VertexFieldCollection
enum	{ NumberOfInputFields = 1 }
Static Public Member Functions inherited from Wizt::FloatOrigin
static VRenderContext::ModelViewState	getTranslationVector (const VRenderContext &Context, Intercube &IC, Eagle::tvector3 &TranslationVector, double CameraShiftThreshold)
static Eagle::tvector3	getTranslationVector (Intercube &IC)

Detailed Description

A helper class that supports rendering of a collection of fragments from various fields.

A collection of fragments may be all data sets of a fragmented field, as well as some subset of such that is determined by a FragmentSelector. For each geometrical region, there may be multiple fields available (as specified by the VertexFieldCollection), which are all shuffled to a collection of Vertex Buffer Object, ready to be used by some fragment shader that needs to be implemented in a child class.

Within the fragment shader, the respective field data will be available as arrays under the names under which they are stored in the VertexFieldCollection . For instance, the constructor of a child class would contain the following line:

(*this)["normalvectors"] = new VBOField<TypedNormalArray<Eagle::tvector3> >(this, "vectorfield");

It defines that the child class will use some input field named "vectorfield" that is provided to the fragment shader under the name "normalvectors".

Via the FragmentSelector this class also supports \i selective drawing of regions of interest.

Author

Werner Benger

Member Function Documentation

appendOnDemandFragments()

bool Wizt::FragmentPainter::appendOnDemandFragments ( VGLRenderContext &  Context, const RefPtr< VBO > &  myVBO, int  RefinementLevel, const WeakPtr< Representation > &  RefinementRep, const RefPtr< FragmentID > &  fragment_identifier, const Fiber::Fragment &  FragmentData, const RefPtr< GLProgram > &  Shader  ) const

virtual

Virtual function to allow derived classes to create data on demand, i.e.

only when requested and required for rendering. Use in cooperation with YoungestDependency() to specify when a cached VBO shall be re-created. This function will never be called if those input data change otherwise.

CacheableVariables()

RefPtr< ValueSet > Wizt::FragmentPainter::CacheableVariables ( const RefPtr< ValuePool > &  Context ) const

virtual

Return a set of variables for which the results shall be cached, i.e.

there resides an OpenGL object for each state of each of those variables. They are all kept in memory until the cache is full. A typical example are fields. So when the user switches from one field to another field, and back to the first one, the OpenGL object does not need to be recomputed again, but is retrieved from the Cache. A typical counter example is a floating point value, since that one has an infinite number of possibilities. And it is unlikely that a user will accidentally switch back to an old value of a float slider, thus caching relative to float values is not reasonable. It is still possible, however, and could make sense if float values are rounded.

A typical implementation of this function, assuming two slots "MyGrid" and "MyField") looks like this:

RefPtr<ValueSet> CacheableVariables(const RefPtr<ValuePool>&Context) const
{
RefPtr<ValueSet> retval = new ValueSet( MyGrid(Context) );
              *retval << (*MyField)(Context);
        return retval;
}

Deprecated:

Reimplemented in Wizt::VertexRenderObject.

createRenderer()

RefPtr< VBO::Renderer > Wizt::FragmentPainter::createRenderer ( VGLRenderContext &  Context, const RefPtr< MemBase > &  FieldCoordinates, const RefPtr< FragmentSelector > &  FS  ) const

virtual

Create a Renderer object for the VBO, which by default is a DrawArrays() renderer that emits points for each vertex.

The Renderer is kept alive as long as the VBO it belongs to is kept alive.

Reimplemented in Wizt::SplatRenderObject, and Wizt::VertexGeometryShader.

FragmentSelectionField()

string Wizt::FragmentPainter::FragmentSelectionField ( ) const

virtual

Return the name of the field that will be responsible for the coordinates of the fields.

By default, this will be "Positions".

Referenced by GLCacheField(), and renderFragments().

GLCacheField()

string Wizt::FragmentPainter::GLCacheField ( const RefPtr< ValuePool > &  Context ) const

virtual

The name of the field that will be used for caching opengl VBO's at each of this fragments.

This is a temporary workaround. It will NOT work correctly if a VBO depends on multiple fields. The VBO will only change if the GLCacheField changes (ie., its fragments).

There will be ONE VBO per fragment of this GLCacheField.

Per default, this will be the FragmentSelectionField().

If a rendering method implements a vector field visualization of Grid that does not change, then this function would refer to the name of that vector field. However, if the coordinates changes but not the vector field, it will still display the same. This needs to be reworked.

References FragmentSelectionField().

setRendererParameters()

void Wizt::FragmentPainter::setRendererParameters ( VGLRenderContext &  Context, const RefPtr< VBO::Renderer > &  theRenderer, const RefPtr< CreativeArrayBase > &  VertexCoordinates, const RefPtr< GLProgram > &  theShaderProgram  ) const

pure virtual

Given a Renderer, which usually is has been created by the createRenderer() virtual function, modify its parameters, depending on the context.

In contrast to the cacheable variables (see CacheableVariables() ), these parameters that are modified here do not require re-creation of a VBO object. This function will be called just before the VBO object is called to re-render the already loaded data.

Parameters

theShaderProgram

The Program which will be used for rendering. It will be null if no Shader Program is used.

VBOCacheKey()

string Wizt::FragmentPainter::VBOCacheKey ( const RefPtr< ValuePool > &  Context ) const

virtual

A child-class defined arbitrary string used to extend the cache modifier.

Reimplemented in Wizt::TensorShaderBase.

YoungestDependency()

Ageable Wizt::FragmentPainter::YoungestDependency ( const RefPtr< ValuePool > &  Context, const WeakPtr< Representation > &  RefinementRep  ) const

virtual

Optional child class for specifying dependencies that may have changed and require re-creation of a cached VBO.

This function is to be used in cooperation with appendOnDemandFragments().

Reimplemented in Wizt::TensorShaderBase.

References MemCore::Ageable::InfinitelyOld().
