Fiber::Representation Class Reference

A Representation is a set of Field objects, each of them accessed via some FieldID identifier. More...

#include <Representation.hpp>

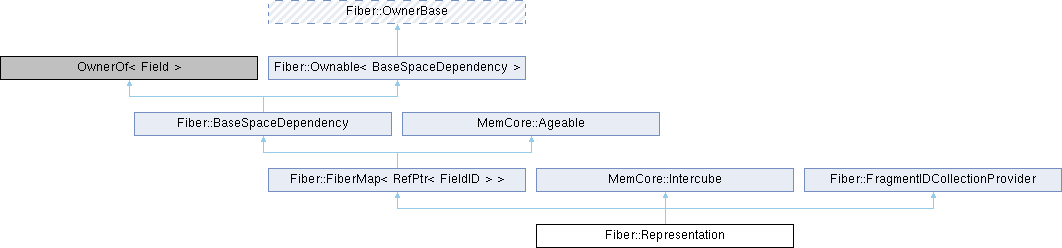

Inheritance diagram for Fiber::Representation:

Public Types
typedef FiberMap< RefPtr< FieldID > >	Base_t
using	const_iterator_t = std::function< bool(const FieldID &, const Field &)>
using	iterator_t = std::function< bool(const FieldID &, Field &)>
	Note that an iterator_t can be implicitly cast into an const_iterator_t, thus functions taking an iterator_t must be named differently to avoid ambiguity.
typedef FieldIterator	Iterator
using	iterate_all_t = std::function< bool(const FieldID &d, Field &F, const RefPtr< CreativeArrayBase > &CAB, const RefPtr< FragmentID > &fid)>
Public Types inherited from Fiber::OwnerBase
template<class ItemType >
using	Item = MemCore::InterfaceData< ItemType >
	An optional convenience class that allows to easily add arbitrary types to Intercubes .

Public Member Functions
	Representation (const Representation &)=delete
	Prevent accidental copy construction.
void	operator= (const Representation &)=delete
	Prevent accidental copy assignment.
void	extremeUnction () override
RefPtr< FieldID >	makeFieldID (const string &name)
	Create a new FieldID from a given textual description if it does not exist yet.
RefPtr< FieldID >	findFieldID (const string &name) const
	Get a field ID, returning Null when none exists yet.
bool	removeField (const string &name)
bool	removeField (const RefPtr< FieldID > &FID)
RefPtr< FieldID >	renameField (const string &OldName, const string &NewName)
RefPtr< FieldID >	insertSharedFieldID (const Representation &R, const string &name)
	Retrieve an existing field ID if existent, otherwise insert a field ID that is shared with another Representation.
RefPtr< FieldID >	createSharedFieldID (Representation &Carrier, const string &name)
	Use field identifier which resides on the given Carrier Representation.
RefPtr< Field > &	getField (const RefPtr< FieldID > &f)
	Given a certain FieldID, retrieve the according field.
const RefPtr< Field > &	findField (const RefPtr< FieldID > &f) const
	Search and find a Field from its ID.
const RefPtr< Field > &	findField (const FieldID &f) const
	Search and find a Field from its ID.
bool	checkIfFieldSizeIsIncompatible (const RefPtr< Field > &FieldPtr)
	Check if a given Field is incompatible with the index space of this representations, i.e.
FieldProxy	makeField (const WeakPtr< FieldID > &rf, const RefPtr< FragmentIDCollection > &ExistingFragmentIDCollection=NullPtr(), const RefPtr< MemBase > &theFragmentTopology=MemCore::NullPtr())
Field &	makeField (const FieldID &f)
void	own (Field &) const
	Set ownership information on the given Field.
Field &	operator[] (const FieldID &f)
	Return a Field for the given ID.
FieldProxy	operator[] (const RefPtr< FieldID > &f)
	Return reference to the internally stored Field pointer, which may be overwritten by the caller.
FieldProxy	operator[] (const string &name)
	Make a field reference from a string, field ID is created if not yet existent.
const RefPtr< Field > &	findField (const string &name) const
	Retrieve a field by its name; usually fields should be retrieved via their field identifier instead, using the () operator.
const RefPtr< Field > &	findField (const char *name) const
template<class FieldNameContainer >
const RefPtr< Field > &	findField (const FieldNameContainer &FieldNames) const
const RefPtr< Field > &	operator() (const string &name) const
	Operator interface to the findField function.
const RefPtr< Field > &	operator() (const char *name) const
const RefPtr< Field > &	operator() (const FieldID &fid) const
const RefPtr< Field > &	operator() (const RefPtr< FieldID > &f) const
	Look for a field, given its field identifier.
template<class FieldNameContainer >
const RefPtr< Field > &	operator() (const FieldNameContainer &FieldNames) const
RefPtr< CreativeArrayBase >	operator() (const string &name, const RefPtr< FragmentID > &f)
	Shortcut function: Checks if a field exist, and if so, retrieves the data that are associated with a certain field fragment ID.
RefPtr< CreativeArrayBase >	operator() (const string &name, const string &FragmentName)
const RefPtr< Field > &	Positions () const
	Get the positions component of this Representation object.
const RefPtr< Field > &	getPositions () const
	Get the positions component of this Representation object.
RefPtr< SizeInterface >	getSize () const
	The size of this representation, which is the sum of all fragments of the Positions field.
RefPtr< SizeInterface >	getFragmentSize (const RefPtr< FragmentID > &Fid) const
	Shortcut function: Get the size of field's fragment, if possible.
bool	setField (const string &Fieldname, const RefPtr< Field > &P)
	Add a field under the given name.
bool	setPositions (const RefPtr< Field > &P)
	Set the positional component of this Representation object.
template<class Data , Dims_t Dims>
bool	setPositions (const Data &D, const MultiIndex< Dims > &Size, const RefPtr< FragmentIDCollection > &theFragmentIDCollection=nullptr)
	Convenience function to set unfragmented positions directly from some data set, e.g.
template<class T , Dims_t N>
bool	setPositions (const MemCore::WeakPtr< MemArray< N, T > > &MemRefPtr, const RefPtr< FragmentIDCollection > &theFragmentIDCollection=nullptr)
	Convenience function to set unfragmented positions directly from some MemArray.
bool	setPositions (const MemCore::RefPtr< MemBase > &MemRefPtr, const RefPtr< FragmentIDCollection > &theFragmentIDCollection=nullptr)
	Convenience function to set unfragmented positions directly from some MemBase.
bool	setPositions (const MemCore::RefPtr< CreativeArrayBase > &CrecRefPtr, const RefPtr< FragmentIDCollection > &theFragmentIDCollection=nullptr)
	Convenience function to set unfragmented positions directly from some CreativeArrayBase.
template<class Data , Dims_t Dims>
bool	setField (const string &Fieldname, const Data &D, const MultiIndex< Dims > &Size, const RefPtr< FragmentIDCollection > &theFragmentIDCollection=nullptr)
	Convenience function to set an unfragmented field direcly from some data that can be used for constucting a Field.
template<class T , Dims_t N>
bool	setField (const string &Fieldname, const MemCore::WeakPtr< MemArray< N, T > > &MemRefPtr, const RefPtr< FragmentIDCollection > &theFragmentIDCollection=nullptr)
	Convenience function to set an unfragmented field direcly from a MemArray.
bool	setField (const string &Fieldname, const MemCore::RefPtr< MemBase > &MemRefPtr, const RefPtr< FragmentIDCollection > &theFragmentIDCollection=nullptr)
	Convenience function to set an unfragmented field direcly from a MemBase.
bool	setField (const string &Fieldname, const MemCore::RefPtr< CreativeArrayBase > &CrecPtr, const RefPtr< FragmentIDCollection > &theFragmentIDCollection=nullptr)
	Convenience function to set an unfragmented field direcly from a CreativeArrayBase.
int	iterate (FieldIterator &FI) const
	Iterate over all fields in this Representation.
int	iterate_fields (const iterator_t &F) const
	iterate over all fields contained in this Representation
int	iterate_const_fields (const const_iterator_t &F) const
	Functor iterator with constant field.
int	iterate (const iterator_t &F) const
	Functor iterator.
int	iterate_m (const iterator_t &F) const
	Functor iterator with non-constant, modifyable field.
int	iterate_all (const iterate_all_t &f) const
int	iterate (const iterate_all_t &f) const
template<class Functor >
int	Iterate_all (const Functor &F) const
Dims_t	Dims () const
	Determine the dimensionality of the data that live here.
	DEPRECATED ("Use Dims() or getSize() instead", Dims_t rank() const)
RefPtr< FragmentIDCollection >	getFragmentIDCollection () const override
memsize_t	getMemoryUsage (memsize_t &UsedMemory, memsize_t &WantedMemory) const
	Get memory usage.
void	Speak (int indent=0, int maxindent=-1) const
	Informative debug message.
string	xml () const
	Analyse this representation's content in XML format.
void	createLinkedFields (const Representation &linked_from)
	Creates links to the fields of a different representation in the current representation.
Public Member Functions inherited from Fiber::FiberMap< RefPtr< FieldID > >
RefPtr< FragmentIDCollection >	getFragmentIDCollection () const
	Return the associated fragment ID collection of the first field that has one.
	FiberMap ()
	Default constructor.
size_t	getNumberOfFields () const
	Get the number of fields contained here.
Field &	operator[] (const RefPtr< FieldID > &id)
	Access field by name, create one, in case.
void	mkFieldID (const RefPtr< FieldID > &id)
void	insertField (const RefPtr< FieldID > &id, const RefPtr< Field > &F)
const RefPtr< Field > &	find (const RefPtr< FieldID > &id) const
	Find an entry.
RefPtr< CreativeArrayBase >	find (const RefPtr< FieldID > &id, const RefPtr< FragmentID > &f) const
RefPtr< CreativeArrayBase >	find (const RefPtr< FieldID > &id, const string &FragmentName) const
const RefPtr< Field > &	operator() (const RefPtr< FieldID > &id) const
	Find an entry, operator interface to the find() member function for convenience.
void	iterate (const std::function< bool(const RefPtr< FieldID > &, const RefPtr< Field > &)> &F) const
bool	remove (const RefPtr< FieldID > &id)
	Remove an Field.
void	getMinMaxAge (Ageable &Youngest, Ageable &Oldest) const
	Get the youngest/oldest age of all fields contained here, including the fiber space itself taking into account when fields have last been inserted or removed here.
RefPtr< Field >	findMostFragmentedField () const
	Find the Field with the most fragments.
int	getMemoryUsage (memsize_t &UsedMemory, memsize_t &WantedMemory) const
	Memory usage.
int	providesFieldType (const Fiber::TypeList_t &AcceptedFields) const
	Check how many fields exist here that conform to the given type.
string	xml () const
void	clear_fields ()
const RefPtr< Field > &	getFirstField () const
Public Member Functions inherited from Fiber::BaseSpaceDependency
	BaseSpaceDependency ()
	Constructor.
virtual	~BaseSpaceDependency ()
	Destructor.
Public Member Functions inherited from Fiber::Ownable< BaseSpaceDependency >
void	x_updateOwnershipAge (const MemCore::Ageable &theNewAge) override
	Forward some age to all Owners.
void	insertOwner (const Container &theOwner)
	Add some owner.
bool	insertOwner (const MemCore::WeakPtr< Container > &theOwner)
	Add some owner.
void	addOwner (const Container &theOwner, const MemCore::Ageable &theNewAge)
	Add some owner and broadcast a new age to all Ownerrs.
void	addOwner (const MemCore::WeakPtr< Container > &theOwner, const MemCore::Ageable &theNewAge)
	Add some owner and broadcast a new age to all Ownerrs.
	Ownable ()
	Default constructor, empty Ownership list.
	Ownable (const Ownable &)
	Copy constructor, does NOT copy any ownership information, the new Ownable will be unowned.
	Ownable (const MemCore::WeakPtr< Container > &theOwner, const MemCore::Ageable &theNewAge)
	Construct an Ownable with an initial owner.
	Ownable (const Container &theOwner, const MemCore::Ageable &theNewAge)
	Construct an Ownable with an initial owner.
Ownable &	operator= (const Ownable &)
	Assignment, does NOT copy any ownership information, the assigned Ownable will retain all its ownership information.
MemCore::WeakPtr< Container >	getPrimaryOwner () const
	Get the first valid owner.
size_t	getNumberOfValidOwners () const
	Get the first valid owner.
bool	processOwnership (MemCore::Intercube &Output, const MemCore::Intercube &Input) const override
	Process some ownership action.
Public Member Functions inherited from Fiber::OwnerBase
bool	processOwnership (MemCore::Intercube &OutputAndInput) const
	Process ownership where the input information is shared with the output information in the same Intercube.
Public Member Functions inherited from MemCore::Ageable
constexpr	Ageable (age_t t) noexcept
constexpr	Ageable (const Ageable &A) noexcept
	Ageable (const volatile Ageable &A) noexcept
constexpr const Ageable &	getAge () const
bool	isNewerThan (const Ageable &a) const noexcept
bool	isOlderThan (const Ageable &a) const noexcept
bool	isYoungerThan (const Ageable &a) const noexcept
bool	operator!= (const Ageable &a) const noexcept
bool	operator< (const Ageable &a) const noexcept
bool	operator<= (const Ageable &a) const noexcept
bool	operator<= (const volatile Ageable &a) const volatile noexcept
bool	operator== (const Ageable &a) const noexcept
bool	operator> (const Ageable &a) const noexcept
bool	operator> (const volatile Ageable &a) const volatile
bool	operator>= (const Ageable &a) const noexcept
bool	operator>= (const volatile Ageable &a) const volatile noexcept
constexpr void	resetAge () noexcept
void	setInfinitelyNew () noexcept
age_t	time_value () const noexcept
age_t	time_value () const volatile noexcept
Ageable &	touch () noexcept
age_t	update (age_t age) noexcept
age_t	update (const Ageable &Other) noexcept
age_t	update (const volatile Ageable &Other) volatile noexcept
Public Member Functions inherited from MemCore::Intercube
void	addInterface (const RefPtr< InterfaceBase > &I) const
void	addInterfaceData (const Data &D)
void	addInterfaceData (const Data &D)
void	clearInterfaces ()
bool	const_iterateInterfaces (const RefPtr< InterfaceIterationParameter > &IIP) const
virtual RefPtr< InterfaceBase >	createInterface (const type_info &) const
RefPtr< InterfaceBase >	findInterface (const type_info &t) const
RefPtr< InterfaceBase >	getInterface (const type_info &t)
std::string	getInterfaceNames (const char delim=';') const
bool	gotNewInterfaceData (const Data &D)
bool	gotNewInterfaceData (mutex &M, const Data &D)
bool	gotNewInterfaceData (mutex &M, const Data &D)
bool	gotNewInterfaceData (mutex &M, const Data &D, const Selector &S)
bool	gotNewInterfaceData (mutex &M, const Data &D, const Selector *S)
bool	hasChangedInterfaceData (const Data &D) const
bool	hasChangedInterfaceData (const Data &D) const
bool	hasChangedInterfaceData (const Data &D, const Selector &) const
bool	hasChangedInterfaceData (const Data &D, const Selector *) const
bool	hasInterface (const type_info &t) const
bool	iterateInterfaces (const RefPtr< InterfaceIterationParameter > &IIP)
void	printInterfaces () const
void	registerInterface (const type_info &t)
void	removeInterface ()
void	removeInterfaceBase (const type_info &InterfaceBaseID)

Public Attributes
unsigned long	RenameOperations = 0
unsigned long	RemovalOperations = 0
Public Attributes inherited from Fiber::Ownable< BaseSpaceDependency >
std::unordered_set< MemCore::WeakPtr< Container > >	Owners
	The (internal) list of owners.

Static Public Attributes
static constexpr unsigned long	MaxOperations = -22U

Friends
struct	FieldProxy

Additional Inherited Members
Static Public Member Functions inherited from MemCore::Ageable
static const Ageable &	InfinitelyNew () noexcept
static constexpr const Ageable &	InfinitelyOld () noexcept
static age_t	now () noexcept
Protected Member Functions inherited from Fiber::FiberMap< RefPtr< FieldID > >
RefPtr< Field > &	create_entry (const RefPtr< FieldID > &id)
	Get a modifyable field entry.
Fields_t	copy_Fields_map () const

Detailed Description

A Representation is a set of Field objects, each of them accessed via some FieldID identifier.

The class describes the representation of a Skeleton in a coordinate system or relative to another Skeleton. Examples are the coordinate system representation (positions, fields) of a Grid object's geometrical representation, or the representation of the triangles of a triangular surface by its vertices or edges.

Use Representation::iterate(FieldIterator&) to find all fields.

The Representation is an Intercube and can carry arbitrary interfaces. There is no specific reason why the FiberMap should not be an Intercube either.

Examples

ModifyingPointCloudRange.cpp, Sphere.cpp, XF_LineSetFragmented.cpp, XF_LineSetHierarchical.cpp, XF_LineSetHierarchicalRegularized.cpp, trimesh.cpp, and uniform_scalar.cpp.

Member Function Documentation

checkIfFieldSizeIsIncompatible()

bool Fiber::Representation::checkIfFieldSizeIsIncompatible

(

const RefPtr< Field > &

FieldPtr

)

Check if a given Field is incompatible with the index space of this representations, i.e.

whether the dimensions match. If for various reasons this cannot be determined, the function will return false, indicating that the field may be compatible, we just don't know yet.

References getPositions().

createLinkedFields()

void Fiber::Representation::createLinkedFields

(

const Representation &

linked_from

)

Creates links to the fields of a different representation in the current representation.

The current representation will contain then all the data fields of the 'linked from' representation.

Author

: marcel

References apply().

createSharedFieldID()

RefPtr< FieldID > Fiber::Representation::createSharedFieldID	(	Representation &	Carrier,
		const string &	name
	)

Use field identifier which resides on the given Carrier Representation.

If none exists there yet, create one. If a field identifier already existed for the current Representation, then this one is used, and the Carrier is not touched at all.

Parameters

Carrier	The Representation which hosts the field identifier, and field identifiers are shared with this one.
name	The string that makes up a field identifier.

References findFieldID().

Referenced by Fiber::PartialDerivative().

Dims()

Dims_t Fiber::Representation::Dims

(

)

const

Determine the dimensionality of the data that live here.

Returns

If no fields are defined on this representation, a negative value is returned, i.e. the dimensionality is yet unspecified.

References getPositions().

findFieldID()

RefPtr< FieldID > Fiber::Representation::findFieldID

(

const string &

name

)

const

Get a field ID, returning Null when none exists yet.

The get function creates an entry in any case. Ensure the string is valid. Use the operator() to query if a certain field ID exists for a string.

Referenced by createSharedFieldID(), insertSharedFieldID(), and makeFieldID().

getFragmentIDCollection()

RefPtr< FragmentIDCollection > Fiber::Representation::getFragmentIDCollection ( ) const

overridevirtual

Implements Fiber::FragmentIDCollectionProvider.

getSize()

RefPtr< SizeInterface > Fiber::Representation::getSize

(

)

const

The size of this representation, which is the sum of all fragments of the Positions field.

Returns

A NullPtr() will be returned if the size cannot be determined, e.g. due to inconsistent rank of fragments, or no fragments existing here at all.

Todo:

Consider the case of unfragmented Positions with fragmented fields.

References getPositions().

insertSharedFieldID()

RefPtr< FieldID > Fiber::Representation::insertSharedFieldID	(	const Representation &	R,
		const string &	name
	)

Retrieve an existing field ID if existent, otherwise insert a field ID that is shared with another Representation.

If that Representation doesn't contain an according field ID for the given name, no FieldID is created here either.

References findFieldID().

iterate()

int Fiber::Representation::iterate

(

FieldIterator &

FI

)

const

Iterate over all fields in this Representation.

Representation&R;

    struct : FieldIterator
    {
        bool apply(const FieldID&d, const Field&R) override
        {
                printf("Found field [%s]\n", d.Name().c_str() );
                return true;
        }

    }   MyFieldIteratorObject;

    R.iterate( MyFieldIteratorObject );

References Fiber::FieldIterator::apply().

Referenced by Fiber::ExecuteExpression(), and Fiber::operator<<=().

iterate_all()

int Fiber::Representation::iterate_all ( const iterate_all_t &  f ) const

inline

       Iterate over all fields and all fragments contained in this Representation.

R.iterate_all( [](const FieldID&d, Field&F, const RefPtr<CreativeArrayBase>&CAB, const RefPtr<FragmentID>&fid)
{
}
);

See also

iterate_fields()

Note

The Field argument is recommended to be const as in:

R.iterate_all( [](const FieldID&d, const Field&F, const RefPtr<CreativeArrayBase>&CAB, const RefPtr<FragmentID>&fid)
{
}
);

This function can be implicitly converted.

Referenced by Fiber::RepresentationMap::iterate_all().

makeFieldID()

RefPtr< FieldID > Fiber::Representation::makeFieldID

(

const string &

name

)

Create a new FieldID from a given textual description if it does not exist yet.

Operating on FieldID's instead of just strings is beneficial to store additional information on fields, such as dependency relationships (e.g. one field is derived from another field).

Parameters

name	The field name.

Empty strings are not supported, field names must be of at least one character length.

References findFieldID().

Referenced by setField().

operator()()

const RefPtr< Field > & Fiber::Representation::operator() ( const string &  name ) const

inline

Operator interface to the findField function.

Return a field from a textual description, if a field identifier with a compatible name exists on this Representation.

See also

FieldID, operator[](const string&name)

Parameters

name	The name component of a field identifier.

operator[]()

Field & Fiber::Representation::operator[] ( const FieldID &  f )

inline

Return a Field for the given ID.

If a new field shall be created for the given ID, then use the alternative [] operator function that takes a RefPtr<FieldID> as argument.

setPositions() [1/2]

template<class Data , Dims_t Dims>

bool Fiber::Representation::setPositions ( const Data &  D, const MultiIndex< Dims > &  Size, const RefPtr< FragmentIDCollection > &  theFragmentIDCollection = nullptr  )

inline

Convenience function to set unfragmented positions directly from some data set, e.g.

from a MemVector<Eagle::point3> .

setPositions() [2/2]

bool Fiber::Representation::setPositions

(

const RefPtr< Field > &

P

)

Set the positional component of this Representation object.

An eventually existing component is overwritten. Semantically, this function is equivalent with creating a field named FIBER_POSITIONS:

Representation R;
        R[ *R[FIBER_POSITIONS] ]

See also

RefPtr<Field>&operator[](const RefPtr<FieldID>&f), FieldID&operator[](const string&name)

Examples

XF_LineSetFragmented.cpp, XF_LineSetHierarchical.cpp, XF_LineSetHierarchicalRegularized.cpp, and trimesh.cpp.

References setField().
