Wizt::VOutput< Type > Class Template Reference

Output properties of an object. More...

#include <ocean/plankton/VSlotContainerIO.hpp>

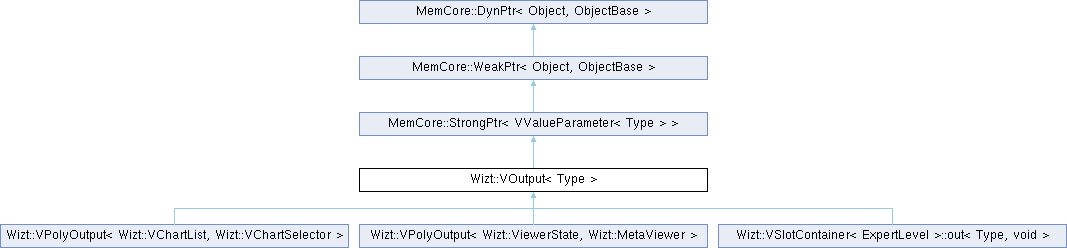

Inheritance diagram for Wizt::VOutput< Type >:

Public Member Functions
Type &	operator() ()
	Allow direct writable access to the stored type via function call operator ().
const Type &	operator() () const
	Allow direct read-only access to the stored type via function call operator ().
	VOutput (const VParameter::SourceObject_t &Source, const string &initial_name, const Type &InitValue, const RefPtr< VCreationPreferences > &CP=nullptr)
	Constructor:
	VOutput (const VSlotContainer::Deferred &)
	Default constructor - allows to create VOutputs with deferred construction, eventually dynamically, instead of during construction.
	VOutput (VSlotContainer *Source, const string &initial_name, const Type &InitValue, const RefPtr< VCreationPreferences > &CP=nullptr)
	Constructor:
Public Member Functions inherited from MemCore::StrongPtr< Object, ObjectBase >
StrongPtr &	assignStrong (const DynPtr_t &other)
	assign a strong pointer from a weak pointer
StrongPtr &	assignStrong (const ReferenceBase< ObjectBase_t > *Obj)
	assign a strong pointer from a native pointer
StrongPtr &	assignStrong (const std::nullptr_t &)
	Assign nullptr to a strong pointer, which will remove the referenced object if its counter reaches zero, but the pointer will remain a valid weak pointer with sustained hash value (the referer will still be around).
template<typename... Arguments>
auto	operator() (Arguments...parameters) const -> decltype((*this->getPtrValue())(parameters...))
	Function call operator forwarding.
refvalue_t &	operator* () const
	The dereferencing *-operator.
pointer_t	operator-> () const
	The pointer operator.
StrongPtr &	operator= (const DynPtr_t &other)
	Assignment operator, same as assignStrong().
StrongPtr &	operator= (const ReferenceBase< ObjectBase_t > *Obj)
	Assignment from object base class pointer.
StrongPtr &	operator= (const std::initializer_list< StrongPtr > &other)
	Syntactic sugar: Allows assignment with {} to create a nullptr.
StrongPtr &	operator= (const std::nullptr_t &)
	Assignment operator with nullptr, invalidate.
StrongPtr &	operator= (const StrongPtr &other)
	Assignment operator, same as assignStrong().
template<class IndexType>
auto	operator[] (const IndexType &I) const -> decltype((*this->getPtrValue())[I])
	Index operator forwarding.
	StrongPtr ()
	Default constructor (makes a NULL pointer).
	StrongPtr (const ReferenceBase< ObjectBase_t > *Obj)
	Strong pointer from reference base of object, eg. via new operator.
	StrongPtr (const ReferenceBase< ObjectBase_t > *Obj, const NotNullPtr &)
	Strong pointer from reference base of object, eg. via new operator.
	StrongPtr (const std::nullptr_t &)
	Explicitely construct a nullptr pointer.
template<class ChildObject>
	StrongPtr (const StrongPtr< ChildObject, ObjectBase > &Other)
	Reference pointer with dynamic type identification.
	StrongPtr (const StrongPtr< Object, ObjectBase > &Other)
	Copy constructor.
template<class ChildObject>
	StrongPtr (const WeakPtr< ChildObject, ObjectBase_t > &Other)
	Reference pointer with dynamic type identification.
	~StrongPtr ()
	Destructor, the last one cleans up and destructs the object itself.
pointer_t	getPtrValue () const
	The pointer value, checked for null.
pointer_t	operator-> () const
	The pointer operator.
refvalue_t &	operator* () const
	The dereferencing *-operator.
size_t	operator~ () const
	Convenience operator to easily retrieve the object count ID of the referenced object, a unique number for each instance.
	WeakPtr ()
	Default constructor, makes a NULL pointer.
	WeakPtr (const std::nullptr_t &)
	Explicitely construct NULL pointer.
	WeakPtr (const ReferenceBase< ObjectBase > *Obj)
	Weak pointer from reference base of object.
	WeakPtr (const ReferenceBase< ObjectBase > *Obj, const NotNullPtr &)
	Weak pointer from reference base of object which must not be null.
template<class AnyObject>
	WeakPtr (const WeakPtr< AnyObject, ObjectBase > &Other)
	Weak pointer from pointer to another class.
	WeakPtr (const WeakPtr &Other)
	Copy constructor.
	~WeakPtr ()
	Default destructor, removes weak references to the object, the last one cleans up the referrer proxy object.
WeakPtr &	assignWeak (const WeakPtr &other)
	Assign a weak pointer (explicit function call, same as assignment operator for weak pointers).
WeakPtr &	operator= (const WeakPtr &other)
	Assignment operator (same as assignWeak() ).
Public Member Functions inherited from MemCore::DynPtr< Object, ObjectBase >
const DynPtr &	getDynPtr () const noexcept
	Convenience type cast to dynamic pointer class.
const type_info &	getType () const noexcept
	Return type info of associated object, typeid(NullPtr) or typeid(void) if none.
bool	isAssignable (const DynPtr< ObjectBase, ObjectBase > &Other) const noexcept
	Check whether a given pointer to a base class may be assigned to a pointer of the derived class.
	operator void * () const noexcept
	Check if the pointer is valid.
bool	operator! () const noexcept
	Check if the pointer is invalid.
void	speak (const char *s, const char *prefix="") const noexcept
	Print some debug messages to the console.

Additional Inherited Members
Public Types inherited from MemCore::StrongPtr< Object, ObjectBase >
typedef WeakPtr< Object, ObjectBase >::ObjectBase_t	ObjectBase_t
	Exporting the base class of the reference counted objects.
Public Types inherited from MemCore::WeakPtr< Object, ObjectBase >
typedef Object	object_t
	Exporting the type of the derived class.
typedef ObjectBase	ObjectBase_t
	Exporting the type of the base class.
typedef RefPtrTypeTrait< Object, ObjectBase >::ReferencePointerType	pointer_t
	The result type of the pointer operator, may be changed with the RefPtrTypeTrait<> class.
typedef RefPtrTypeTrait< Object, ObjectBase >::ReferenceValueType	refvalue_t
	The result of the dereferencing operator, may be changed with the RefPtrTypeTrait<> class.
Public Types inherited from MemCore::DynPtr< Object, ObjectBase >
typedef Object	object_t
	Type of the associated object.
Static Public Member Functions inherited from MemCore::DynPtr< Object, ObjectBase >
static const DynPtr &	getNullPtr () noexcept
	Associated static NullPtr - avoids creation of a temporary object when a reference is needed.
Protected Member Functions inherited from MemCore::WeakPtr< Object, ObjectBase >
	WeakPtr (Object *that, const SelfInitialize &)
	Internal constructor used when initializing an object with its own self-reference.
Protected Member Functions inherited from MemCore::DynPtr< Object, ObjectBase >
template<class AnyObject>
	DynPtr (const DynPtr< AnyObject, ObjectBase > &Other) noexcept
	Implicit type conversion within the same class hierarchy Any pointer.
	DynPtr (const std::nullptr_t &) noexcept
	Assign from nullptr.
void	Speak (const char *s, const char *prefix="") const
	Verbose information printing for this pointer.

Detailed Description

template<class Type>
class Wizt::VOutput< Type >

Output properties of an object.

Given a type Alpha, the output object must declare a member

VOutput<Alpha>  myAlpha;

whereas the child object must declare a usual typed slots, such as

TypedSlot<Alpha>  myAlphaInput;

The associated global value can be accessed via the function call operator:

VOutput<Alpha>  myAlpha;
Alpha&a   = myAlpha();

Examples

InteractivePoint.cpp.

Constructor & Destructor Documentation

VOutput() [1/3]

template<class Type>

Wizt::VOutput< Type >::VOutput ( const VParameter::SourceObject_t & Source, const string & initial_name, const Type & InitValue, const RefPtr< VCreationPreferences > & CP = nullptr )

inline

Constructor:

Parameters

Source

The VObject providing this output parameter

VOutput() [2/3]

template<class Type>

Wizt::VOutput< Type >::VOutput ( VSlotContainer * Source, const string & initial_name, const Type & InitValue, const RefPtr< VCreationPreferences > & CP = nullptr )

inline

Constructor:

Parameters

Source

The VObject providing this output parameter

References Wizt::VSlotContainer::registerOutput().

VOutput() [3/3]

template<class Type>

Wizt::VOutput< Type >::VOutput ( const VSlotContainer::Deferred & )

inline

Default constructor - allows to create VOutputs with deferred construction, eventually dynamically, instead of during construction.

class   MyObject : VObject
{
     VOutput<double> MaybeOutput;

     MyObject()
     : MaybeOutput( Deferred() )
     {
        MaybeOutput = VOutput<double>(self(), "myparam", 0.5);
     }
};
