Wizt::Fish< Fiber::Grid > Struct Reference

A fish scale for dealing with dependencies on grid objects. More...

#include <FishGrid.hpp>

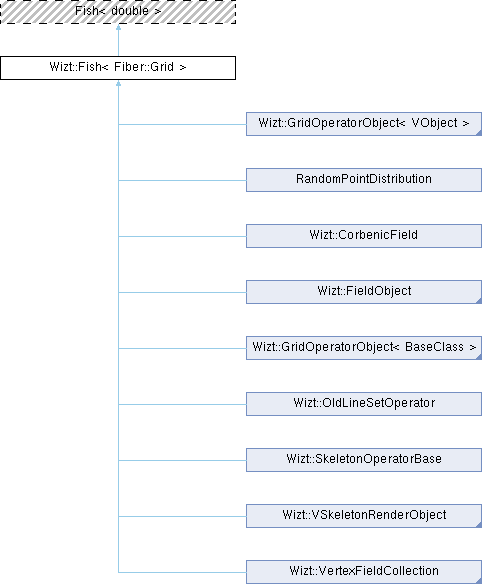

Inheritance diagram for Wizt::Fish< Fiber::Grid >:

Public Member Functions
	Fish (const string &s="grid", int prior=2)
	Constructor, optionally pass a parameter of this grid's name (ie.
virtual	~Fish ()
	Destructor.
void	registerGridAsOutput ()
	Make grid visible as output.
Fiber::Bundle::GridInfo_t	findMostRecentGrid (GridSelector &GS, const RefPtr< ValuePool > &VP, const Fiber::BundlePtr &SpaceTime=Fiber::BundlePtr(NullPtr())) const
	This is a convenience function to find the most recent grid for the current time ( Fish<Slice>() or virtual function getTime() ).
Fiber::Bundle::GridInfo_t	findMostRecentGrid (const RefPtr< ValuePool > &VP, const Fiber::BundlePtr &SpaceTime=Fiber::BundlePtr(NullPtr())) const
	Find the most recent grid for the current time ( Fish<Slice>() or virtual function getTime() ).
virtual GridSelector	getGridSelector (const RefPtr< ValuePool > &VP) const
	Provide the current Grid selector, which usually would be taken from the intrinsic TypedSlot, such as equivalent to:
Fiber::Info< Fiber::Skeleton >	getRefinementLevel (int Level, const RefPtr< ValuePool > &VP, int IndexDepth=0, const Fiber::BundlePtr &SpaceTime=Fiber::BundlePtr(NullPtr())) const override
	Get an refinement level for the given spacetime based on the GridSelector as returned by getGridSelector().
bool	IterateLevelsOnMostRecentGrid (LevelIterator &LI, const RefPtr< ValuePool > &Context, const Fiber::BundlePtr &SpaceTime=Fiber::BundlePtr(NullPtr())) const
	Iterate over all the selected levels of a Grid via an instance of the LevelIterator.
RefPtr< Fiber::Field >	getField (const Fiber::FieldSelector &FS, const RefPtr< ValuePool > &VP, const Fiber::BundlePtr &SpaceTime=Fiber::BundlePtr(NullPtr()))
	Retrieve a field for the given FieldSelector on the currently selected Grid.
Public Member Functions inherited from Wizt::Fish< double >
	Fish ()
	Default constructor.
	~Fish ()
	Destructor.
virtual double	getTime (const RefPtr< ValuePool > &VP, const RefPtr< Fiber::Bundle > &SpaceTime) const =0
	Most virtual time retrieval function.
virtual int	getMaxRefinementLevel (const RefPtr< ValuePool > &VP) const
	Get the maximum refinement level that we seek to handle here.
virtual int	getMinRefinementLevel (const RefPtr< ValuePool > &VP) const
bool	IterateLevels (LevelIterator &LI, const Fiber::Info< Fiber::Grid > &G, const RefPtr< ValuePool > &Context) const
	Iterate over the diverse refinement levels of a Grid, which may exist at times different from the given coarsest grid.
Public Member Functions inherited from Wizt::VConnectable
virtual void	adjustConnections (const RefPtr< VSlot > &ChangedSlot, const RefPtr< VParameter > &par)
VSlotContainer::AttachErrorCode	attach (const ParameterID &whichone, VSlotContainer &sourceObject, const ParameterID &sourceName)
AttachErrorCode	attach (const RefPtr< VParameter > &OldParam, const RefPtr< VParameter > &NewParam, const string &Member={})
AttachErrorCode	attachUniqueObject (const RefPtr< VParameter > &param, const RefPtr< VCreationPreferences > &VCP=NullPtr(), bool ReallyUnique=true)
AttachErrorCode	attachUniqueObject (const RefPtr< VSlot > &slot, const RefPtr< VCreationPreferences > &VCP=NullPtr(), bool ReallyUnique=true)
RefPtr< VSlot >	Connect (const RefPtr< VParameter > &SourceParam)
RefPtr< VSlot >	ConnectInterface (const RefPtr< VSlotContainer > &Provider, const RefPtr< InterfaceBase > &IB)
virtual bool	CreatedFilteredConnection (const RefPtr< VParameter > &SourceParam)
Public Member Functions inherited from Wizt::VSlotContainer
Ageable &	age (const RefPtr< ValuePool > &VP)
const Ageable &	age (const RefPtr< ValuePool > &VP) const
const Ageable &	ConnectionAge () const
bool	ConnectionsHaveChanged (const RefPtr< ValuePool > &VP) const
bool	HasYoungerInput (const RefPtr< ValuePool > &Context, int RecursionLevel=0) const
Ageable	YoungestInput (const RefPtr< ValuePool > &Context) const
Ageable	YoungestOutput (const RefPtr< ValuePool > &Context) const
Ageable	YoungestUncachedInput (const RefPtr< ValuePool > &Context) const
bool	CheckIfThereExistNewerOutputs (const VRequest &request, bool AdjustObjectAge) const
RefPtr< VSlot >	addParameter (const ParameterID &name, int EL, const RefPtr< VParameter > &param, bool overwriteExistingSlot)
virtual bool	allowParameterReplacement (const RefPtr< VParameter > &NewParam, const RefPtr< VParameter > &OldParam, const string &localName, int ExpertLevel)
virtual int	connectSlots (const VSlotContainerPtr &vobj)
bool	removeParameter (const ParameterID &s)
RefPtr< VParameter >	getParameter (const ParameterID &s) const
RefPtr< VSlot >	getSlot (const ParameterID &s, int &EL) const
bool	setSlotValueFromText (const ParameterID &s, const string &ValueText, const RefPtr< ValuePool > &VP, const string &theMember={})
RefPtr< VSlot >	findSlot (const RefPtr< VParameter > &param) const
string	getSlotName (const RefPtr< VParameter > &param) const
bool	AddAction (const ParameterID &s, const RefPtr< ValueActionBase > &VAB)
bool	AddAction (const RefPtr< VSlot > &ActionSlot, bool(DerivedObject::*Action)(const RefPtr< VValueBase > &value))
RefPtr< VParameter >	mkUniqueParameterInput (const ParameterID &s, const string &ContainerName)
int	getExpertLevel (const ParameterID &s) const
int	setExpertLevel (const ParameterID &s, int EL)
int	getExpertLevel (const RefPtr< VParameter > &) const
int	getExpertLevel (const RefPtr< VSlot > &S) const
int	setExpertLevel (const RefPtr< VSlot > &S, int EL)
int	setExpertLevel (const RefPtr< VParameter > &s, int EL)
bool	hasChanged (const ParameterID &s, const RefPtr< ValuePool > &Context) const
bool	hasChanged (const RefPtr< VSlot > &, const RefPtr< ValuePool > &Context) const
bool	hasChanged (const RefPtr< ValuePool > &Context, int n,...) const
bool	hasChanged (RefPtr< ValuePool > Context,...) const
virtual bool	ignoreInput (const RefPtr< VSlot > &theSlot) const
bool	getParameterValue (Type &Variable, const ParameterID &s, const RefPtr< ValuePool > &VP) const
bool	getParameterValue (Type &Variable, const ParameterID &s, const VContext &C) const
bool	getParameterValue (Type &Variable, const ParameterID &s, const VRequest &R) const
bool	setParameterValue (const Type &Variable, const ParameterID &s, const RefPtr< ValuePool > &VP, bool autoCreateLocalValue) const
bool	setParameterValue (const Type &Variable, const ParameterID &s, VContext &C, bool autoCreateLocalValue) const
bool	setParameterValue (const Type &Variable, const ParameterID &s, VRequest &R, bool autoCreateLocalValue=false) const
RefPtr< VSlot >	addParam (const ParameterID &name, const Type &init, const RefPtr< VCreationPreferences > &VP=NullPtr(), int expertLevel=0, bool overwriteExistingSlot=true)
bool	setParameterProperty (const ParameterID &param, const string &Properties, const RefPtr< VValueBase > &Value=NullPtr())
RefPtr< VSlot >	addFloatParam (double init, const ParameterID &param, double min, double max, const RefPtr< VCreationPreferences > &IP=NullPtr(), int expertLevel=0)
AttachErrorCode	attach (const RefPtr< VParameter > &OldParam, const RefPtr< VParameter > &NewParam, const string &Member={})
int	iterateParameters (int expertLevel, VSlotIterator &VIIt) const
int	iterateInputSlots (int expertLevel, VSlotIterator &VIIt) const
int	iterateInputs (VSlotIterator &VIIt, int expertLevel=0)
int	iterate_inputs (const std::function< bool(VSlot &what, int ExpertLevel)>) const
RefPtr< VSlot >	getUniqueInputSlot (const type_info &what)
int	getNumberOfParameters (int expertLevel) const
virtual bool	implements (const type_info &what) const
virtual RefPtr< VParameter >	getImplementation (const type_info &what, const string &name={}, const string &member={}) const
RefPtr< VSlot >	getImplementationSlot (const type_info &what, const string &Name={}, const string &Member={}) const
VAcceptInfoList_t	getAcceptInfoList (const std::type_info &request_type) const
bool	provides (const RefPtr< VSlot > &OutputSlot) const
RefPtr< VSlot >	findOutputSlot (const RefPtr< VParameter > &Who) const
bool	isYounger (const RefPtr< VParameter > &OutputParam, const RefPtr< ValuePool > &VP) const
bool	isNewlyConnected (const RefPtr< VParameter > &Who, const RefPtr< ValuePool > &VP) const
bool	hasNewlyConnectedOutputs (const RefPtr< ValuePool > &VP) const
void	findNewlyConnectedOutputs (const RefPtr< ValuePool > &VP, VSlotSet &WhichOnes) const
RefPtr< VSlot >	getOutput (const string &Name) const
RefPtr< MemCore::StringList >	getOutputs (const type_info &what=typeid(void)) const
virtual int	iterateOutputs (VOutputIterator &VOut, const type_info &just_these=typeid(void)) const
bool	registerOutput (const RefPtr< VParameter > &P, const string &AsName={})
bool	registerOutput (const RefPtr< VParameter > &P, const string &AsName, const type_info &MemberType, const string &UseMember)
bool	registerOutput (const RefPtr< VParameter > &P, const type_info &MemberType, const string &UseMember)
int	getNumberOfInputs () const
int	getNumberOfOutputs () const
bool	hasChangedSlots (const MemCore::Intercube &IC, const RefPtr< ValuePool > &Context) const
auto	include_self (const std::tuple< SlotList... > &t) const -> decltype(std::tuple_cat(std::make_tuple(this), t))
Public Member Functions inherited from MemCore::ReferenceBase< VManagedObjectBase >
auto	getObjectCountID () const noexcept
bool	isIdentical (const WeakPtr< Object, Object > &PossibleSelf) const noexcept
void	mkAutoDestructive ()
refcount_t	refcount () const noexcept
	ReferenceBase (Object *that) noexcept
const auto &	self () const
refcount_t	wrefcount () const noexcept

Public Attributes
TypedSlot< Fiber::Grid >	MyGrid
Public Attributes inherited from Wizt::VSlotContainer
	AllLevels
	DestParameterNotFound
	InvalidDestParameter

Additional Inherited Members
Public Types inherited from Wizt::VSlotContainer
enum	AttachErrorCode
typedef void	AcceptableInputTypes
typedef VSlotSet	CreationSlots_t
typedef VSlot::Empty< I >	Empty
Public Types inherited from MemCore::ReferenceBase< VManagedObjectBase >
typedef Object	reference_domain_t
typedef WeakPtr< Object, Object >	SelfPtr_t
Static Public Member Functions inherited from Wizt::VConnectable
static bool	attachSlot (const WeakPtr< VSlot > &DestSlot, const RefPtr< VParameter > &ProvidedParam, const string &Member={})
static bool	attachSlot (const WeakPtr< VSlot > &DestSlot, const RefPtr< VSlot > &SourceSlot, const string &Member={})
static bool	detachSlot (const RefPtr< VSlot > &SourceSlot)
Static Public Member Functions inherited from Wizt::VSlotContainer
static const char *	AttachErrorCodeMessage (AttachErrorCode)
static bool	attachParameter (const RefPtr< VParameter > &theProvidedParam, const WeakPtr< VSlot > &theDestSlot, const string &theMember={})
Static Public Member Functions inherited from Wizt::ValueCacheable
static ValueCache &	consider (MemCore::Intercube &IC, const WeakPtr< VSlot > &VS, const RefPtr< ValuePool > &Context)
static ValueCache &	getValueCache (MemCore::Intercube &IC)
static bool	hasChangedSlots (const WeakPtrToVSlotContainer &theSlotOwner, const MemCore::Intercube &IC, const RefPtr< ValuePool > &Context)
Protected Member Functions inherited from Wizt::VSlotContainer
virtual void	setup (const CreationSlots_t &CreationSlots)
Protected Member Functions inherited from MemCore::ReferenceBase< VManagedObjectBase >
virtual void	extremeUnction ()
ReferenceBase &	operator= (const ReferenceBase &R)
void	suicide ()

Detailed Description

A fish scale for dealing with dependencies on grid objects.

VISH input objects and routines to retrieve a Grid object from a fiber bundle data set.

Constructor & Destructor Documentation

Fish()

Wizt::Fish< Fiber::Grid >::Fish	(	const string &	s = "grid",
		int	prior = 2 )

Constructor, optionally pass a parameter of this grid's name (ie.

the name of the slot that will refer to a grid object).

References Fish().

Referenced by Wizt::FieldObject::FieldObject(), Fish(), ~Fish(), getField(), getRefinementLevel(), Wizt::VertexFieldCollection::getRefinementLevel(), and IterateLevelsOnMostRecentGrid().

Member Function Documentation

findMostRecentGrid()

Fiber::Bundle::GridInfo_t Wizt::Fish< Fiber::Grid >::findMostRecentGrid	(	GridSelector &	GS,
		const RefPtr< ValuePool > &	VP,
		const Fiber::BundlePtr &	SpaceTime = Fiber::BundlePtr(NullPtr()) ) const

This is a convenience function to find the most recent grid for the current time ( Fish<Slice>() or virtual function getTime() ).

This is only valid when using the GridSelector of the Fish's Grid. If you add a secondary Grid via a TypedSlot<Grid> you must not use this function for the second Grid. Use the findMostRecentGrid() function of the GridSelector instead. Here is an example when accessing one Fish Grid and a secondary Grid in an update() function of a VObject derived from a Fish<Grid>:

GridSelector GS1, GS2;
MyGrid  << R >> GS1; // get the GridSelector of the inherited Fish Grid
InGrid2 << R >> GS2; // get the GridSelector of the second Grid added with a TypedSlot<Grid>InGrid2

// get fish grid
Fiber::Bundle::GridInfo_t Grid1 = findMostRecentGrid( GS1, R );

// get second grid
Fiber::BundlePtr secBP   = GS2.theSourceBundle;
double      sectime = getTime(R, secBP);
Fiber::Bundle::GridInfo_t Grid2 = GS2.findMostRecentGrid( secBP, sectime );

Parameters

GS	Return information about the current grid selection.
VP	The context relative to which this selection is to be made
SpaceTime	An optional alternative spacetime from which this grid is retrieved. It will be queried under the same name and under the same time as here.

Referenced by findMostRecentGrid(), getField(), IterateLevelsOnMostRecentGrid(), Wizt::FragmentPainter::renderFragments(), Fiber::NamedField< FieldName >::update(), and Wizt::FieldObject::update().

getField()

RefPtr< Field > Wizt::Fish< Fiber::Grid >::getField	(	const Fiber::FieldSelector &	FS,
		const RefPtr< ValuePool > &	VP,
		const Fiber::BundlePtr &	SpaceTime = Fiber::BundlePtr(NullPtr() ) )

Retrieve a field for the given FieldSelector on the currently selected Grid.

This field may possibly not exist yet on this Grid and must be computed first via EvalGrid(). This may be computationally intensive.

References Fish(), findMostRecentGrid(), and Fiber::GridField::getField().

getGridSelector()

virtual GridSelector Wizt::Fish< Fiber::Grid >::getGridSelector ( const RefPtr< ValuePool > & VP ) const

virtual

Provide the current Grid selector, which usually would be taken from the intrinsic TypedSlot, such as equivalent to:

GridSelector        GS;
        MyGrid << VP >> GS;
        return GS;

However, for special cases a child class may this function and take the GridSelector from another source.

Reimplemented in Wizt::VertexFieldCollection.

Referenced by Wizt::SkeletonOperatorBase::getTime(), and Fiber::NamedField< FieldName >::update().

getRefinementLevel()

Fiber::Info< Fiber::Skeleton > Wizt::Fish< Fiber::Grid >::getRefinementLevel ( int Level, const RefPtr< ValuePool > & VP, int IndexDepth = 0, const Fiber::BundlePtr & SpaceTime = Fiber::BundlePtr(NullPtr()) ) const

overridevirtual

Get an refinement level for the given spacetime based on the GridSelector as returned by getGridSelector().

Implements Wizt::Fish< double >.

Reimplemented in Wizt::VertexFieldCollection.

References Fish(), and Wizt::Fish< double >::IterateLevels().

IterateLevelsOnMostRecentGrid()

bool Wizt::Fish< Fiber::Grid >::IterateLevelsOnMostRecentGrid ( LevelIterator & LI, const RefPtr< ValuePool > & Context, const Fiber::BundlePtr & SpaceTime = Fiber::BundlePtr( NullPtr() ) ) const

inline

Iterate over all the selected levels of a Grid via an instance of the LevelIterator.

Use code like this in a subclass derived from Fish<Field> :

struct  DataExtractor : LevelIterator
{
        bool    apply(const Fiber::Info<Fiber::Skeleton>&RefinementSkeleton,
                      int Level,
                      const RefPtr<Fiber::Grid>&GridWithCoarsetRefinementLevel,
                      const RefPtr<ValuePool>&Context) override
        {
                return true;
        }
}
DE;

IterateLevels(DE, Context);

References Fish(), and findMostRecentGrid().
