Base class to render triangular surface using shaders and support for floating origin (i.e., large coordinates). More...

#include <SurfaceRenderer.hpp>

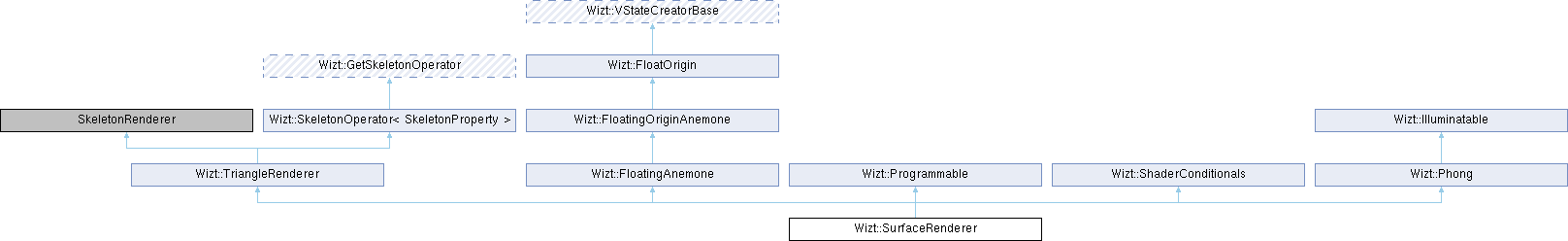

Inheritance diagram for Wizt::SurfaceRenderer:

Public Types
using	SurfaceRenderState = SkeletonRendererState

using	MyRenderState = SkeletonRendererState

using	glsl = RenderNamespace::glsl

Public Types inherited from Wizt::TriangleRenderer
using	GridInspector = Fiber::GridInspector< Fiber::hasSkeletonOfGridType< Fiber::TriangularSurface > >

Public Types inherited from Wizt::Programmable
typedef RenderBasin::Program	Program

Public Member Functions
RefPtr< AnemoneExplorer >	getAnemoneExplorer (VRenderContext &Context) const override
	The SurfaceAnemoneExplorer is a temporary object that exists while rendering all fragments of a surface.

	SurfaceRenderer (const string &name, int, const RefPtr< VCreationPreferences > &VP)

string	getSurfaceShaderPrefix (const GridAnemone::AnemoneCreationContext &ARC, const GridAnemone::AnemoneExplorer &AE) const
	Provide shader code for -+ Transformations -+ floating origin -+ uniform coordinates -+ light sources -+ shader conditionals.

virtual string	getShaderPrefix (const GridAnemone::AnemoneCreationContext &ARC, const GridAnemone::AnemoneExplorer &AE) const
	Allow to insert shader code at shader initialization.

bool	feedAnemone (Anemone &RenderAnemone, RenderBasin::ElementAttribute &SkeletonBuffer, const AnemoneCreationContext &ARC, const RefPtr< AnemoneExplorer > &AE) const override

bool	isValidAnemone (const Anemone &RenderAnemone, const AnemoneCreationContext &ARC, const RefPtr< AnemoneExplorer > &AE) const override

bool	updateAnemone (Anemone &RenderAnemone, const AnemoneCreationContext &ARC, const RefPtr< AnemoneExplorer > &AE) const override

Public Member Functions inherited from Wizt::TriangleRenderer
	TriangleRenderer (const string &name, int RenderCategory, const RefPtr< VCreationPreferences > &VP)

bool	feedAnemone (Anemone &RenderAnemone, RenderBasin::ElementAttribute &SkeletonBuffer, const AnemoneCreationContext &ARC, const RefPtr< AnemoneExplorer > &AE) const override
	Feed all triangle-related data to the Render Anemone, in particular sets the Painter of the Anemone to do triangles.

Public Member Functions inherited from Wizt::SkeletonOperator< SkeletonProperty >
RefPtr< Fiber::Skeleton >	getSkeleton (const Fiber::Grid &G) const override

RefPtr< Fiber::Skeleton >	getRefinedSkeleton (const Fiber::Grid &G, int i) const override

Public Member Functions inherited from Wizt::FloatingAnemone
string	WorldToScreen () const override

string	getShaderPrefix (const GridAnemone::AnemoneCreationContext &ARC, const GridAnemone::AnemoneExplorer &AE) const

bool	initializeTranslation (Anemone &RenderAnemone, const GridAnemone::AnemoneCreationContext &ARC, const RefPtr< GridAnemone::AnemoneExplorer > &AE) const

bool	updateTranslation (Anemone &RenderAnemone, const GridAnemone::AnemoneCreationContext &ARC, const RefPtr< GridAnemone::AnemoneExplorer > &AE) const

RefPtr< GridAnemone::AnemoneExplorer >	getAnemoneExplorer (const WeakPtr< GridAnemone > &theGridAnemone, VRenderContext &Context) const

Public Member Functions inherited from Wizt::FloatingOriginAnemone
RefPtr< GridAnemone::AnemoneExplorer >	getAnemoneExplorer (const WeakPtr< GridAnemone > &theGridAnemone, VRenderContext &Context) const

bool	hasChangedAbsoluteTranslationVector (const RefPtr< GridAnemone::AnemoneExplorer > &AE) const

Public Member Functions inherited from Wizt::FloatOrigin
RefPtr< Chunk< Eagle::point3 > >	computeShiftedCoordinates (const RefPtr< Chunk< Eagle::point3 > > &RawCoordinates, const Eagle::tvector3 &TranslationVector) const

VRenderContext::ModelViewState	getCoordinateTranslation (const VRenderContext &Context, Eagle::tvector3 &TranslationVector) const

VRenderContext::ModelViewState	getCoordinateTranslation (const VRenderContext &Context, Intercube &IC, Eagle::tvector3 &TranslationVector) const

Public Member Functions inherited from Wizt::VStateCreatorBase
RefPtr< State > &	getState (const WeakPtr< ValuePool > &VP) const

RefPtr< InterfaceBase >	hasLocalInterface (const type_info &InterfaceType) const

RefPtr< State >	myState (const WeakPtr< ValuePool > &Context) const

virtual RefPtr< State >	newState () const

void	setState (const WeakPtr< ValuePool > &, const RefPtr< State > &st) const

Public Member Functions inherited from Wizt::Programmable
RefPtr< RenderBasin::Program >	CompileShader (VRenderContext &Context, const std::string &Name, const RenderBasin::Program::Setup &SetupFunction=nullptr, const RefPtr< RenderBasin::Program > &ExistingProgram=NullPtr(), const glsl &LocalVertexShaderPrefixCode="", const glsl &LocalGeometryShaderPrefixCode="", const glsl &LocalFragmentShaderPrefixCode="") const

void	enableViewportArray (bool EnableFragmentLayerViewport=true)

virtual glsl	fragment_shader (VRenderContext &Context) const=0

virtual glsl	geometry_shader (VRenderContext &Context) const

virtual glsl	GeometryShaderPrefix (VRenderContext &Context) const

std::pair< glsl, string >	getCode (VRenderContext &Context, const std::string &Name, const std::string &Ext, std::string(Programmable::*shader)(VRenderContext &Context) const, const string &PrefixCode) const

void	setGLSLVersion (const string &v_version, const string &g_version, const string &f_version)

void	setGLSLVersion (const string &version)

virtual glsl	vertex_shader (VRenderContext &Context) const=0

Public Member Functions inherited from Wizt::ShaderConditionals
RenderNamespace::glsl	getShaderDefines (const RefPtr< ValuePool > &Context) const

bool	hasValidShaderDefines (const AnemoneCreatorContext &ACC) const

Additional Inherited Members
Static Public Member Functions inherited from Wizt::TriangleRenderer
static RefPtr< RenderBasin::VertexAttribute >	getNormals (const AnemoneCreationContext &ARC)
	Query the per-vertex normal vectors for the current triangle fragment as specified via the AnemoneCreationContext and create a vertex attribute from it.

static void	computeVertexNormals (Fiber::Representation &myVertices, Fiber::Representation &mySkeletonAsVertices, VRequest &Context)
	Compute normals in case we don't have any yet.

Static Public Member Functions inherited from Wizt::FloatingAnemone
static RefPtr< RenderBasin::VertexAttribute >	createPossiblyShiftedVertices (const RefPtr< TypedChunk< Eagle::PhysicalSpace::point > > &Coordinates, const BoundingBox &BBox, const GridAnemone::AnemoneCreationContext &ARC, const RefPtr< GridAnemone::AnemoneExplorer > &AE)
	If the AnemoneExplorer is a FloatingAnemoneExplorer (which will be the case if getAnemoneExplorer() has been implemented as documented), then shift coordinates into the center of the bounding box, create a vertex attribute from it and set a CoordinateShift interface to the AnemoneExplorer.

static RefPtr< RenderBasin::VertexAttribute >	createPossiblyShiftedVertices (const RefPtr< Fiber::MemBase > &Coordinates, const BoundingBox &BBox, const GridAnemone::AnemoneCreationContext &ARC, const RefPtr< GridAnemone::AnemoneExplorer > &AE, const MemCore::Attributes &Attribs, bool AllowProceduralCoordinates)
	If the AnemoneExplorer is a FloatingAnemoneExplorer (which will be the case if getAnemoneExplorer() has been implemented as documented), then shift coordinates into the center of the bounding box, create a vertex attribute from it and set a CoordinateShift interface to the AnemoneExplorer.

static std::pair< RefPtr< RenderBasin::VertexAttribute >, bool >	createPossiblyShiftedVertices (Fiber::CreativeArrayBase &myPrimaryDataFragment, const GridAnemone::AnemoneCreationContext &ARC, const RefPtr< GridAnemone::AnemoneExplorer > &AE, bool AllowProceduralCoordinates, const Fiber::CreativeArrayBase::result &AsyncCallback)
	Same as similar function, but using a Creator to create the coordinates and possibly compute the bounding box information.

Static Public Member Functions inherited from Wizt::FloatingOriginAnemone
static RefPtr< RenderBasin::VertexAttribute >	createPossiblyShiftedVertices (const RefPtr< TypedChunk< Eagle::PhysicalSpace::point > > &Coordinates, const GridAnemone::AnemoneCreationContext &ARC, const RefPtr< GridAnemone::AnemoneExplorer > &AE)

Static Public Member Functions inherited from Wizt::FloatOrigin
static VRenderContext::ModelViewState	getTranslationVector (const VRenderContext &Context, Intercube &IC, Eagle::tvector3 &TranslationVector, double CameraShiftThreshold)

static Eagle::tvector3	getTranslationVector (Intercube &IC)

Static Public Member Functions inherited from Wizt::Programmable
static string	OptionalFileRead (const string &filename, const string &text)

static glsl	setNumberOfLightSources (VRenderContext &Context, const std::string &VariableName="lightNum")

Static Public Member Functions inherited from Wizt::Phong
static std::string	PhongShaderFunction ()
	vec4 Phong(vec4 VertexInEyeSpace, vec3 NormalInEyeSpace, vec4 DiffuseColor, float shininess, float sidedness);

Static Public Member Functions inherited from Wizt::Illuminatable
static RenderBasin::glsl	DefineLightSources (VRenderContext &Context)

static bool	feedAnemone (VRenderContext &Context, AnemoneCreatorBase &AC)

static bool	feedAnemone (const AnemoneCreatorContext &ACC)

static bool	isValidAnemone (VRenderContext &Context, const AnemoneCreatorBase &AC)
	Check for consistency of the number of light sources.

static bool	isValidAnemone (VRenderContext &Context, const WeakPtr< AnemoneCreatorBase > &AC)
	Check for consistency of the number of light sources.

static bool	isValidAnemone (const AnemoneCreatorContext &ACC)
	Check for consistency of the number of light sources.

Public Attributes inherited from Wizt::Programmable
glsl	f_prefix

glsl	g_prefix

RenderBasin::GeometryInputType	GeometryInput

RenderBasin::GeometryOutputType	GeometryOutput

glsl	v_prefix

Static Public Attributes inherited from Wizt::Programmable
static const char	default_fragment_shader []

static const char	default_geometry_shader []

static const char	default_vertex_shader []

Detailed Description

Base class to render triangular surface using shaders and support for floating origin (i.e., large coordinates).

The shader must support usage of the TranslationVector, which is needed to shift vertices by this amount.

uniform vec3 TranslationVector;

void main(void)
{
vec4 trans = vec4(TranslationVector, 0);
vec4 Vertex = gl_Vertex - trans;

        gl_Position = gl_ModelViewProjectionMatrix*Vertex;
}

Member Function Documentation

◆ getAnemoneExplorer()

RefPtr< SurfaceRenderer::AnemoneExplorer > Wizt::SurfaceRenderer::getAnemoneExplorer ( VRenderContext & Context ) const

override

The SurfaceAnemoneExplorer is a temporary object that exists while rendering all fragments of a surface.

It is created with the first fragment and destroyed with the last fragment. As such, it defines the scope of a FloatOrigin operation and stores the ModelView matrix which is locally modified during rendering.

Todo:: Use FloatingAnemoneExplorer here.

Create an AnemoneExplorer that lives during the duration of the rendering operation and shifts the coordinate origin according to the FloatOrigin base class specification.
