Wizt::TriangleRenderer Class Reference

Base class for objects that render information given on the triangle of a Grid. More...

#include <TriangleRenderer.hpp>

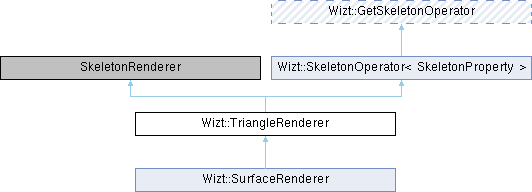

Inheritance diagram for Wizt::TriangleRenderer:

Public Types
using	GridInspector = Fiber::GridInspector< Fiber::hasSkeletonOfGridType< Fiber::TriangularSurface > >

Public Member Functions
	TriangleRenderer (const string &name, int RenderCategory, const RefPtr< VCreationPreferences > &VP)
bool	feedAnemone (Anemone &RenderAnemone, RenderBasin::ElementAttribute &SkeletonBuffer, const AnemoneCreationContext &ARC, const RefPtr< AnemoneExplorer > &AE) const override
	Feed all triangle-related data to the Render Anemone, in particular sets the Painter of the Anemone to do triangles.
Public Member Functions inherited from Wizt::SkeletonOperator< SkeletonProperty >
RefPtr< Fiber::Skeleton >	getSkeleton (const Fiber::Grid &G) const override
RefPtr< Fiber::Skeleton >	getRefinedSkeleton (const Fiber::Grid &G, int i) const override

Static Public Member Functions
static RefPtr< RenderBasin::VertexAttribute >	getNormals (const AnemoneCreationContext &ARC)
	Query the per-vertex normal vectors for the current triangle fragment as specified via the AnemoneCreationContext and create a vertex attribute from it.
static void	computeVertexNormals (Fiber::Representation &myVertices, Fiber::Representation &mySkeletonAsVertices, VRequest &Context)
	Compute normals in case we don't have any yet.

Detailed Description

Base class for objects that render information given on the triangle of a Grid.

No shader support here. Use class SurfaceRenderer for more advanced features, including FloatingOrigin.

Todo:

Current implementation does not support caching of multiple grids, e.g. time-dependent data.

Examples

CrystalSurface.cpp, EvolutionSurface.cpp, MonochromeSurface.cpp, PolychromeSurface.cpp, TransparentColoredSurface.cpp, and TransparentSurface.cpp.

Member Function Documentation

computeVertexNormals()

void Wizt::TriangleRenderer::computeVertexNormals ( Fiber::Representation &  myVertices, Fiber::Representation &  mySkeletonAsVertices, VRequest &  Context  )

static

Compute normals in case we don't have any yet.

This is a static member function just for convenience which will create a normal vector field on the vertices under the name TriangularSurface::NormalVectorFieldName .

References Fiber::TriangularSurface::NormalVectorFieldName.

getNormals()

RefPtr< RenderBasin::VertexAttribute > Wizt::TriangleRenderer::getNormals ( const AnemoneCreationContext &  ARC )

static

Query the per-vertex normal vectors for the current triangle fragment as specified via the AnemoneCreationContext and create a vertex attribute from it.

The result can be directly fed to a RenderAnemone:

AnemoneCreationContext&ARC;
     RenderAnemone.insert( getNormals( ARC ) );

References Fiber::TriangularSurface::NormalVectorFieldName.
