Wizt::FloatingAnemone Struct Reference

#include <FloatingAnemone.hpp>

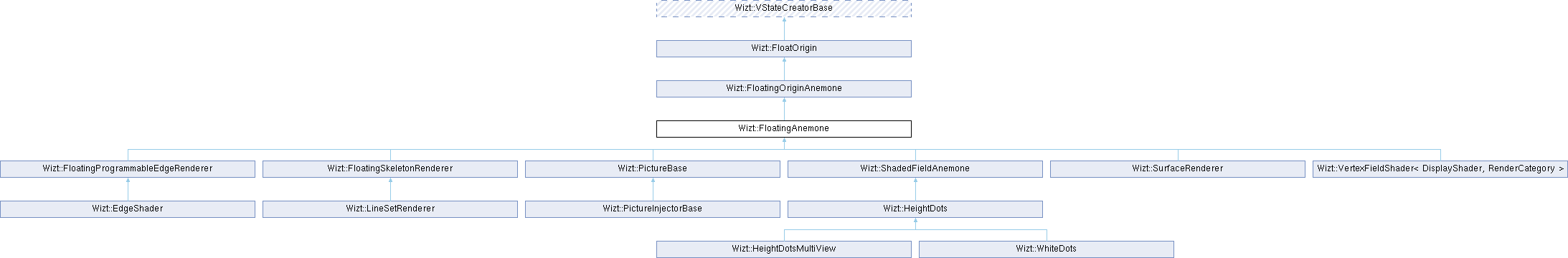

Inheritance diagram for Wizt::FloatingAnemone:

Public Member Functions
string	WorldToScreen () const override
	The name of the shader parameter used to store the translation vector.
string	getShaderPrefix (const GridAnemone::AnemoneCreationContext &ARC, const GridAnemone::AnemoneExplorer &AE) const
bool	initializeTranslation (Anemone &RenderAnemone, const GridAnemone::AnemoneCreationContext &ARC, const RefPtr< GridAnemone::AnemoneExplorer > &AE) const
	Call this function from.
bool	updateTranslation (Anemone &RenderAnemone, const GridAnemone::AnemoneCreationContext &ARC, const RefPtr< GridAnemone::AnemoneExplorer > &AE) const
RefPtr< GridAnemone::AnemoneExplorer >	getAnemoneExplorer (const WeakPtr< GridAnemone > &theGridAnemone, VRenderContext &Context) const
	Provide GLSL code defining uniform variables that relate to the floating origin approach.
Public Member Functions inherited from Wizt::FloatingOriginAnemone
RefPtr< GridAnemone::AnemoneExplorer >	getAnemoneExplorer (const WeakPtr< GridAnemone > &theGridAnemone, VRenderContext &Context) const
	Creation of an AnemoneExplorer that takes care of the floating origin during rendering, it needs to be overridden in a child class of GridAnemone like this:
bool	hasChangedAbsoluteTranslationVector (const RefPtr< GridAnemone::AnemoneExplorer > &AE) const
Public Member Functions inherited from Wizt::FloatOrigin
RefPtr< Chunk< Eagle::point3 > >	computeShiftedCoordinates (const RefPtr< Chunk< Eagle::point3 > > &RawCoordinates, const Eagle::tvector3 &TranslationVector) const
VRenderContext::ModelViewState	getCoordinateTranslation (const VRenderContext &Context, Eagle::tvector3 &TranslationVector) const
VRenderContext::ModelViewState	getCoordinateTranslation (const VRenderContext &Context, Intercube &IC, Eagle::tvector3 &TranslationVector) const
Public Member Functions inherited from Wizt::VStateCreatorBase
RefPtr< State > &	getState (const WeakPtr< ValuePool > &VP) const
RefPtr< InterfaceBase >	hasLocalInterface (const type_info &InterfaceType) const
RefPtr< State >	myState (const WeakPtr< ValuePool > &Context) const
virtual RefPtr< State >	newState () const
void	setState (const WeakPtr< ValuePool > &, const RefPtr< State > &st) const

Static Public Member Functions
static RefPtr< RenderBasin::VertexAttribute >	createPossiblyShiftedVertices (const RefPtr< TypedChunk< Eagle::PhysicalSpace::point > > &Coordinates, const BoundingBox &BBox, const GridAnemone::AnemoneCreationContext &ARC, const RefPtr< GridAnemone::AnemoneExplorer > &AE)
	If the AnemoneExplorer is a FloatingAnemoneExplorer (which will be the case if getAnemoneExplorer() has been implemented as documented), then shift coordinates into the center of the bounding box, create a vertex attribute from it and set a CoordinateShift interface to the AnemoneExplorer.
static RefPtr< RenderBasin::VertexAttribute >	createPossiblyShiftedVertices (const RefPtr< Fiber::MemBase > &Coordinates, const BoundingBox &BBox, const GridAnemone::AnemoneCreationContext &ARC, const RefPtr< GridAnemone::AnemoneExplorer > &AE, const MemCore::Attributes &Attribs, bool AllowProceduralCoordinates)
	If the AnemoneExplorer is a FloatingAnemoneExplorer (which will be the case if getAnemoneExplorer() has been implemented as documented), then shift coordinates into the center of the bounding box, create a vertex attribute from it and set a CoordinateShift interface to the AnemoneExplorer.
static std::pair< RefPtr< RenderBasin::VertexAttribute >, bool >	createPossiblyShiftedVertices (Fiber::CreativeArrayBase &myPrimaryDataFragment, const GridAnemone::AnemoneCreationContext &ARC, const RefPtr< GridAnemone::AnemoneExplorer > &AE, bool AllowProceduralCoordinates, const Fiber::CreativeArrayBase::result &AsyncCallback)
	Same as similar function, but using a Creator to create the coordinates and possibly compute the bounding box information.
Static Public Member Functions inherited from Wizt::FloatingOriginAnemone
static RefPtr< RenderBasin::VertexAttribute >	createPossiblyShiftedVertices (const RefPtr< TypedChunk< Eagle::PhysicalSpace::point > > &Coordinates, const GridAnemone::AnemoneCreationContext &ARC, const RefPtr< GridAnemone::AnemoneExplorer > &AE)
Static Public Member Functions inherited from Wizt::FloatOrigin
static VRenderContext::ModelViewState	getTranslationVector (const VRenderContext &Context, Intercube &IC, Eagle::tvector3 &TranslationVector, double CameraShiftThreshold)
static Eagle::tvector3	getTranslationVector (Intercube &IC)

Detailed Description

Author

Werner Benger

Supporting Render Anemone API using shaders via FloatOrigin support. There will be two translations involved:

• The translation by the camera
• The translation of the data The difference between both translations must be computed on the CPU in double precision, the GPU does not have sufficient precision with its 32 bit floats.

Member Function Documentation

createPossiblyShiftedVertices() [1/2]

RefPtr< RenderBasin::VertexAttribute > Wizt::FloatingAnemone::createPossiblyShiftedVertices ( const RefPtr< Fiber::MemBase > & Coordinates, const BoundingBox & BBox, const GridAnemone::AnemoneCreationContext & ARC, const RefPtr< GridAnemone::AnemoneExplorer > & AE, const MemCore::Attributes & Attribs, bool AllowProceduralCoordinates )

static

If the AnemoneExplorer is a FloatingAnemoneExplorer (which will be the case if getAnemoneExplorer() has been implemented as documented), then shift coordinates into the center of the bounding box, create a vertex attribute from it and set a CoordinateShift interface to the AnemoneExplorer.

Otherwise, just load the coordinates as is.

Calls FloatingAnemoneExplorer::computeCenterShift().

createPossiblyShiftedVertices() [2/2]

std::pair< RefPtr< RenderBasin::VertexAttribute >, bool > Wizt::FloatingAnemone::createPossiblyShiftedVertices ( Fiber::CreativeArrayBase & myPrimaryDataFragment, const GridAnemone::AnemoneCreationContext & ARC, const RefPtr< GridAnemone::AnemoneExplorer > & AE, bool AllowProceduralCoordinates, const Fiber::CreativeArrayBase::result & AsyncCallback )

static

Same as similar function, but using a Creator to create the coordinates and possibly compute the bounding box information.

The bool return value tells whether the data are yet under creation, assign as:

const auto&[VertexAttribute,YetUnderCreation] = createPossiblyShiftedVertices(...);

References MemCore::CreatorBase< class Domain >::create(), createPossiblyShiftedVertices(), MemCore::CreatorBase< class Domain >::get(), Wizt::GridAnemoneCreationContext::getCurrentFragmentName(), MemCore::CreatorBase< class Domain >::request(), and MemCore::Timer::secs().

getAnemoneExplorer()

RefPtr< GridAnemone::AnemoneExplorer > Wizt::FloatingOriginAnemone::getAnemoneExplorer	(	const WeakPtr< GridAnemone > &	theGridAnemone,
		VRenderContext &	Context ) const

Provide GLSL code defining uniform variables that relate to the floating origin approach.

This GLSL code can be embedded into vertex, geometry or fragment shaders equally. The provided code is equivalent to:

// The translational part of the model view matrix
uniform vec3 vish_translation;

// The value by which vertices in a vertex array are offset from their real value.
//
// To improve numerical accuracy, vertices are shifted before uploading
// to the GPU by a certain shift vector, which is usually the center
// of the bounding box surrounding an Anemone.
//
uniform vec3 vish_origin;

// The camera observer location relative to the vertex translation
uniform vec3 vish_relative_observer;

// compute actual world coordinates from shifted vertex coordinates
vec3    vish_WorldPosition(in vec3 theVertex);

// project shifted vertex coordinates to screen coordinates
vec4    vish_ftransform(vec4 Vertex);


#ifdef  VERTEX_SHADER
// get absolute coordinates of current vertex, also works for procedural (e.g. uniform) coordinates
vec4 vish_gl_Position();

// get relative coordinates of current vertex, also works for procedural (e.g. uniform) coordinates
vec4 vish_gl_RelativePosition();
#endif

Referenced by Wizt::SurfaceRenderer::getAnemoneExplorer().

initializeTranslation()

bool Wizt::FloatingAnemone::initializeTranslation	(	Anemone &	RenderAnemone,
		const GridAnemone::AnemoneCreationContext &	ARC,
		const RefPtr< GridAnemone::AnemoneExplorer > &	AE ) const

Call this function from.

AnemoneRenderStatus initializeAnemone(Anemone&RenderAnemone,
                                     const AnemoneCreationContext&ARC,
                                     const RefPtr<AnemoneExplorer>&AE) const override;

in a child class of GridAnemone after computing shifted vertices via createPossiblyShiftedVertices() or similar functions that define the internal shift vector.

References Wizt::FloatingAnemoneExplorer::initializeTranslation().

Referenced by Wizt::EdgeShader::feedAnemone(), Wizt::FloatingSkeletonRenderer::feedAnemone(), Wizt::SurfaceRenderer::feedAnemone(), and WorldToScreen().

WorldToScreen()

string Wizt::FloatingAnemone::WorldToScreen ( ) const

override

The name of the shader parameter used to store the translation vector.

Shader code must be of the form such as:

uniform vec3 TranslationVector;

void main(void)
{
vec4    theVertex = gl_Vertex;
vec4    theVertex_EyeSpace = gl_ModelViewMatrix*(theVertex-vec4(TranslationVector,0));
        gl_Position = gl_ProjectionMatrix*theVertex_EyeSpace;

}
@endcod

        This name can be modified in a subclass if required. It will be used
        when initializing a Render Anemone via the initializeAnemone() call.
          /
//      string  TranslationVectorUniformName = "TranslationVector";

        /**
           To improve numerical accuracy, vertices are shifted before uploading
           to the GPU by a certain shift vector, which is usually the center
           of the bounding box surrounding an Anemone. This shift vector
           shows up in the shader code under this given name as defined
           here. A child class can change this name if another one is
           desired for some reason.
          */
//      string  CenterShiftVectorUniformName = "CenterShift";

//      [[deprecated("This is actually the vertex offset by which vertices are shifted")]]
//      const char*getFloatingOrigin() const;

//      string  RelativeObserverUniformName = "RelativeObserver";

        ~FloatingAnemone();

#if     0
static  string  WorldToScreen(const string&TranslationVectorName);

        /**
           Shader function to define uniform variable and function
           for translation-corrected vertices.
           @code
uniform vec3 TranslationVector;

vec4    WorldToScreen(vec4 theVertex)
{
vec4    theVertex_EyeSpace = gl_ModelViewMatrix*(theVertex-vec4(TranslationVector,0));
        return gl_ProjectionMatrix*theVertex_EyeSpace;
}

References createPossiblyShiftedVertices(), Wizt::FloatingOriginAnemone::getAnemoneExplorer(), and initializeTranslation().
