Wizt::Illuminatable Struct Reference

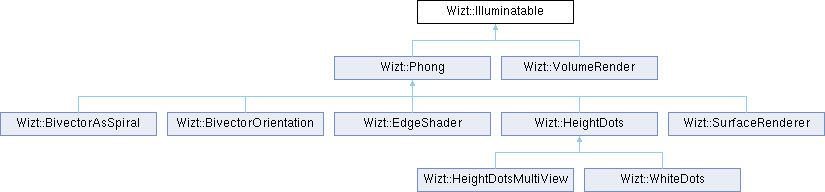

Inheritance diagram for Wizt::Illuminatable:

Classes
struct	NumberOfLightSources

Static Public Member Functions
static RenderBasin::glsl	DefineLightSources (VRenderContext &Context)
	Define the shader variable lightNum that contains the number of active light sources.
static bool	feedAnemone (VRenderContext &Context, AnemoneCreatorBase &AC)
static bool	feedAnemone (const AnemoneCreatorContext &ACC)
static bool	isValidAnemone (VRenderContext &Context, const AnemoneCreatorBase &AC)
	Check for consistency of the number of light sources.
static bool	isValidAnemone (VRenderContext &Context, const WeakPtr< AnemoneCreatorBase > &AC)
	Check for consistency of the number of light sources.
static bool	isValidAnemone (const AnemoneCreatorContext &ACC)
	Check for consistency of the number of light sources.

Member Function Documentation

DefineLightSources()

std::string Wizt::Illuminatable::DefineLightSources ( VRenderContext &  Context )

static

Define the shader variable lightNum that contains the number of active light sources.

const int lightNum =  NumberOfActiveLightSources;

IF GLSL is higher than version 130, then it also defines an array of light direction, an eye vector and a function

void    SetupLightSources(vec4 Vertex);

that is to be called with full-world vertex coordinates. This function is enabled if

v_prefix = "#version 130\n";

in a derived constructor.

References Wizt::embed_glsl(), and MemCore::to_string().
