Base class for objects that may display something. More...

#include <ocean/Anemonia/VRenderContext.hpp>

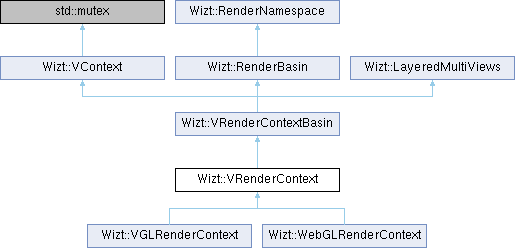

Inheritance diagram for Wizt::VRenderContext:

Classes
struct	DepthMode
	Support for depth modes as discussed in: https://stannum.io/blog/0UZsbE. More...

class	Font
	Base class for fonts. More...

struct	Jitter
	A structure to define a little offset from the main camera settings. More...

struct	ModelViewMatrixState
	Abstract base class for a status that preserves the current model view matrix. More...

Public Types
using	RenderResult = std::tuple< int, int >
	A render result are two integers, telling the number of completely and incompletely rendered objects.

using	tvector3 = Eagle::tvector3
	Convenience typedef for using tangential vectors.

Public Types inherited from Wizt::RenderBasin
using	RPtr = MemCore::RefPtr< RenderParameter >
	Convenience Shortcut.

Public Types inherited from Wizt::RenderNamespace
using	AnyUniform = std::variant< int, float, double, unsigned, Eagle::FixedArray< int, 2 >, Eagle::FixedArray< float, 2 >, Eagle::FixedArray< double, 2 >, Eagle::FixedArray< int, 3 >, crd3f, Eagle::FixedArray< float, 3 >, crd3d, Eagle::FixedArray< double, 3 >, Eagle::FixedArray< int, 4 >, Eagle::FixedArray< float, 4 >, Eagle::FixedArray< double, 4 >, Eagle::Quadratic< 2, float >, Eagle::Quadratic< 3, float >, Eagle::Quadratic< 4, float >, vec3f_vector, crd3f_vector >
	A variant that may carry all currently supported data types that can be used as a uniform variable in a GLSL shader.

enum	GeometryInputType
	Input type for geometry shaders.

enum	GeometryOutputType
	Output type for geometry shader.

using	glsl = std::string
	An alias name for strings such that the return value of functions providing GLSL code can be spotted easier.

enum	Primitive { POINTS , LINE_STRIP , LINE_LOOP , LINES , TRIANGLE_STRIP , TRIANGLE_FAN , TRIANGLES , QUAD_STRIP , QUADS , POLYGON , LINES_ADJACENCY , TRIANGLES_ADJACENCY , LINE_STRIP_ADJACENCY , TRIANGLE_STRIP_ADJACENCY }
	Enumeration type for primitives, similar to OpenGL (but numerically not identical). More...

enum	TextureFormat
	Enum for the type of texture to be used, implying the number of color channels and their meaning.

enum	VertexAttributeTypes { COORDINATES , NORMALS , COLORS , SECONDARY_COLORS , TEXTURE0 , TEXTURE1 , USER_DEFINED }
	Categories of vertex attributes for OpenGL default shader attributes, to be used in conjunction with RenderBasin::AttributeNames() and RenderBasin::createVertexAttribute(). More...

Public Types inherited from Wizt::LayeredMultiViews
using	LayeredViews_t = std::vector< ProjectionLayerViews_t >
	Data structure for the internal LayeredViews member, which is indexed by:

Public Member Functions
bool	allowRendering (Anemone &RenderAnemone)
	Check if the given Anemone fits into the AvailableGPURAM, and if so, subtract its memsize() from it and return true.

virtual MemCore::RefPtr< Anemone::Tentacle >	createFontTentacle (const string &text, const VTextRenderProperties &VTRP, const RefPtr< Font > &theFont) const
	Create a Tentacle to render text.

template<class Type >
MemCore::RefPtr< RenderParameter >	createRenderSlot (const std::string &what, const TypedSlot< Type > &InputSlot)
	Create a cached render parameter with an explicit name from an VObject's input using the current value of this slot.

template<class Type , class Modifier >
MemCore::RefPtr< RenderParameter >	createRenderSlot (const std::string &what, const TypedSlot< Type > &InputSlot, const Modifier &M)
	Couple a TypedSlot with a uniform variable of some Shader.

template<class Type >
MemCore::RefPtr< RenderParameter >	createRenderSlot (const std::string &what, const TypedSlot< Type > &InputSlot, const Type &DefaultValue)
	Create a cached render parameter with an explicit name from an VObject's input and given default value.

template<class Type >
RPtr	createRenderSlot (const std::string &what, const TypedSlot< Type > &InputSlot, const Type &DefaultValue, const WeakPtr< ValuePool > &Context)
	Create a render parameter that will be connected to a given TypedSlot such that a dependency is considered and Anemone::updateValues() handles this input slot.

template<class Type >
MemCore::RefPtr< RenderParameter >	createRenderSlot (const std::string &what, const VObject::in< Type > &InputSlot)
	Create a cached render parameter with an explicit name from an VObject's input.

template<class Type >
MemCore::RefPtr< RenderParameter >	createRenderSlot (const TypedSlot< Type > &InputSlot)
	Create a cached render parameter from an VObject's typed slot which will be named identical to the object's slot, using its current value.

template<class Type >
MemCore::RefPtr< RenderParameter >	createRenderSlot (const VObject::in< Type > &InputSlot)
	Create a cached render parameter from an VObject's input slot which will be named identical to the object's input.

double	getAspectRatio () const
	Width / Height of the current output device, i.e.

const VCamera &	getCameraSettings (unsigned Eye, unsigned int ViewportIndex=0) const
	Properties of the camera.

virtual RefPtr< Font >	getFont (const std::list< string > &fontnames={}, Font::Type=Font::Type(), Font::RenderHint=Font::RenderHint::Extruded, const RefPtr< VCreationPreferences > &prefs=nullptr)
	Get a font object.

const Eagle::PhysicalSpace::Frustum &	getFrustum (unsigned Eye, unsigned int ViewportIndex=0) const
	The view frustum related to the current CameraSettings.

double	getViewportAspectRatio (unsigned int ViewportIndex=0) const
	Return the aspect ratio of the current viewer window, i.e. width / height. Returns 1.0 if no output medium is defined.

virtual bool	isCancelled ()
	Virtual callback function that tells if this render context is supposed to be cancelled (stopped).

int	isVisible (const Eagle::BoundingBox &DataBBox, unsigned Eye=0) const
	View Frustum Culling; test if AA-BoundingBox is visible.

virtual bool	notifyError (const RenderAble &ErrorObject, const RenderException &theError)
	Optional function for logging errors.

virtual void	openEye (unsigned EyeNumber)
	The frustum parameters are set into the View structure as provided in.

virtual RefPtr< PickList >	pick (const ObjectSelection &theRenderObjects, int X, int Y, int DX, int DY, int MinLevel=CAMERA_OBJECT-1, int MaxLevel=RENDER_LAST)=0
	Feedback buffer rendering, considering the objects given in the provided selection.

RefPtr< PickList >	pick (const ViewportGeometry &PickArea, const ObjectSelection &theRenderObjects, int MinLevel=CAMERA_OBJECT-1, int MaxLevel=RENDER_LAST)
	Return a touch list covering the given pick area, using the specified render objects.

RefPtr< PickList >	pick (const ViewportGeometry &PickArea, int MinLevel=CAMERA_OBJECT-1, int MaxLevel=RENDER_LAST)
	Return a touch list covering the given pick area, using the internally stored objects.

RefPtr< PickList >	pick (int X, int Y, int DX, int DY, int MinLevel=CAMERA_OBJECT-1, int MaxLevel=RENDER_LAST)
	Pick objects in the current area, as they are specified in the internal myRenderObjects list.

RenderResult	render (double &RenderTime, int MinLevel=RENDER_FIRST, int MaxLevel=RENDER_LAST)
	Render all objects as specified in ObjectSelection RenderObjects.

virtual RenderResult	render (ObjectSelection &theRenderObjects, double &RenderTime, int MinLevel=RENDER_FIRST, int MaxLevel=RENDER_LAST)=0
	Implementation-specific function to traverse all objects that ought to be rendered.

void	setLightSources (const ObjectSelection &theRenderObjects) const
	Update the light sources that reside at the seagrass cache which is associated with this render context as permanent storage item.

virtual ViewportGeometry	viewport (unsigned int ViewportIndex=0) const =0
	Return the viewport properties of the render context, as set by glViewport();.

	VRenderContext (const SeagrassWeakPtr_t &theSeagrass, const WeakPtr< Interruptor > &theInterruptor, const RefPtr< VRenderPrecision > &Hints, unsigned NumberOfEyes, int64_t AvailableGPURAM)
	Constructor, provide render hints.

virtual	~VRenderContext ()
	Constructor.

Projections
Member functions in this group modify the projection, in particular the OpenGL projection matrix if implemented in a child class.
void	setProjectionFrustum (const Eagle::PhysicalSpace::Viewport &CameraRelativeFrustum, double zNear, double zFar, bool Orthographic, unsigned Eye, const Jitter &jittering, unsigned int ViewportIndex=0)
	Load the OpenGL projection matrix.

void	setTileAwareFrustum (double FrameScaleFactor, const Eagle::PhysicalSpace::Viewport &CameraRelativeFrustum, double Near, double Far, bool Orthographic, unsigned Eye, const Jitter &jittering, unsigned int ViewportIndex=0)
	Consider PixelZoom and Tile parameters to compute a local viewport from the Frame and FrameScaleFactor, then call setProjectionFrustum().

void	setTileAwarePerspective (double fovy, double Near, double Far, bool Orthographic, unsigned Eye, const Jitter &jittering, unsigned int ViewportIndex=0)
	Set the projection in the current view.

void	setEyeView (const VCamera &theCameraSettings, double Near, double Far, bool Orthographic, unsigned EyeNumber, double ZeroParallaxDistance, double EyeSeparation, unsigned int ViewportIndex=0, bool ToeIn=false)
	Given a camera (note that it will be modified during this call if the camera settings are a reference to getCameraSettings(0) ) and stereo vision parameters, set a modified camera and a shifted, asymmetric frustum suitable for stereo rendering.

void	setPerspective (double Near, double Far, bool Orthographic)
	Simplified version of setTileAwarePerspective(), very similar to gluPerspective() .

void	setPerspective (double fovy, double Near, double Far, bool Orthographic)
	Simplified version of setTileAwarePerspective(), very similar to gluPerspective() .

void	setTileAwareIdentity (unsigned Eye, double Near=0.0, double Far=2.0, const Jitter &jittering=defaultJitter(), unsigned int ViewportIndex=0)
	Set projection such that the viewport maps to [-1,-1]x[1,1].

Public Member Functions inherited from Wizt::VRenderContextBasin
void	queue (const ComputationFunctor &CF) const
	Schedule a computational functor for execution in a separate thread which has access to the same opengl ID resources.

Public Member Functions inherited from Wizt::VContext
	operator const RefPtr< ValuePool > & () const
	A VContext may be implicitely converted into a reference pointer to a ValuePool.

template<typename... SlotList>
auto	operator() (SlotList... t) const -> decltype(evaluateSlots(GhostValues, t...))
	Evaluate a set of input slots at once, return the values as a std::tuple<> according to the slot values.

string	PoolName () const
	Return the name of the associated value pool.

void	setTime ()
	set the time according to the current system time

	VContext (const RefPtr< Addendum > &CAddendum=NullPtr())
	Constructor.

	VContext (const RefPtr< ValuePool > &myValuePool, const RefPtr< Addendum > &CAddendum=NullPtr())
	Constructor with ValuePool.

	VContext (const RefPtr< ValuePoolProvider > &myValuePoolProvider)
	Context constructor, taking optional parameter ValuePoolProvider to setup the GhostValues in this context.

virtual	~VContext ()
	Destructor.

Public Member Functions inherited from Wizt::RenderBasin
RefPtr< StorageBufferTentacle >	bindStorageBuffer (Anemone &A, const char BufferName, const void theStorageData, size_t N, Buffer::StorageFlags={}) const
	Create a storage buffer from the given data and bind it to all shader programs that are found at the given Anemone under the same buffer name.

MemCore::RefPtr< VertexAttribute >	createCoordinates (const MemCore::RefPtr< MemCore::ChunkBase > &VertexData)
	Convenience function to load coordinates as vertex attribute.

MemCore::RefPtr< Program >	createGeometryProgram (const ShaderProgram &VertexShader, GeometryInputType geom_in, const ShaderProgram &GeometryShader, GeometryOutputType geom_out, const ShaderProgram &FragmentShader, const RenderBasin::Program::Setup &SetupFunction=nullptr, const MemCore::RefPtr< RenderBasin::Program > &ExistingProgram=nullptr)
	Create a shader program using a geometry shader.

MemCore::RefPtr< Program >	createGeometryProgram (const std::string &VertexShader, GeometryInputType, const std::string &GeometryShader, GeometryOutputType, const std::string &FragmentShader, const std::string &VertexShaderURL, const std::string &GeometryShaderURL, const std::string &FragmentShaderURL, const RenderBasin::Program::Setup &SetupFunction=nullptr, const MemCore::RefPtr< RenderBasin::Program > &ExistingProgram=nullptr)
	Create a shader program using a geometry shader.

virtual MemCore::RefPtr< Program >	createGeometryProgram (const std::vector< std::string > &VertexShader, const std::string &VertexShaderURL, unsigned VertexShaderLineNumber, GeometryInputType, const std::vector< std::string > &GeometryShader, GeometryOutputType, const std::string &GeometryShaderURL, unsigned GeometryShaderLineNumber, const std::vector< std::string > &FragmentShader, const std::string &FragmentShaderURL, unsigned FragmentShaderLineNumber, const RenderBasin::Program::Setup &SetupFunction=nullptr, const MemCore::RefPtr< RenderBasin::Program > &ExistingProgram=nullptr)=0
	Virtual function to create a shader program, possibly using a geometry shader.

virtual MemCore::RefPtr< ElementAttribute >	createIndexBuffer (const MemCore::RefPtr< MemCore::ChunkBase > &ElementData)=0
	Create an index buffer containing the element indices.

MemCore::RefPtr< Program >	createProgram (const glsl &VertexShader, const glsl &FragmentShader, const std::string &VertexShaderURL, const std::string &FragmentShaderURL, unsigned VertexShaderLineNumber=0, unsigned FragmentShaderLineNumber=0, const RenderBasin::Program::Setup &SetupFunction=nullptr, const MemCore::RefPtr< RenderBasin::Program > &ExistingProgram=nullptr)
	Create a shader program from GLGS source code constructed from a vertex and fragment shader.

MemCore::RefPtr< Program >	createProgram (const ShaderProgram &VertexShader, const ShaderProgram &FragmentShader, const RenderBasin::Program::Setup &SetupFunction=nullptr, const MemCore::RefPtr< RenderBasin::Program > &ExistingProgram=nullptr)
	Create a program from vertex and fragment shader.

template<class Lambda >
RPtr	createRenderLambda (const std::string &what, VRenderContext &Context, const Lambda &theLambda)

virtual RPtr	createRenderParameter (const glsl &, const void *data, const std::type_info &type, int Multiplicity)=0
	Create a generic rendering parameter.

template<class Type >
RPtr	createRenderParameter (const std::string &what, const Type &Data)
	Set variable of a given type, making use of the available META::MetaInfo<> type trait template.

template<class SlotType , class ShaderType >
RPtr	createRenderParameterWithStdFunctor (const glsl &what, const TypedSlot< SlotType > &InputSlot, const SlotType &SlotDefaultValue, const ShaderType &ShaderDefaultValue, const std::function< ShaderType(const VRenderContext &Context, const SlotType &SlotValue)> &theFunctor)
	A more or less internal helper function that takes a std::function object for coupling a TypedSlot to a shader parameter, intended to be used by createRenderSlotWithFunctor() with a lambda function.

template<class Type >
RPtr	createRenderSlot (const std::string &what, const TypedSlot< Type > &InputSlot, const Type &DefaultValue, const WeakPtr< ValuePool > &Context)
	Create a render parameter that will be connected to a given TypedSlot such that a dependency is considered and Anemone::updateValues() handles this input slot.

template<typename F > requires RenderLambda<F>
auto	createRenderSlotWithFunctor (const glsl &what, const TypedSlot< typename render_lambda_signature< F >::slot_type > &InputSlot, F &&theFunctor)
	Couple a VObject's input slot to a render parameter, in particular uniform shader variables, according to createRenderParameter(); Synopsis:

MemCore::RefPtr< VertexAttribute >	createStdVertexAttribute (const MemCore::RefPtr< MemCore::ChunkBase > &VertexData, VertexAttributeTypes Type)
	Convenience function to load coordinates as vertex attribute that is known as fixed standard attribute in older OpenGL (discouraged, modern OpenGL and shader code should use entirely user-defined names).

virtual RefPtr< StorageBufferTentacle >	createStorageBuffer (const void *theStorageData, size_t N, Buffer::StorageFlags={}) const =0
	Create a storage buffer tentacle, which is a reference to an OpenGL storage buffer.

virtual RefPtr< RenderBasin::StorageBufferTentacle >	createStorageBuffer (Intercube &DataCreator, const DataCreationFunction &f, const RenderBasin::Buffer::StorageFlags Flags={}) const =0
	Create storage buffer of the given size with initialization from the given data creator if there is no data storage buffer associated with the specified Intercube.

virtual RefPtr< RenderBasin::StorageBufferTentacle >	createStorageBuffer (Intercube &DataCreator, size_t N, const RenderBasin::Buffer::StorageFlags Flags={}) const =0
	Create storage buffer of the given size without initialization, but reuse an existing storage buffer if such is given at the specified Intercube.

virtual MemCore::RefPtr< TextureTentacle >	createTexture (const MemCore::RefPtr< MemCore::ChunkBase > &TextureData, TextureFormat TF, int rank, const size_t *Dimensions, int TextureUnit=0, TextureStorageFormat TSF=AutomaticTexture(), int level=0, bool GenerateDoMipMap=false, const MemCore::RefPtr< TextureTentacle > &OldTT=nullptr)=0
	Application call to the Render Context to create a Texture.

virtual MemCore::RefPtr< Attribute >	createTextureBuffer (const MemCore::RefPtr< MemCore::ChunkBase > &TextureData, int textureUnit=0, bool doNormalize=false, int AttributeClass=0, int MaxBitStorage=0)=0
	Create a texture buffer, which are basically 1D arrays of data that can be accessed randomly in OpenGL.

MemCore::RefPtr< VertexAttribute >	createTextureCoordinates (const MemCore::RefPtr< MemCore::ChunkBase > &TextureCoordData, int TextureUnit=0)
	Convenience function to load texture coordinates as vertex attribute.

virtual MemCore::RefPtr< VertexAttribute >	createVertexAttribute (const MemCore::RefPtr< MemCore::ChunkBase > &VertexData, const std::string &name)=0

MemCore::RefPtr< RenderFlag >	Disable (const char *what)
	Disable some rendering flag.

virtual MemCore::RefPtr< Painter >	drawPrimitives (Primitive, size_t howmany=0)=0

virtual MemCore::RefPtr< RenderFlag >	Enable (const char *what, bool Yes=true)=0
	Virtual OpenGL call to enable some rendering flag.

RefPtr< Illumination >	getIllumination () const
	Insert into newly created Anemone objects, for instance via feedAnemone().

WeakPtr< Interactor >	getInteractor () const
	Get the current Interactor .

glsl	getLightSourceCode ()
	See getIllumination() for details.

int	getNumberOfActiveLightSources () const
	Get the number of currently active light sources.

Seagrass &	getSeagrass () const
	Get the Seagrass caching manager that is associated with this RenderBasin.

const SeagrassWeakPtr_t &	getSeagrassPtr () const
	Get a pointer to the Seagrass caching manager that is associated with this RenderBasin.

virtual std::string	getShaderPlatformDefines () const =0
	Create a preprocessor string containing some platform-specific definitions.

bool	lightingHasChanged (const AnemoneCreatorBase &A) const
	Check whether the lighting managed by this RenderBasin (via its Seagrass) has changed so significantly such that shaders have to be recompiled.

RefPtr< Interactor >	makeInteractor () const
	Receive the current Interactor, if one is set already, and create a new one if that is not the case.

void	mergeIlluminationUniforms (Program &P) const
	For explicit handling of shader programs merge all the uniforms defined by the current set of light sources into the given Program.

static TextureStorageFormat	MultichannelTexture (int nChannels, int Bits, bool Integer=false, bool Signed=false, bool Normalized=true, bool Compressed=true)

static TextureStorageFormat	MultichannelTexture (int nChannels, TextureStorageFormat::BitPrecision theBits=TextureStorageFormat::Unspecified, bool Integer=false, bool Signed=false, bool Normalized=true, bool Compressed=true)
	Create some texture matching the number of specified channels, it will be:

static TextureStorageFormat	OpenGLTexture (int OpenGLTextureTypeEnum, int BitsPerTexel, bool isInteger)
	Create a texture storage format from an OpenGL texture enum, need to specify also the number of bits per texel for purposes of opengl memory management.

static TextureStorageFormat	RedGreen (TextureStorageFormat::BitPrecision theBits=TextureStorageFormat::Unspecified)
	color channels (two)

	RenderBasin (const SeagrassWeakPtr_t &mySeagrass)
	Construct a render basin with a weak pointer to a seagrass, which is a persistent manager for handling resources related to the respective rendering implementation.

static TextureStorageFormat	Rgb (TextureStorageFormat::BitPrecision theBits=TextureStorageFormat::Unspecified)
	color channels (three channels)

static TextureStorageFormat	RgbAlpha (TextureStorageFormat::BitPrecision theColorBits=TextureStorageFormat::Unspecified, TextureStorageFormat::BitPrecision theAlphaBits=TextureStorageFormat::Unspecified)
	color and alpha (four)

void	setInteractor (const WeakPtr< Interactor > &)
	Overwrite the current Interactor.

Public Member Functions inherited from Wizt::LayeredMultiViews
View &	CurrentView (unsigned Eye, unsigned int ViewportIndex=0)
	Access the view of the current eye for the current projection layer such that it can be modified.

const View &	CurrentView (unsigned Eye, unsigned int ViewportIndex=0) const
	Access the view of the current eye for the current projection layer.

const View &	getWorldView (unsigned Eye, unsigned int ViewportIndex=0) const
	Access to the world view parameters, which are valid after the camera objects have been rendered.

bool	isValid (const Anemone &) const
	Check whether the Anemone is non-empty and the number of views in the Anemone matches the current settings.

glsl	MultiViewPrefix (bool Define_num_views_layout=true, std::size_t MultiViewBindingPoint=0) const
	Define in GSL.

void	setNumberOfEyes (unsigned NumberOfEyes)
	Change the number of views that are available for rendering.

Static Public Member Functions
static consteval Jitter	defaultJitter ()
	Helper function such that Jitter can be used with default arguments in member functions of VRenderContext, which otherwise is not possible because it is a nested class.

Static Public Member Functions inherited from Wizt::RenderBasin
static void	mergeIlluminationUniforms (const Lighting &, Program &P)
	Lighting management: Similar in spirit to the semantics of light sources in OpenGL 1.0, Light Source objects via shaders are global and independent from lit objects, rather than squeezed into one single shader per object that also includes light sources.

static TextureStorageFormat	Red (TextureStorageFormat::BitPrecision theBits=TextureStorageFormat::Unspecified)
	color channels (one)

Public Attributes
bool	CheckShaderSourceUpdates = true
	A flag to indicate whether additional checks should be done for shader code updated on disk.

MemCore::Timer	ContextRenderTimer
	Measuring the Render Time since start.

RefPtr< VRenderPrecision >	Hints
	Additional information on how rendering should happen.

Size	Image
	For tiled rendering: Setup the Image size (in pixels) the size of one Tile (in pixels) and define the CurrentTileID (in integers telling the current ID of the tile to be rendered).

unsigned	minActiveViewport = 0
	Multi-viewport support: For render modules that support multiple viewports, these settings here define their range.

bool	MouseIsPressed = false
	An indicator for a currently ongoing interaction, it is supposed to be copied from a Viewer.

PixelZoom	myPixelZoom
	Pixel zoom parameters.

ObjectSelection	myRenderObjects
	The current selection of objects that shall be rendered.

unsigned	number_of_depthbuffer_clearance_objects = 0
	Objects that clear the depth buffer must increase this counter, otherwise the depth buffer has to be cleared by the scene rendering.

const unsigned	NumberOfOutputChannels
	The NumberOfOutputChannels is the number of screens in hardware for rendering.

bool	timeout = false
	A flag that can be set by render objects to indicate rendering was cancelled due to an object-specific timeout.

RefPtr< Eagle::BoundingBall >	TouchableVolume
	The volume that is touchable, determining the camera navigation Computed at each render() call by VSceneLayers::getTouchableBoundingVolume().

std::map< unsigned, unsigned >	ViewsPerOutputChannel
	If non-empty, this map is used to map views to output channels, such as displaying the left or right eye on a mono output device if a lens has enabled multiple views.

RefPtr< Eagle::BoundingBall >	VisibleVolume
	The volume that is visible, determining the OpenGL clipping planes.

Public Attributes inherited from Wizt::VContext
RefPtr< Addendum >	ContextAddendum
	An optional addendum to this context.

RefPtr< ValuePool >	GhostValues
	Eventually, some variables of an input are contained in a value pool; if so, then they are semantically local to a certain context (or a group of context's).

double	precision
	The precision parameter tells with what precision a certain action is to be executed.

Public Attributes inherited from Wizt::RenderBasin
int	NumberOfActiveLightSources
	The number of currently active light sources.

Public Attributes inherited from Wizt::LayeredMultiViews
int	CurrentEye = 0
	Stereo support: 0 ... cyclops, no stereo +1 ... right eye Any other numbers may be used to indicate eyes that are shifted even wider.

int	MultiViewOutput = 1
	Requested views that are available for output at once.

Related Symbols
(Note that these are not member symbols.)
virtual ModelViewState	ModelShift (const Eagle::FixedArray< double, 3 > &Translation) const =0

Additional Inherited Members
Static Public Attributes inherited from Wizt::LayeredMultiViews
static constinit char	DefineStructView []

static constexpr unsigned	MaxViewports = 16
	Maximally allowed number of viewports.

Detailed Description

Base class for objects that may display something.

Note: The OpenGL matrices are available via the CurrentView() functions.

Class Documentation

◆ Wizt::VRenderContext::DepthMode

struct Wizt::VRenderContext::DepthMode

Support for depth modes as discussed in: https://stannum.io/blog/0UZsbE.

◆ Wizt::VRenderContext::Jitter

struct Wizt::VRenderContext::Jitter

A structure to define a little offset from the main camera settings.

To be used when using the accumulation buffer sampling multiple images to achieve

antialiasing (jitter in screen coordinates)
field of depth (jitter in depth)
motion blur (jitter in time)

Class Members
double	dejavu = 0	Offset in time.
double	eyedx = 0
double	eyedy = 0
double	focus = 1
double	pixdx = 0
double	pixdy = 0
double	worlddx = 0
double	worlddy = 0

Member Function Documentation

◆ allowRendering()

bool Wizt::VRenderContext::allowRendering ( Anemone & RenderAnemone )

Check if the given Anemone fits into the AvailableGPURAM, and if so, subtract its memsize() from it and return true.

Otherwise, return false, unless AvailableGPURAM is a negative value, which means to ignore it.

References isCancelled(), and MemCore::MutableCacheable::memsize().

◆ createFontTentacle()

MemCore::RefPtr< Anemone::Tentacle > Wizt::VRenderContext::createFontTentacle	(	const string &	text,
		const VTextRenderProperties &	VTRP,
		const RefPtr< Font > &	theFont
	)		const

virtual

Create a Tentacle to render text.

Such a Tentacle will be self-consistent and can be added to and empty render Anemone, possibly using multiple such Font tentacles.

Parameters

BaseLine	The direction in which text shall be written.
FontPlane	The plane in which the text will reside. If this is a null vector, then the text will be aligned on-screen.
FontDepth	Spatial extent of the font, if this is zero, then the font will be 2D, otherwise it's a geometric 3D representation.

Reimplemented in Wizt::VGLRenderContext.

◆ createRenderSlot() [1/2]

template<class Type , class Modifier >

MemCore::RefPtr< RenderParameter > Wizt::VRenderContext::createRenderSlot	(	const std::string &	what,
		const TypedSlot< Type > &	InputSlot,
		const Modifier &	M
	)

inline

Couple a TypedSlot with a uniform variable of some Shader.

Create a cached render parameter with an explicit name from an VObject's input using the current value of this slot.

◆ createRenderSlot() [2/2]

template<class Type >

RPtr Wizt::RenderBasin::createRenderSlot	(	const std::string &	what,
		const TypedSlot< Type > &	InputSlot,
		const Type &	DefaultValue,
		const WeakPtr< ValuePool > &	Context
	)

inline

Create a render parameter that will be connected to a given TypedSlot such that a dependency is considered and Anemone::updateValues() handles this input slot.

Set variable of a given type, making use of the available META::MetaInfo<> type trait template.

◆ getAspectRatio()

double Wizt::VRenderContext::getAspectRatio ( ) const

Width / Height of the current output device, i.e.

the viewport or the Image, if valid.

References getViewportAspectRatio(), and Image.

Referenced by setTileAwarePerspective().

◆ getFrustum()

const Eagle::PhysicalSpace::Frustum & Wizt::VRenderContext::getFrustum	(	unsigned	Eye,
		unsigned int	ViewportIndex = `0`
	)		const

inline

The view frustum related to the current CameraSettings.

It must be updated via calling its compute() function any time the CameraSettings are modified.

Referenced by isVisible().

◆ isVisible()

int Wizt::VRenderContext::isVisible	(	const Eagle::BoundingBox &	DataBBox,
		unsigned	Eye = `0`
	)		const

View Frustum Culling; test if AA-BoundingBox is visible.

Parameters

DataBBox

Returns: 1 = completely inside, -1 = intersection, 0 = completely outside

References getFrustum().

◆ notifyError()

bool Wizt::VRenderContext::notifyError	(	const RenderAble &	ErrorObject,
		const RenderException &	theError
	)

virtual

Optional function for logging errors.

The exceptions can be added to a viewer's Viewer::myRenderExceptions structure, or anything else as defined in a derived class. For instance, for offline rendering the exceptions may be logged in a different place than for on-screen rendering. Since copying an exception may take a little time, the default of the base class is to not log any rendering exceptions. The return value specifies whether or not to continue with rendering when an error has occured.

References MemCore::MutableName::Name().

◆ openEye()

void Wizt::VRenderContext::openEye ( unsigned EyeNumber )

virtual

The frustum parameters are set into the View structure as provided in.

CurrentView(Eye)

The virtual function openEye(Eye) will then send the View parameters to the GPU. This function is supposed to set the modelview and projection matrix in the derived implementation.

Reimplemented in Wizt::VGLRenderContext.

References Wizt::LayeredMultiViews::CurrentEye.

◆ render() [1/2]

RenderResult Wizt::VRenderContext::render	(	double &	RenderTime,
		int	MinLevel = `RENDER_FIRST`,
		int	MaxLevel = `RENDER_LAST`
	)

inline

Render all objects as specified in ObjectSelection RenderObjects.

The member variable needs to be assigned before calling this function.

◆ render() [2/2]

virtual RenderResult Wizt::VRenderContext::render	(	ObjectSelection &	theRenderObjects,
		double &	RenderTime,
		int	MinLevel = `RENDER_FIRST`,
		int	MaxLevel = `RENDER_LAST`
	)

pure virtual

Implementation-specific function to traverse all objects that ought to be rendered.

Parameters

RenderTime The accumulative time (in seconds) used for rendering.

Returns: The number of objects that had been actually rendered

Implemented in Wizt::VGLRenderContext, and Wizt::VGLRenderContext.

◆ setEyeView()

void Wizt::VRenderContext::setEyeView	(	const VCamera &	theCameraSettings,
		double	Near,
		double	Far,
		bool	Orthographic,
		unsigned	EyeNumber,
		double	ZeroParallaxDistance,
		double	EyeSeparation,
		unsigned int	ViewportIndex = `0`,
		bool	ToeIn = `false`
	)

Given a camera (note that it will be modified during this call if the camera settings are a reference to getCameraSettings(0) ) and stereo vision parameters, set a modified camera and a shifted, asymmetric frustum suitable for stereo rendering.

Calls setTileAwarePerspective()

When EyeSeparation is zero, then there will be no stereo effect at all. When ZeroParallaxDistance==Far, everything pops out of the screen, while when ZeroParallaxDistance=Near everything will appear behind.

Calls setTileAwarePerspective().

References Wizt::LayeredMultiViews::CurrentView(), Eagle::norm(), setTileAwarePerspective(), Wizt::VCamera::ViewAngle, and Wizt::VCamera::viewdir().

◆ setLightSources()

void Wizt::VRenderContext::setLightSources ( const ObjectSelection & theRenderObjects ) const

Update the light sources that reside at the seagrass cache which is associated with this render context as permanent storage item.

To be called from a derived VRenderContext.

References Wizt::RenderBasin::getSeagrassPtr(), and MemCore::Ageable::touch().

Referenced by Wizt::VGLRenderContext::render().

◆ setPerspective() [1/2]

void Wizt::VRenderContext::setPerspective	(	double	fovy,
		double	Near,
		double	Far,
		bool	Orthographic
	)

inline

Simplified version of setTileAwarePerspective(), very similar to gluPerspective() .

Does not support Stereo. Use setTileAwarePerspective() for better control.

◆ setPerspective() [2/2]

void Wizt::VRenderContext::setPerspective	(	double	Near,
		double	Far,
		bool	Orthographic
	)

inline

Simplified version of setTileAwarePerspective(), very similar to gluPerspective() .

Does not support Stereo. Use setTileAwarePerspective() for better control.

Referenced by Wizt::CrossSectionCam::environment_render().

◆ setProjectionFrustum()

void Wizt::VRenderContext::setProjectionFrustum	(	const Eagle::PhysicalSpace::Viewport &	CameraRelativeFrustum,
		double	zNear,
		double	zFar,
		bool	Orthographic,
		unsigned	Eye,
		const Jitter &	jittering,
		unsigned int	ViewportIndex = `0`
	)

Load the OpenGL projection matrix.

Setup the project matrix.

This function calls CurrentView().setOrthographic() or CurrentView().setFrustum()

Then load the openGL projection matrix, and finally call updateFrustum();

The viewport is shifted by a distance specified by the jittering parameter, which allows to specify a shift in pixel and in eye distance according to:

dx = -(jittering.pixdx * VP.width() / geom.width() + jittering.eyedx * nearVal / jittering.focus),

dy = -(jittering.pixdy * VP.height() / geom.height() + jittering.eyedy * nearVal / jittering.focus);

whereby VP is the viewport as seen by the Camera (the CameraRelativeFrustum ) and geom is the actual viewport used for rendering.

References Wizt::LayeredMultiViews::CurrentView(), Wizt::ProjectionParameters::setFrustum(), Wizt::ProjectionParameters::setOrthographic(), and viewport().

Referenced by setTileAwareFrustum().

◆ setTileAwareFrustum()

void Wizt::VRenderContext::setTileAwareFrustum	(	double	FrameScaleFactor,
		const Eagle::PhysicalSpace::Viewport &	CameraRelativeFrustum,
		double	Near,
		double	Far,
		bool	Orthographic,
		unsigned	Eye,
		const Jitter &	jittering,
		unsigned int	ViewportIndex = `0`
	)

Consider PixelZoom and Tile parameters to compute a local viewport from the Frame and FrameScaleFactor, then call setProjectionFrustum().

Usually application code will call setTileAwarePerspective() unless it wants to compute the Frustum viewport explicitly.

References Eagle::PhysicalSpace::Viewport::getTile(), Image, myPixelZoom, and setProjectionFrustum().

Referenced by setTileAwareIdentity(), and setTileAwarePerspective().

◆ setTileAwarePerspective()

void Wizt::VRenderContext::setTileAwarePerspective	(	double	fovy,
		double	Near,
		double	Far,
		bool	Orthographic,
		unsigned	Eye,
		const Jitter &	jittering,
		unsigned int	ViewportIndex = `0`
	)

Set the projection in the current view.

This is usually the call that an end-user object CameraLens will invoke to set the projection for a specific eye.

Calls setTileAwareFrustum();

References getAspectRatio(), getCameraSettings(), Eagle::norm(), setTileAwareFrustum(), and Wizt::VCamera::viewdir().

Referenced by setEyeView().

Friends And Related Symbol Documentation

◆ ModelShift()

virtual ModelViewState ModelShift ( const Eagle::FixedArray< double, 3 > & Translation ) const

       Shift the camera by a specified amount.

       @param Translation The translation vector T, this function is
                          equivalent to calling (in OpenGL)

glTranslated( -T.x(), -T.y(), -T.z() );

Implemented in Wizt::VGLRenderContext.

References Eagle::norm().

Member Data Documentation

◆ minActiveViewport

unsigned Wizt::VRenderContext::minActiveViewport = 0

Multi-viewport support: For render modules that support multiple viewports, these settings here define their range.

Both values need to be smaller than MaxViewports .

◆ MouseIsPressed

bool Wizt::VRenderContext::MouseIsPressed = false

An indicator for a currently ongoing interaction, it is supposed to be copied from a Viewer.

This is probably not the best location for this specialized boolean, it may be better located in a context interruptor, or get generalized into different possible interaction devices and states.

◆ myRenderObjects

ObjectSelection Wizt::VRenderContext::myRenderObjects

The current selection of objects that shall be rendered.

This list needs to be updated at each render() or touch() call.

◆ timeout

bool Wizt::VRenderContext::timeout = false

A flag that can be set by render objects to indicate rendering was cancelled due to an object-specific timeout.

Note that the global function tooLate() will indicate whether there was a global timeout, and the function isCancelled() will indicate whether there was a cancellation due to external circumstances.

◆ TouchableVolume

RefPtr<Eagle::BoundingBall> Wizt::VRenderContext::TouchableVolume

The volume that is touchable, determining the camera navigation Computed at each render() call by VSceneLayers::getTouchableBoundingVolume().

It will be a nullptr outside of a render() call.

◆ ViewsPerOutputChannel

std::map<unsigned, unsigned> Wizt::VRenderContext::ViewsPerOutputChannel

If non-empty, this map is used to map views to output channels, such as displaying the left or right eye on a mono output device if a lens has enabled multiple views.

ViewPerOutputChannel[ OutputChannel ] = ViewNumber;

Referenced by Wizt::VGLRenderContext::render().

◆ VisibleVolume

RefPtr<Eagle::BoundingBall> Wizt::VRenderContext::VisibleVolume

The volume that is visible, determining the OpenGL clipping planes.

Computed at each render() call by VSceneLayers::getGlobalBoundingVolume(). It will be a nullptr outside of a render() call.

Classes

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Related Symbols

Additional Inherited Members

Detailed Description

Class Documentation

◆ Wizt::VRenderContext::DepthMode

◆ Wizt::VRenderContext::Jitter

Member Function Documentation

◆ allowRendering()

◆ createFontTentacle()

◆ createRenderSlot() [1/2]

◆ createRenderSlot() [2/2]

◆ getAspectRatio()

◆ getFrustum()

◆ isVisible()

◆ notifyError()

◆ openEye()

◆ render() [1/2]

◆ render() [2/2]

◆ setEyeView()

◆ setLightSources()

◆ setPerspective() [1/2]

◆ setPerspective() [2/2]

◆ setProjectionFrustum()

◆ setTileAwareFrustum()

◆ setTileAwarePerspective()

Friends And Related Symbol Documentation

◆ ModelShift()

Member Data Documentation

◆ minActiveViewport

◆ MouseIsPressed

◆ myRenderObjects

◆ timeout

◆ TouchableVolume

◆ ViewsPerOutputChannel

◆ VisibleVolume
