Wizt::Seagrass Class Reference

The Anemone Cache, called the Seagrass, is based on Anemone objects. More...

#include <ocean/Anemonia/Seagrass.hpp>

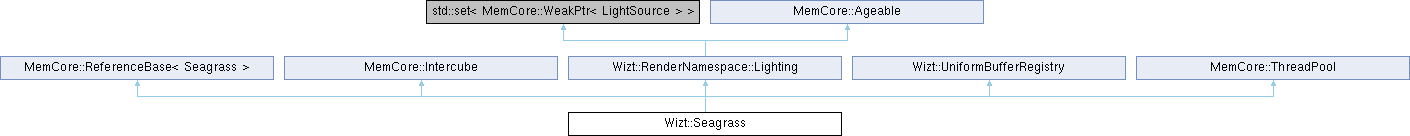

Inheritance diagram for Wizt::Seagrass:

Classes
struct	StorageBufferStatistics

Public Types
using	Dependencies_t = std::list< Dependency_t >
	Dependencies are given as a list of dependency objects, which are weak pointers to Creature objects.
using	Dependency_t = MemCore::WeakPtr< MemCore::Creature >
	The dependencies of an Anemone object are Creatures.
Public Types inherited from MemCore::ReferenceBase< Seagrass >
using	reference_domain_t = Seagrass
	The type of the base class.
using	SelfPtr_t = WeakPtr< Seagrass, Seagrass >
	Type for a pointer to this object itself.

Public Member Functions
bool	addDependencies (const CachedObject_t &theAnemoneCreator, const Dependencies_t &Dependencies)
	Register dependencies for an Anemone Creator.
void	addDependency (const CachedObject_t &theAnemoneCreator, Intercube &Dependency)
	Add a dependency to the given Anemone Creator: If the intercube object dies, so will the associated Anemone's data released at the next lawn() call.
void	cleanup ()
	Clear anything that is scheduled for deletion.
memsize_t	computeAnemonesMemory () const
	Explicitly computing the GPU memory as known from the available Anemones.
memsize_t	getCachedAnemonesMemory () const
	Get memory size information from cached memory size parameters.
size_t	getNumberOfAnemones () const
	Get the number of Anemone objects stored here.
int	lawn ()
	Lawn all the seagrass contained here, i.e.
size_t	memsize (bool FreeableOnly=true) const
	Get the memory occupied by all the Anemone objects stored here.
	Seagrass (MemCore::memsize_t MaxAllowedCost, const std::string &CacheID)
	Constructor.
void	setMaxCostFromCurrentUsage (memsize_t SafetyBufferMemory=0)
	Set the maximum cost of the cached items from the current usage minus the safety buffer.
virtual	~Seagrass ()
	Destructor.
Public Member Functions inherited from MemCore::ReferenceBase< Seagrass >
auto	getObjectCountID () const noexcept
	Get a unique ID for this object in the given domain.
bool	isIdentical (const WeakPtr< Seagrass, Seagrass > &PossibleSelf) const noexcept
	Check if this object is identical to the one used by the given pointer.
void	mkAutoDestructive ()
	Marks this object as being automatically destructed, e.g.
refcount_t	refcount () const noexcept
	The strong reference count.
	ReferenceBase (Seagrass *that) noexcept
	Constructor, initializes reference counter to zero.
const auto &	self () const
	Return weak pointer to the object self.
refcount_t	wrefcount () const noexcept
	The weak reference count.
Public Member Functions inherited from MemCore::Intercube
void	addInterface (const RefPtr< InterfaceBase > &I) const
	Add an interface class object.
template<class Data >
void	addInterfaceData (const Data &D)
	Add data via an interface class object.
template<class Data , typename TypeSelector >
void	addInterfaceData (const Data &D)
	Add data via an interface class object.
void	clearInterfaces ()
	Remove all interfaces.
bool	const_iterateInterfaces (const RefPtr< InterfaceIterationParameter > &IIP) const
	Constant iterator.
virtual RefPtr< InterfaceBase >	createInterface (const type_info &) const
	Virtual function which allows derived objects to create Interface objects on demand.
RefPtr< InterfaceBase >	findInterface (const type_info &t) const
	Find a certain interface of specified type.
RefPtr< InterfaceBase >	getInterface (const type_info &t)
	Retrieve an interface object from a certain type.
std::string	getInterfaceNames (const char delim=';') const
	Debug function retrieving all interfaces as human-readable string.
template<class Data >
bool	gotNewInterfaceData (const Data &D)
	Check whether data on the given interface have changed, and if so, set new data as interface.
template<class Data >
bool	gotNewInterfaceData (mutex &M, const Data &D)
	Check whether interface data have changed, if so, then set new interface data and return true.
template<class Data , typename Selector >
bool	gotNewInterfaceData (mutex &M, const Data &D)
	Check whether interface data have changed, if so, then set new interface data and return true.
template<class Data , typename Selector >
bool	gotNewInterfaceData (mutex &M, const Data &D, const Selector &S)
	Check whether interface data have changed, if so, then set new interface data and return true.
template<class Data , typename Selector >
bool	gotNewInterfaceData (mutex &M, const Data &D, const Selector *S)
	Check whether interface data have changed, if so, then set new interface data and return true.
template<class Data >
bool	hasChangedInterfaceData (const Data &D) const
	Check whether interface data have changed.
template<class Data , typename Selector >
bool	hasChangedInterfaceData (const Data &D) const
	Check whether interface data have changed.
template<class Data , typename Selector >
bool	hasChangedInterfaceData (const Data &D, const Selector &) const
	Check whether interface data have changed.
template<class Data , typename Selector >
bool	hasChangedInterfaceData (const Data &D, const Selector *) const
	Check whether interface data have changed.
bool	hasInterface (const type_info &t) const
	Check if some Interface might exist.
	Intercube ()
	Constructor.
bool	iterateInterfaces (const RefPtr< InterfaceIterationParameter > &IIP)
	Modifyable iterator.
void	printInterfaces () const
	Debug function that prints the names of all interfaces.
void	registerInterface (const type_info &t)
	Register an interface type; when the interface is actually required, the virtual createInterface() function will be called.
template<class InterfaceType >
void	removeInterface ()
	Remove an interface.
void	removeInterfaceBase (const type_info &InterfaceBaseID)
	Remove an interface.
virtual	~Intercube ()
	Destructor.
Public Member Functions inherited from Wizt::RenderNamespace::Lighting
unsigned	defineLightFunctions (glsl &lightshader) const
	Defines all the light functions as provided by the LightSource shaders managed here, with increasing light source function name.
bool	isYoungerThan (const MemCore::Ageable &) const
	Check if any light source is younger than the provided argument (which may require re-compilation of the dependent shader code).
Public Member Functions inherited from MemCore::Ageable
	Ageable () noexcept
	Constructor; remembers birth time from current time counter.
constexpr	Ageable (age_t t) noexcept
	Constructor with explicit time value.
constexpr	Ageable (const Ageable &A) noexcept
	Copy constructor.
	Ageable (const volatile Ageable &A) noexcept
	Copy constructor.
constexpr const Ageable &	getAge () const
	Return reference to this age, useful for derived classes.
bool	isNewerThan (const Ageable &a) const noexcept
	Comparison operator.
bool	isOlderThan (const Ageable &a) const noexcept
	Comparison operator.
bool	isYoungerThan (const Ageable &a) const noexcept
	Comparison operator (alias to isNewerThan() )
bool	operator!= (const Ageable &a) const noexcept
	Comparison operator.
bool	operator< (const Ageable &a) const noexcept
	Comparison operator.
bool	operator<= (const Ageable &a) const noexcept
	Comparision operator.
bool	operator<= (const volatile Ageable &a) const volatile noexcept
	Comparision operator.
bool	operator== (const Ageable &a) const noexcept
	Comparison operator.
bool	operator> (const Ageable &a) const noexcept
	Comparison operator.
bool	operator> (const volatile Ageable &a) const volatile throw ()
	Comparision operator.
bool	operator>= (const Ageable &a) const noexcept
	Comparision operator.
bool	operator>= (const volatile Ageable &a) const volatile noexcept
	Comparison operator.
constexpr void	resetAge () noexcept
	Set time value to InfinitelyOld().
void	setInfinitelyNew () noexcept
	Set time value to InfinitelyOld().
age_t	time_value () const noexcept
	Return an object's current age.
age_t	time_value () const volatile noexcept
	Return an object's current age.
Ageable &	touch () noexcept
	Mark the current object as being modified "now".
age_t	update (age_t age) noexcept
	Set the age of the current object to a specific age if that is newer than the current one.
age_t	update (const Ageable &Other) noexcept
	Set the age of the current object to the age of another object if that other one is newer than the current one.
age_t	update (const volatile Ageable &Other) volatile noexcept
	Set the age of the current object to the age of another object if that other one is newer than the current one.
	~Ageable () noexcept
	Destructor.
Public Member Functions inherited from MemCore::ThreadPool
	ThreadPool (const std::string &ThreadPoolName, unsigned ThreadFactor=2)
	Construct with a set of threads relative to the number of nodes available on the current hardware.
	ThreadPool (size_t threads, const std::string &ThreadPoolName)
	Construct with a given number of threads.

Public Attributes
MemCore::RefPtr< PixelBuffer >	myPixelBuffer
	Storage of a possible PixelBuffer object.
MemCore::WeakPtr< Interactor >	SceneInteractor
	Optional interaction parameters.

Additional Inherited Members
Static Public Member Functions inherited from Wizt::RenderNamespace::Lighting
static glsl	getEffectiveLightName (glsl &lightshader, unsigned LightNr)
	Convenience function for a text replacement operation:
static glsl	postfix (unsigned NumberOfLightSources)
	Define a global function.
Static Public Member Functions inherited from MemCore::Ageable
static const Ageable &	InfinitelyNew () noexcept
	Return a time that is infinitely in the future (well, sort of).
static constexpr const Ageable &	InfinitelyOld () noexcept
	Return a time that is infinitely in the past (well, sort of).
static age_t	now () noexcept
	Return the current global time.
Static Public Attributes inherited from Wizt::RenderNamespace::Lighting
static const glsl	placeholder
	The placeholder text in glsl code provided by lightsources that will be replaced with the number that is assigned to this lightsource for final shader compilation.
Protected Member Functions inherited from MemCore::ReferenceBase< Seagrass >
virtual void	extremeUnction ()
	A virtual function that will be called just before the object is destroyed.
ReferenceBase &	operator= (const ReferenceBase &R)
	Protected assignment operator (should not be called).
void	suicide ()
	Delete this.
virtual	~ReferenceBase ()
	Virtual destructor.

Detailed Description

The Anemone Cache, called the Seagrass, is based on Anemone objects.

The Seagrass class manages Anemone objects, which are referred to from creator objects that are stored in application code. All these creator objects are child classes of the AnemoneCreatorBase.

There two ways of implementing those AnemoneCreators:

1. Internally, in the virtual function of child class
2. Externally, in calling code inspecting an Anemone object from within the render() function. The internal method is more elegant, but also slightly more effortsome. For the external method, the AnemoneCreator<> class will serve well the purpose, as this is a Creator that simply forgets the associated Anemone if running out of memory. Such AnemoneCreators<> need to be stored in application memory, wherever they are related to input date. A generic way if only one AnemoneCreator is required per input data set, is storing in an object's state:

   struct  MyState : State
   {
           RefPtr<AnemoneCreator<> > myAnemoneCreator;
   };

   RefPtr<State> newState() const override
   {
           return new MyState();
   }

   Note that the AnemoneCreator cannot be constructed in the MyState's constructor because it requires a Seagrass object for initialization. Such is available only in the render() function, and we can create the AnemoneCreator only there:

   void    DisplayEdges::environment_render(VRenderContext&Context) const
   {
   RefPtr<MyState> S = myState(Context);

           if (!S->myAnemoneCreator)
                   S->myAnemoneCreator = new AnemoneCreator<>(  Context.getSeagrass() );

   RefPtr<Anemone> RenderAnemone = S->myAnemoneCreator->create();
           ...
   }

Sea grass meadows are inhabited or visited by a diverse and abundant fish fauna. Resident fishes are typically small, cryptic, and of little commercial value. [...] Some higher vertebrates can also be found in sea grass meadows. [...] Sea grasses have potential for extremely high primary productivity. [...] Sea grasses are extremely efficient at capturing and utilizing nutrients. [...] (source: http://savefloridareefs.com/page2/Seagrassandmangroves.html )

---

Class Documentation

Wizt::Seagrass::StorageBufferStatistics

struct Wizt::Seagrass::StorageBufferStatistics

Member Typedef Documentation

Dependency_t

using Wizt::Seagrass::Dependency_t = MemCore::WeakPtr<MemCore::Creature>

The dependencies of an Anemone object are Creatures.

Their important property is that they are MemCore::Intercubes. Once this Intercube dies, it will schedule all cached Anemone objects for deletion as well. However, the Anemone objects will not be deleted immediately, but only scheduled for deletion. The actual deletion must be done via the Seagrass.

The fact that Creature objects are related to cache management as well is of no relevance here, the Creature's cache is independent from the Seagrass. In particular, the Creature used here may refer to RAM objects, while Anemone objects reside on the GPU.

Member Function Documentation

addDependencies()

bool Wizt::Seagrass::addDependencies	(	const CachedObject_t &	theAnemoneCreator,
		const Dependencies_t &	Dependencies
	)

Register dependencies for an Anemone Creator.

Once those dependencies die, so will their interface die, deferred destructor objects which tell the Seagrass to delete the respective Anemone objects at next occasion.

References addDependency().

lawn()

int Wizt::Seagrass::lawn

(

)

Lawn all the seagrass contained here, i.e.

remove all stored entries. Same as purge() (a more conventional naming).

References cleanup(), and myPixelBuffer.

setMaxCostFromCurrentUsage()

void Wizt::Seagrass::setMaxCostFromCurrentUsage

(

memsize_t

SafetyBufferMemory = 0

)

Set the maximum cost of the cached items from the current usage minus the safety buffer.

This function is useful if some OpenGL command runs out of memory, but the reported GPU RAM would have seemed to be large enough to hold it - in other words, the reported GPU RAM is incorrect and we need to estimate the actually available GPU RAM from issuing commands until the GPU runs out of memory.

References getCachedAnemonesMemory().
