Eagle::BoundingBox Class Reference

A coordinate-parallel bounding box in three dimensions. More...

#include <elementary/aerie/BoundingBox.hpp>

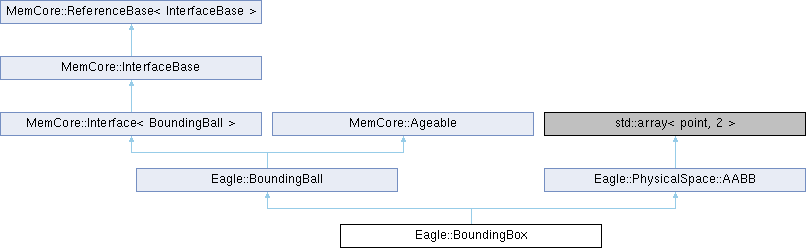

Inheritance diagram for Eagle::BoundingBox:

Public Member Functions
	BoundingBox ()
	Default constructor, initializes the bounding box to be placed at (0,0,0) with size zero.
	BoundingBox (const point_t &Center, double EdgeLength)
	Initialize a bounding box from a center point and extent.
	BoundingBox (const point_t &minCoord, const point_t &maxCoord)
	Initialize a bounding box from two corner points.
void	buffer (const tvector_t &buf)
	Expand the bounding box range by the given tvector.
tvector_t	diagonal () const
	Compute the diagonal vector, max - min.
void	embrace (const point_t &crd)
	Expand the bounding box range to encompass the given coordinate.
point_t	findClosestPoint (const point_t &P) const
	Find the point on the box that is closest to the given point.
point3	getCornerPoint (int N) const
	Get the Nth point of the bounding box, where N is a number between zero and seven.
point_t	getLocation (double x, double y, double z) const
	Compute a point relative to the given bounding box, the coordinates are in values 0.0 to 1.0 for points within the box.
point_t	getLocation11 (double x, double y, double z) const
	Compute a point relative to the given bounding box, the coordinates are in values -1.0 to 1.0 for points within the box.
void	grow (const double &buf)
	Expand the bounding box range by the given ratio.
void	insert (const BoundingBox &BB)
	Expand the bounding box range to encompass the given bounding box.
bool	inside (const BoundingBox &bb) const
	Check whether another bounding box resides within the bounding box.
bool	inside (const BoundingBox &bb, const char &normal_direction) const
	Check whether another bounding box resides within the bounding box.
bool	inside (const point_t &p) const
	Check whether a specific point resides within the bounding box.
bool	inside (const point_t &p, const char &normal_direction) const
	Check whether a specific point resides within the bounding box.
const point_t &	maxcoord () const
	The maximal coordinate, upper right back corner.
const point_t &	mincoord () const
	The minimal coordinate, lower left front corner.
bool	operator!= (const BoundingBox &Other) const
	Check bounding boxes for inequality.
MemCore::RefPtr< BoundingBox >	operator& (const BoundingBox &Other) const
	return intersection of two bboxes
bool	operator== (const BoundingBox &Other) const
	Check bounding boxes for equality.
void	setMinMax (const point_t &minCoord, const point_t &maxCoord)
	Overwrite the current values and set new ones. Updates the bounding ball automaticall.
void	updateBall ()
	Compute the bounding sphere parameters of the base class.
Public Member Functions inherited from Eagle::BoundingBall
	BoundingBall ()
	Default bounding ball, sets radius to zero, center to (0,0,0)
	BoundingBall (const BoundingBall &BB)
	Copy constructor.
	BoundingBall (const point_t &Center, double R)
	Construct with Center and Radius.
	BoundingBall (double R, const point_t &Center)
	Construct with Radius and Center.
point_t &	center ()
	The center of the bounding ball, lvalue.
void	expandBall (const BoundingBall &B)
	Expand a ball by another ball.
void	expandBall (const point_t &point)
	Expand ball by point, using the algorithm http://geometryalgorithms.com/Archive/algorithm_0107/algorithm_0107.htm#fastBall() .
const point_t &	getCenter () const
	The center of the bounding ball.
double	getRadius () const
	The radius of the bounding ball.
double	radius () const
	The radius of the bounding ball.
double	radius2 () const
	The squared radius of the bounding ball.
void	setCenter (const point_t &center)
	Set the center of the bounding ball.
void	setRadius (double R)
	The radius of the bounding ball.
Public Member Functions inherited from MemCore::Interface< BoundingBall >
const type_info &	getInterfaceDomain () const
	Run-time information about the type used for InterCube registration.
Public Member Functions inherited from MemCore::InterfaceBase
virtual bool	apply (Intercube &I, const RefPtr< InterfaceIterationParameter > &)
	modifyable callback function
virtual bool	apply_const (const Intercube &I, const RefPtr< InterfaceIterationParameter > &)
	constant callback function
	InterfaceBase () throw ()
	Constructor.
Public Member Functions inherited from MemCore::ReferenceBase< InterfaceBase >
auto	getObjectCountID () const noexcept
	Get a unique ID for this object in the given domain.
bool	isIdentical (const WeakPtr< InterfaceBase, InterfaceBase > &PossibleSelf) const noexcept
	Check if this object is identical to the one used by the given pointer.
void	mkAutoDestructive ()
	Marks this object as being automatically destructed, e.g.
refcount_t	refcount () const noexcept
	The strong reference count.
	ReferenceBase (InterfaceBase *that) noexcept
	Constructor, initializes reference counter to zero.
const auto &	self () const
	Return weak pointer to the object self.
refcount_t	wrefcount () const noexcept
	The weak reference count.
Public Member Functions inherited from MemCore::Ageable
	Ageable () noexcept
	Constructor; remembers birth time from current time counter.
constexpr	Ageable (age_t t) noexcept
	Constructor with explicit time value.
constexpr	Ageable (const Ageable &A) noexcept
	Copy constructor.
	Ageable (const volatile Ageable &A) noexcept
	Copy constructor.
constexpr const Ageable &	getAge () const
	Return reference to this age, useful for derived classes.
bool	isNewerThan (const Ageable &a) const noexcept
	Comparison operator.
bool	isOlderThan (const Ageable &a) const noexcept
	Comparison operator.
bool	isYoungerThan (const Ageable &a) const noexcept
	Comparison operator (alias to isNewerThan() )
bool	operator!= (const Ageable &a) const noexcept
	Comparison operator.
bool	operator< (const Ageable &a) const noexcept
	Comparison operator.
bool	operator<= (const Ageable &a) const noexcept
	Comparision operator.
bool	operator<= (const volatile Ageable &a) const volatile noexcept
	Comparision operator.
bool	operator== (const Ageable &a) const noexcept
	Comparison operator.
bool	operator> (const Ageable &a) const noexcept
	Comparison operator.
bool	operator> (const volatile Ageable &a) const volatile throw ()
	Comparision operator.
bool	operator>= (const Ageable &a) const noexcept
	Comparision operator.
bool	operator>= (const volatile Ageable &a) const volatile noexcept
	Comparison operator.
constexpr void	resetAge () noexcept
	Set time value to InfinitelyOld().
void	setInfinitelyNew () noexcept
	Set time value to InfinitelyOld().
age_t	time_value () const noexcept
	Return an object's current age.
age_t	time_value () const volatile noexcept
	Return an object's current age.
Ageable &	touch () noexcept
	Mark the current object as being modified "now".
age_t	update (age_t age) noexcept
	Set the age of the current object to a specific age if that is newer than the current one.
age_t	update (const Ageable &Other) noexcept
	Set the age of the current object to the age of another object if that other one is newer than the current one.
age_t	update (const volatile Ageable &Other) volatile noexcept
	Set the age of the current object to the age of another object if that other one is newer than the current one.
	~Ageable () noexcept
	Destructor.
Public Member Functions inherited from Eagle::PhysicalSpace::AABB
tvector	diagonal () const
	Compute the diagonal vector, max - min.
point	findClosestPoint (const point &P) const
	Find the point on the box that is closest to the given point.
point	getLocation (double x, double y, double z) const
	Compute a point relative to the given bounding box, the coordinates are in values 0.0 to 1.0 for points within the box.
bool	isInside (const AABB &bb) const
	Check whether another bounding box resides within the bounding box.
bool	isInside (const point &p) const
	Check whether a specific point resides within the bounding box.
point &	max ()
	The maximal coordinate, upper right back corner (by convention, second element)
const point &	max () const
	The maximal coordinate, upper right back corner (by convention, second element)
point &	min ()
	The minimal coordinate, lower left front corner (by convention, first element)
const point &	min () const
	The minimal coordinate, lower left front corner (by convention, first element)
void	resort ()
	Ensure min() < max() for all components by checking and resorting.

Protected Member Functions
	~BoundingBox ()
	Destructor made protected such that there are no explicit instances of BoundingBox objects allowed.
Protected Member Functions inherited from Eagle::BoundingBall
	~BoundingBall ()
	Destructor.
Protected Member Functions inherited from MemCore::InterfaceBase
	~InterfaceBase ()
	Destructor.
Protected Member Functions inherited from MemCore::ReferenceBase< InterfaceBase >
virtual void	extremeUnction ()
	A virtual function that will be called just before the object is destroyed.
ReferenceBase &	operator= (const ReferenceBase &R)
	Protected assignment operator (should not be called).
void	suicide ()
	Delete this.
virtual	~ReferenceBase ()
	Virtual destructor.

Additional Inherited Members
Public Types inherited from MemCore::Interface< BoundingBall >
using	InterfaceDomain_t = BoundingBall
	Compile-time information about the type used for InterCube registration.
Public Types inherited from MemCore::ReferenceBase< InterfaceBase >
using	reference_domain_t = InterfaceBase
	The type of the base class.
using	SelfPtr_t = WeakPtr< InterfaceBase, InterfaceBase >
	Type for a pointer to this object itself.
Static Public Member Functions inherited from MemCore::Ageable
static const Ageable &	InfinitelyNew () noexcept
	Return a time that is infinitely in the future (well, sort of).
static constexpr const Ageable &	InfinitelyOld () noexcept
	Return a time that is infinitely in the past (well, sort of).
static age_t	now () noexcept
	Return the current global time.
Static Public Member Functions inherited from Eagle::PhysicalSpace::AABB
static point	getBoundingBoxVertex (point vertex, const point &max_values, const bivector &normal)
	Get BoundingBox vertex that is further along normal’s direction of the plane.

Detailed Description

A coordinate-parallel bounding box in three dimensions.

Bounding boxes are derived from bounding balls, which may be used as base classes providing simpler, and more symmetric information. Consequently, any time a bounding box is updated, also the bounding ball information needs to be updated, because such is not computed on demand for performance reasons. Do so by explictely calling updateBall() after a set of points as been included in the bounding box.

Examples

QuadDemo.cpp.

Constructor & Destructor Documentation

BoundingBox()

Eagle::BoundingBox::BoundingBox

(

)

Default constructor, initializes the bounding box to be placed at (0,0,0) with size zero.

The empty() member function will return true, like in any case of a bounding box having volume zero.

Referenced by operator&().

Member Function Documentation

buffer()

void Eagle::BoundingBox::buffer ( const tvector_t &  buf )

inline

Expand the bounding box range by the given tvector.

Need to call updateBall() afterwards.

embrace()

void Eagle::BoundingBox::embrace ( const point_t &  crd )

inline

Expand the bounding box range to encompass the given coordinate.

Need to call updateBall() afterwards.

getCornerPoint()

point3 Eagle::BoundingBox::getCornerPoint ( int  N ) const

inline

Get the Nth point of the bounding box, where N is a number between zero and seven.

This is a fast bit operation. Numerical values larger than N are not relevant, only the lower three bits are taken into consideration.

grow()

void Eagle::BoundingBox::grow ( const double &  buf )

inline

Expand the bounding box range by the given ratio.

Need to call updateBall() afterwards.

insert()

void Eagle::BoundingBox::insert ( const BoundingBox &  BB )

inline

Expand the bounding box range to encompass the given bounding box.

Need to call updateBall() afterwards.

inside() [1/2]

bool Eagle::BoundingBox::inside	(	const BoundingBox &	bb,
		const char &	normal_direction
	)		const

Check whether another bounding box resides within the bounding box.

Attention: one dimension ('x', 'y' or 'z' is skipped)

inside() [2/2]

bool Eagle::BoundingBox::inside	(	const point_t &	p,
		const char &	normal_direction
	)		const

Check whether a specific point resides within the bounding box.

Attention: one dimension ('x', 'y' or 'z' is skipped)

operator!=()

bool Eagle::BoundingBox::operator!=

(

const BoundingBox &

Other

)

const

Check bounding boxes for inequality.

Todo:

: implement this function (also in AABB.hpp) return union of two bboxes
