Wizt::RenderNamespace Struct Reference

Enums used for rendering. More...

#include <ocean/Anemonia/RenderNamespace.hpp>

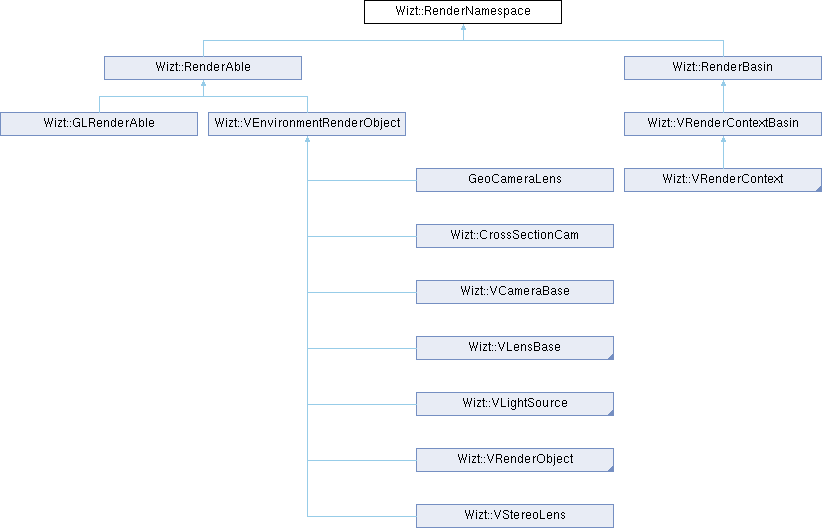

Inheritance diagram for Wizt::RenderNamespace:

Classes
struct	BlendFactor
struct	GLSLSection
	Helper class to automatically insert BEGIN and END comments when procedurally creating GLSL code. More...
struct	Lighting
	A set of light sources. More...
struct	LightSource
	Base class for light sources in shaders: A light source provides a light function, defined in glsl, and a set of parameters that are used by this light function. More...
struct	ProgramVariables
	A collection of variables that are parameters to shaders, also known as uniforms in GLSL. More...

Public Types
using	AnyUniform = std::variant< int, float, double, unsigned, Eagle::FixedArray< int, 2 >, Eagle::FixedArray< float, 2 >, Eagle::FixedArray< double, 2 >, Eagle::FixedArray< int, 3 >, crd3f, Eagle::FixedArray< float, 3 >, crd3d, Eagle::FixedArray< double, 3 >, Eagle::FixedArray< int, 4 >, Eagle::FixedArray< float, 4 >, Eagle::FixedArray< double, 4 >, Eagle::Quadratic< 2, float >, Eagle::Quadratic< 3, float >, Eagle::Quadratic< 4, float >, vec3f_vector, crd3f_vector >
	A variant that may carry all currently supported data types that can be used as a uniform variable in a GLSL shader.
enum	GeometryInputType
	Input type for geometry shaders.
enum	GeometryOutputType
	Output type for geometry shader.
using	glsl = std::string
	An alias name for strings such that the return value of functions providing GLSL code can be spotted easier.
enum	Primitive {   POINTS , LINE_STRIP , LINE_LOOP , LINES ,   TRIANGLE_STRIP , TRIANGLE_FAN , TRIANGLES , QUAD_STRIP ,   QUADS , POLYGON , LINES_ADJACENCY , TRIANGLES_ADJACENCY ,   LINE_STRIP_ADJACENCY , TRIANGLE_STRIP_ADJACENCY }
	Enumeration type for primitives, similar to OpenGL (but numerically not identical). More...
enum	TextureFormat
	Enum for the type of texture to be used, implying the number of color channels and their meaning.
enum	VertexAttributeTypes {   COORDINATES , NORMALS , COLORS , SECONDARY_COLORS ,   TEXTURE0 , TEXTURE1 , USER_DEFINED }
	Categories of vertex attributes for OpenGL default shader attributes, to be used in conjunction with RenderBasin::AttributeNames() and RenderBasin::createVertexAttribute(). More...

Detailed Description

Enums used for rendering.

Derive render classes from this one.

Member Enumeration Documentation

Primitive

enum Wizt::RenderNamespace::Primitive

Enumeration type for primitives, similar to OpenGL (but numerically not identical).

See also

http://www.opengl.org/sdk/docs/man/xhtml/glDrawArrays.xml

Enumerator
POINTS	draw as points
LINE_STRIP	draw as one connected line
LINE_LOOP	draw as one closed line
LINES	draw as a set of line elements, bundling each two vertices independently
TRIANGLE_STRIP	draw a strip of connected triangles
TRIANGLE_FAN	draw a set of triangles that are all attached to the first vertex
TRIANGLES	draw a set of independent triangles, three vertices given for each
QUAD_STRIP	draw a strip of quads
QUADS	draw a set of quads, four vertices from one
POLYGON	draw a single polygon

VertexAttributeTypes

enum Wizt::RenderNamespace::VertexAttributeTypes

Categories of vertex attributes for OpenGL default shader attributes, to be used in conjunction with RenderBasin::AttributeNames() and RenderBasin::createVertexAttribute().

Enumerator
COORDINATES	coordinate information for vertices
NORMALS	Normal vectors.
COLORS	Colors.
SECONDARY_COLORS	Secondary colors.
TEXTURE0	Texture coordinates for texture unit 0.
TEXTURE1	Texture coordinates for texture unit 1.
USER_DEFINED	User-defined attribute name.
