Base class for textures, child classes are implemented by Renderers. More...

#include <ocean/Anemonia/RenderBasin.hpp>

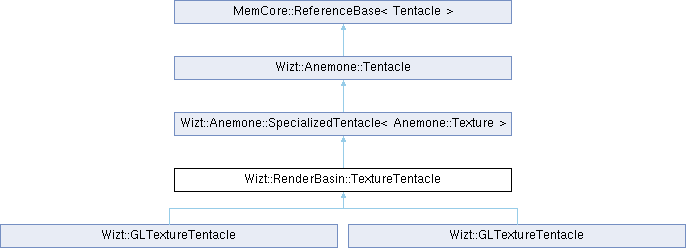

Inheritance diagram for Wizt::RenderBasin::TextureTentacle:

Public Member Functions
virtual bool	load (const MemCore::RefPtr< MemCore::ChunkBase > &TextureData, TextureFormat TF, int rank, const size_t *Dimensions, int TextureUnit=0, TextureStorageFormat TSF=AutomaticTexture(), int level=0, bool GenerateDoMipMap=false)=0

virtual bool	setTextureParameter (const std::string &name, const std::type_info &T, const void *dataptr, int multiplicity=1)=0
	Set a texture parameter.

template<class Type >
bool	setTextureParameter (const std::string &name, const Type &Data)
	Set a texture parameter consisting of a single element.

Public Member Functions inherited from Wizt::Anemone::Tentacle
virtual bool	activate (const Anemone &)=0
	Activate this tentacle.

virtual bool	deactivate (const Anemone &)=0
	Deactivate this tentacle.

virtual const char *	getSamplerType () const
	If this tentacle refers to some texture sampler in a shader, then hereby return the type of this sampler is it occurs in the code.

virtual int	getTextureUnit () const
	Get the texture unit number which was specified during construction, if positive then it refers to some texture unit that is used in an associated shader.

virtual size_t	memsize () const
	Return the memory occupied by this buffer if it occupies memory at all. Otherwise, returns 0 (default).

virtual size_t	NumberOfElements () const
	Returns the number of elements provided and used by this object, if it refers to countable elements.

virtual bool	updateValue (VRenderContext &Context)
	Possibly update a tentacle from settings in a context.

Public Member Functions inherited from MemCore::ReferenceBase< Tentacle >
auto	getObjectCountID () const noexcept
	Get a unique ID for this object in the given domain.

bool	isIdentical (const WeakPtr< Tentacle, Tentacle > &PossibleSelf) const noexcept
	Check if this object is identical to the one used by the given pointer.

void	mkAutoDestructive ()
	Marks this object as being automatically destructed, e.g.

refcount_t	refcount () const noexcept
	The strong reference count.

	ReferenceBase (Tentacle *that) noexcept
	Constructor, initializes reference counter to zero.

const auto &	self () const
	Return weak pointer to the object self.

refcount_t	wrefcount () const noexcept
	The weak reference count.

Public Attributes
glsl	GLSLSamplerName
	Suggested type of the corresponding variable declaration in a corresponding GLSL code.

glsl	GLSLSamplerValueType
	Suggested type of the corresponding variable type when reading the texture.

TextureStorageFormat	myTextureStorageFormat
	Associated texture format.

Public Attributes inherited from Wizt::Anemone::Tentacle
Activity_t	Activity
	A bit mask telling whether this tentacle should participate in the waving of an Anemone.

Additional Inherited Members
Public Types inherited from MemCore::ReferenceBase< Tentacle >
using	reference_domain_t = Tentacle
	The type of the base class.

using	SelfPtr_t = WeakPtr< Tentacle, Tentacle >
	Type for a pointer to this object itself.

Protected Member Functions inherited from MemCore::ReferenceBase< Tentacle >
virtual void	extremeUnction ()
	A virtual function that will be called just before the object is destroyed.

ReferenceBase &	operator= (const ReferenceBase &R)
	Protected assignment operator (should not be called).

void	suicide ()
	Delete this.

virtual	~ReferenceBase ()
	Virtual destructor.

Detailed Description

Base class for textures, child classes are implemented by Renderers.

Member Function Documentation

◆ load()

virtual bool Wizt::RenderBasin::TextureTentacle::load	(	const MemCore::RefPtr< MemCore::ChunkBase > &	TextureData,
		TextureFormat	TF,
		int	rank,
		const size_t *	Dimensions,
		int	TextureUnit = `0`,
		TextureStorageFormat	TSF = `AutomaticTexture()`,
		int	level = `0`,
		bool	GenerateDoMipMap = `false`
	)

pure virtual

Parameters

TextureData	actual data to be loaded
TF	The type of the texture
rank	The dimensionality of the data
Dimensions	The extension of the data in each dimension, must match the provided TextureData
TextureUnit	The OpenGL texture unit in which to load these data
TSF	The internal storage format of the texture, affects memory utilization.

Implemented in Wizt::GLTextureTentacle.

◆ setTextureParameter()

virtual bool Wizt::RenderBasin::TextureTentacle::setTextureParameter	(	const std::string &	name,
		const std::type_info &	T,
		const void *	dataptr,
		int	multiplicity = `1`
	)

pure virtual

Set a texture parameter.

Note that this call will not immediately issue any OpenGL calls. Rather it prepares the TextureTentacle such that the right texture parameters will be set at the right time.

Parameters

name	A textual specification of the render parameter from the list in http://www.opengl.org/sdk/docs/man4/xhtml/glTexParameter.xml or as otherwise documented in the implementation of some RenderContext.

Returns: true if the texture parameter could be set, false otherwise, for instance when the given name is an unknown keyword and/or not supported by the underlaying render context implementation.

Implemented in Wizt::GLTextureTentacle.
