Base class to store buffer arrays for texture coordinates. More...
#include <ocean/GLvish/ArrayTypes.hpp>

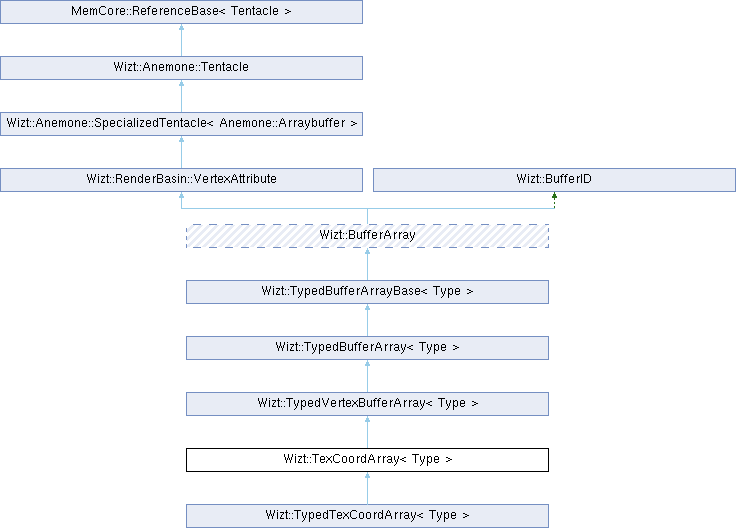

Inheritance diagram for Wizt::TexCoordArray< Type >:
Public Member Functions | |
| TexCoordArray (const MemCore::RefPtr< TextureBase > &TXT, const MemCore::RefPtr< MemCore::Chunk< Type > > &data, BufferArray::usage usage_hint) | |
| Construct texture coordinate array from texture. | |
| TexCoordArray (int texture, const MemCore::RefPtr< MemCore::Chunk< Type > > &data, BufferArray::usage usage_hint) | |
| Low-Level OpenGL Constructor, create texture coordinates with OpenGL active texture unit. | |
 Public Member Functions inherited from Wizt::TypedBufferArray< Type > | |
| bool | activate (const Anemone &) override |
| bool | deactivate (const Anemone &) override |
| Deactivate this tentacle. | |
| Public Member Functions inherited from Wizt::TypedBufferArrayBase< Type > | |
| size_t | getComponentSize () const override |
| Get size of a component in bytes. | |
| size_t | getElementSize () const override |
| Return size of the type used for loading the data. | |
| bool | load (const ::std::vector< Type > &data, BufferArray::usage usage_hint=BufferArray::STATIC_DRAW) |
| Load data from a Standard Template Vector. | |
| Public Member Functions inherited from Wizt::BufferArray | |
| BufferArray (type buffer_target, int AttributeClass=0) | |
| Construct an OpenGL buffer object (this call does NOT require an OpenGL Context) | |
| GLuint | getId () const noexcept |
| Get an Id without attempting to generate it. | |
| GLsizei | getStride () const |
| A future version may use a stride that is shared among Buffers. | |
| bool | isIndexBuffer () const |
| Check whether this is an index buffer. | |
| bool | isVertexArray () const |
| Check whether this is a vertex array. | |
| template<class Type > | |
| bool | load_typed (const ::std::vector< Type > &data, size_t start, size_t end) |
| Load subset of data from a Standard Template Vector. | |
| template<class Type > | |
| bool | load_typed (const ::std::vector< Type > &data, usage usage_hint=STATIC_DRAW) |
| Load data from a Standard Template Vector. | |
| size_t | memsize () const |
| Return the memory occupied by this buffer. | |
| size_t | NumberOfElements () const |
| Returns the number of elements referenced via this BufferArray. | |
| ~BufferArray () | |
| Destructor - MUST be called within an OpenGL Context. | |
| Public Member Functions inherited from Wizt::Anemone::Tentacle | |
| virtual const char * | getSamplerType () const |
| If this tentacle refers to some texture sampler in a shader, then hereby return the type of this sampler is it occurs in the code. | |
| virtual int | getTextureUnit () const |
| Get the texture unit number which was specified during construction, if positive then it refers to some texture unit that is used in an associated shader. | |
| virtual bool | updateValue (VRenderContext &Context) |
| Possibly update a tentacle from settings in a context. | |
| Public Member Functions inherited from MemCore::ReferenceBase< Tentacle > | |
| auto | getObjectCountID () const noexcept |
| Get a unique ID for this object in the given domain. | |
| bool | isIdentical (const WeakPtr< Tentacle, Tentacle > &PossibleSelf) const noexcept |
| Check if this object is identical to the one used by the given pointer. | |
| void | mkAutoDestructive () |
| Marks this object as being automatically destructed, e.g. | |
| refcount_t | refcount () const noexcept |
| The strong reference count. | |
| ReferenceBase (Tentacle *that) noexcept | |
| Constructor, initializes reference counter to zero. | |
| const auto & | self () const |
| Return weak pointer to the object self. | |
| refcount_t | wrefcount () const noexcept |
| The weak reference count. | |
Public Attributes | |
| int | ActiveTexture |
| The texture unit for which these texture coordinates will be used; alternatively use myTexture here. | |
| MemCore::RefPtr< TextureBase > | myTexture |
| An associated texture object. | |
| Public Attributes inherited from Wizt::RenderBasin::VertexAttribute | |
| unsigned | DoublePrecision:1 |
| Load data in double precision. | |
| unsigned | Integer:1 |
| Hint whether the attribute is an integer data type in the shader, in which case it will be loaded differently. | |
| unsigned | Normalized:1 |
| Indicate whether this buffer will be normalized to the range [0,1] if it is an integer type loaded to a floating point attribute. | |
| unsigned | Signed:1 |
| Indicate if this integer type is signed. | |
| Public Attributes inherited from Wizt::Anemone::Tentacle | |
| Activity_t | Activity |
| A bit mask telling whether this tentacle should participate in the waving of an Anemone. | |
Additional Inherited Members | |
| Public Types inherited from Wizt::BufferArray | |
| enum | type |
| Possible types of buffer ID's. More... | |
| enum | usage |
| Specifies the expected usage pattern of the data store. More... | |
| Public Types inherited from MemCore::ReferenceBase< Tentacle > | |
| using | reference_domain_t = Tentacle |
| The type of the base class. | |
| using | SelfPtr_t = WeakPtr< Tentacle, Tentacle > |
| Type for a pointer to this object itself. | |
| Protected Types inherited from Wizt::BufferID | |
| enum | type |
| Possible types of buffer ID's. More... | |
| Protected Member Functions inherited from Wizt::BufferArray | |
| bool | load_subset (int offset, const void *ptr, memsize_t sz) const |
| Load a subset of the data on the graphics card, updating an existing buffer. | |
| bool | load_untyped (const void *ptr, memsize_t MemorySize, size_t nElements, usage usage_hint=STATIC_DRAW) |
| Loads the given data on the graphix card. | |
| Protected Member Functions inherited from MemCore::ReferenceBase< Tentacle > | |
| virtual void | extremeUnction () |
| A virtual function that will be called just before the object is destroyed. | |
| ReferenceBase & | operator= (const ReferenceBase &R) |
| Protected assignment operator (should not be called). | |
| void | suicide () |
| Delete this. | |
| virtual | ~ReferenceBase () |
| Virtual destructor. | |
| Protected Member Functions inherited from Wizt::BufferID | |
| bool | bindBuffer () const |
| const version of bind(), does not create a buffer ID. | |
| bool | bindBufferWithPossibleCreation () |
| Non-const version of bind(). | |
| BufferID (const type bufferType) noexcept | |
| The constructor does not yet create openGL buffers yet. | |
| GLuint | createId () noexcept |
| If no valid ID yet, call glCreateBuffers(). | |
| GLuint | getId () const noexcept |
| Get an Id without attempting to generate it. | |
| bool | isbound () const throw () |
| Verification function: buffer is bound? | |
| bool | isIndexBuffer () const |
| Check whether this is an index buffer. | |
| bool | isVertexArray () const |
| Check whether this is a vertex array. | |
| GLuint | makeId () |
| On first access, OpenGL buffers will be generated. This function must be called from within a valid OpenGL context. | |
| GLuint | operator() () |
| On first access, OpenGL buffers will be generated. This function must be called from within a valid OpenGL context. | |
| ~BufferID () noexcept | |
| Deletion of created OpenGL buffers. Note that this might be problematic here if called outside a valid OpenGL context. | |
| Protected Attributes inherited from Wizt::BufferID | |
| const type | target |
| The target type of this buffer ID. | |
Detailed Description
template<class Type>
class Wizt::TexCoordArray< Type >
class Wizt::TexCoordArray< Type >
Base class to store buffer arrays for texture coordinates.
