Creator for objects operating on certain kinds of Grid objects, providing an interface for the function Fiber::hasProperty() . More...

#include <GridActor.hpp>

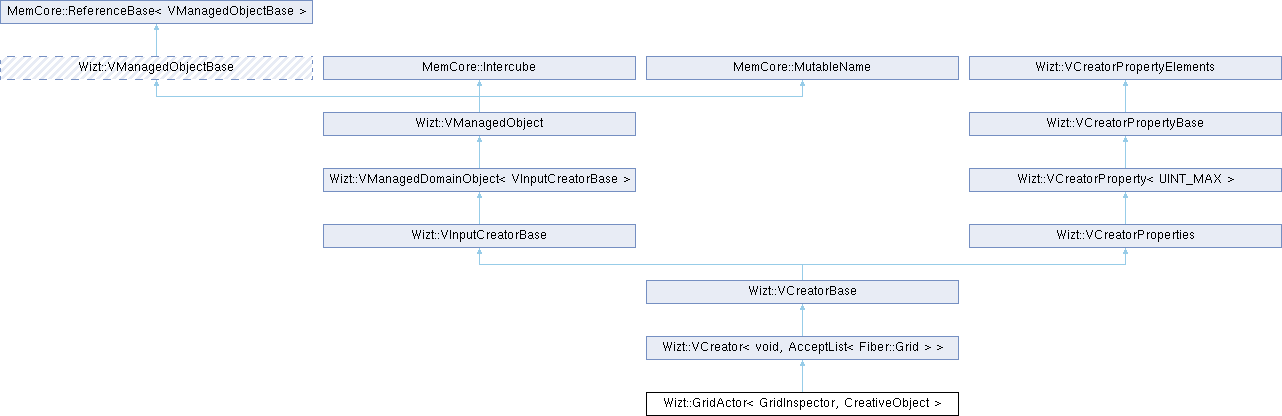

Inheritance diagram for Wizt::GridActor< GridInspector, CreativeObject >:

Public Types
typedef VCreator< CreativeObject, AcceptList< Fiber::Grid > >	Base_t

Public Types inherited from Wizt::VManagedDomainObject< VInputCreatorBase >
typedef What	Domain_t

Public Types inherited from MemCore::ReferenceBase< VManagedObjectBase >
typedef Object	reference_domain_t

typedef WeakPtr< Object, Object >	SelfPtr_t

Public Member Functions
	GridActor (const std::string &name, int quality, const RefPtr< VCreationPreferences > &VP=nullptr, const char *const CreatorReleaseIdentifier=VISH_INPUT_CREATOR_RELEASE_IDENTIFIER)
	Construct grid actor from name and quality description.

template<unsigned ID>
	GridActor (const VCreatorProperty< ID > &CreatorProperties, int quality, const RefPtr< VCreationPreferences > &VP=nullptr, const char *const CreatorReleaseIdentifier=VISH_INPUT_CREATOR_RELEASE_IDENTIFIER)
	Construct grid actor from creation properties.

VAcceptInfoList_t	accept (const RefPtr< VObject > &vobj) const override
	Acceptance function: check whether a grid exists with a Skeleton of type (1,1) (dimensionality one, index depth one -> edges).

Public Member Functions inherited from Wizt::VCreator< VObjectType DerivedVObject, class AcceptedTypes >
VAcceptInfoList_t	accept (const RefPtr< VObject > &vobj) const override

RefPtr< VObject >	create (const VCreatorBase::CreationInfo &name, const Intercube &CreationContext, const RefPtr< VCreationPreferences > &AdditionalPreferences) const override

string	createChildname (const string &parent_name) const override

	VCreator (const VCreatorProperties &CreatorProperties, int quality, const RefPtr< VCreationPreferences > &prop=nullptr, const char *const CreatorReleaseIdentifier=VISH_CREATOR_RELEASE_IDENTIFIER)

	VCreator (const VCreatorProperty< ID > &CreatorProperties, int quality, const RefPtr< VCreationPreferences > &prop=nullptr, const char *const ReleaseIdentifier=VISH_CREATOR_RELEASE_IDENTIFIER)

VCreatorProperty< ID1+ID2 >	operator+ (const VCreatorProperty< ID1 > &l, const VCreatorProperty< ID2 > &r)

VCreatorProperty< ID1+ID2 >	operator/ (const VCreatorProperty< ID1 > &l, const VCreatorProperty< ID2 > &r)

Public Member Functions inherited from Wizt::VCreatorBase
virtual RefPtr< VObject >	create (const CreationInfo &name, const Intercube &CreationContext, const RefPtr< VCreationPreferences > &AdditionalPreferences=nullptr) const=0

RefPtr< VObject >	create (const string &name={}, const RefPtr< VCreationPreferences > &AdditionalPreferences=nullptr) const

const VCreatorProperties &	getProperties () const

Public Member Functions inherited from Wizt::VInputCreatorBase
RefPtr< VCreationPreferences >	CreationPreferences (const RefPtr< VCreationPreferences > &AdditionalPreferences=nullptr) const

	VInputCreatorBase (const string &name, int prior, const RefPtr< VCreationPreferences > &prop, const char *vish_creator_release_identifier)

Public Member Functions inherited from Wizt::VManagedDomainObject< VInputCreatorBase >
const type_info &	getDomainType () const override

void	remove ()

	VManagedDomainObject (const string &name, int priority=DEFAULT_PRIORITY)

Public Member Functions inherited from Wizt::VManagedObject
string	getLoadModule () const

void	insert (const string &s, int priority=DEFAULT_PRIORITY)

void	remove ()

void	setPriority (int priority)

	VManagedObject (const string &name, int priority=DEFAULT_PRIORITY)

Public Member Functions inherited from MemCore::ReferenceBase< VManagedObjectBase >
auto	getObjectCountID () const noexcept

bool	isIdentical (const WeakPtr< Object, Object > &PossibleSelf) const noexcept

void	mkAutoDestructive ()

refcount_t	refcount () const noexcept

	ReferenceBase (Object *that) noexcept

const auto &	self () const

refcount_t	wrefcount () const noexcept

Public Member Functions inherited from MemCore::Intercube
void	addInterface (const RefPtr< InterfaceBase > &I) const

void	addInterfaceData (const Data &D)

void	addInterfaceData (const Data &D)

void	clearInterfaces ()

bool	const_iterateInterfaces (const RefPtr< InterfaceIterationParameter > &IIP) const

virtual RefPtr< InterfaceBase >	createInterface (const type_info &) const

RefPtr< InterfaceBase >	findInterface (const type_info &t) const

RefPtr< InterfaceBase >	getInterface (const type_info &t)

std::string	getInterfaceNames (const char delim=';') const

bool	gotNewInterfaceData (const Data &D)

bool	gotNewInterfaceData (mutex &M, const Data &D)

bool	gotNewInterfaceData (mutex &M, const Data &D)

bool	gotNewInterfaceData (mutex &M, const Data &D, const Selector &S)

bool	gotNewInterfaceData (mutex &M, const Data &D, const Selector *S)

bool	hasChangedInterfaceData (const Data &D) const

bool	hasChangedInterfaceData (const Data &D) const

bool	hasChangedInterfaceData (const Data &D, const Selector &) const

bool	hasChangedInterfaceData (const Data &D, const Selector *) const

bool	hasInterface (const type_info &t) const

bool	iterateInterfaces (const RefPtr< InterfaceIterationParameter > &IIP)

void	printInterfaces () const

void	registerInterface (const type_info &t)

void	removeInterface ()

void	removeInterfaceBase (const type_info &InterfaceBaseID)

Public Member Functions inherited from MemCore::MutableName
void	addNameChangeNotifier (const WeakPtr< Notifier > &)

std::string	BaseName (const char Separator) const

const std::string &	getName () const

	MutableName (const std::string &theName)

const std::string &	Name () const

void	rename (const std::string &newName)

void	setName (const std::string &newName)

Public Member Functions inherited from Wizt::VCreatorProperties
	VCreatorProperties (const string &keyname, const string &Description="", const string &Operatorname="")

	VCreatorProperties (const VCreatorProperty< ID > &VP)

Public Member Functions inherited from Wizt::VCreatorProperty< UINT_MAX >
	VCreatorProperty (const string &name)

	VCreatorProperty (const VCreatorProperty< ID1 > &l, const VCreatorProperty< ID2 > &r)

	VCreatorProperty (const VCreatorProperty< ID1 > &vp)

Public Member Functions inherited from Wizt::VCreatorPropertyBase
string &	Application ()

const string &	Application () const

string &	Arguments ()

const string &	Arguments () const

void	assign (const VCreatorPropertyBase &l)

string	Author () const

string &	AuthorKey ()

const string &	AuthorKey () const

string &	Category ()

const string &	Category () const

string &	Description ()

const string &	Description () const

string &	helpurl ()

const string &	helpurl () const

string &	Identifier ()

const string &	Identifier () const

string	keyname (const char separator[]="/") const

std::string &	operator() (unsigned i)

const string &	operator() (unsigned i) const

string &	OperatorName ()

const string &	OperatorName () const

string &	shorthelp ()

const string &	shorthelp () const

string &	SourceFile ()

const string &	SourceFile () const

string &	url ()

const string &	url () const

Additional Inherited Members
Static Public Member Functions inherited from Wizt::VCreatorBase
static int	iterateIdentifiers (const string &Identifier, IdentifierIterator &It)

Static Public Member Functions inherited from Wizt::VManagedDomainObject< VInputCreatorBase >
static bool	remove (const std::string &s)

static RefPtr< VManagedObject >	find (const string &s)

static int	iterate (VManagedObjectIterator_t VIt, int p_start=INT_MIN, int p_end=INT_MAX)

static int	size ()

static int	traverse (VManagedObjectIterator &VIt, int p_start=INT_MIN, int p_end=INT_MAX)

Static Public Member Functions inherited from Wizt::VManagedObject
static int	count ()

static VManagedObjectPtr	find (const type_info &, const std::string &s)

static bool	InitDomain (const type_info &)

static int	iterateModules (ModuleIterator &VIM)

static int	size (const type_info &)

static int	traverse (const type_info &, VManagedObjectIterator &VIt, int p_start, int p_end)

static void	UnloadVModule (const string &what, VRemoveItem &RI)

Static Public Member Functions inherited from MemCore::MutableName
static std::string	BaseName (const std::string &theName, const char Separator)

Public Attributes inherited from Wizt::VCreatorPropertyElements
	CATEGORY

	TEXTIDENTIFIER

	POLYMORPHY

	DESCRIPTION

	OPERATORNAME

	OPERATORFONT

	SHORTHELP

	AUTHOR

	HELPURL

	URL

	APPLICATION

	MAX_PROPERTY

Static Public Attributes inherited from Wizt::VManagedObject
static string	CurrentLoadModule

Protected Member Functions inherited from Wizt::VCreatorBase
void	deleteAllInstances (const type_info &DerivedType) const

	VCreatorBase (const string &CreatorKeyName, int priority, const RefPtr< VCreationPreferences > &prop, bool isStatic, const char *const vish_creator_release_identifier)

	VCreatorBase (const VCreatorProperties &CreatorProperties, int priority, const RefPtr< VCreationPreferences > &prop, bool isStatic, const char *const vish_creator_release_identifier)

Protected Member Functions inherited from MemCore::ReferenceBase< VManagedObjectBase >
virtual void	extremeUnction ()

ReferenceBase &	operator= (const ReferenceBase &R)

void	suicide ()

Protected Attributes inherited from Wizt::VCreatorPropertyBase
	NumberOfProperties

std::string	txt [NumberOfProperties]

Detailed Description

template<class GridInspector, class CreativeObject = void>
struct Wizt::GridActor< GridInspector, CreativeObject >

Creator for objects operating on certain kinds of Grid objects, providing an interface for the function Fiber::hasProperty() .

This template class provides a VCreator which requires input objects to provide Fiber::Grid objects that fulfull certain conditions, such as being a triangular surface or a set of lines.

Such conditions are formulated as a Fiber::BundleProperty, this template is a convenience helper class for VCreator objects that maps BundleProperty objects to VCreator acceptance functions.

For instance, one possible property to look for in a Grid object is the existence of a specific Skeleton. This property is modeled via a SkeletonExistence object. Code for objects operating on LineSets would look like this:

struct  LineSetOperationObject;

struct  MyGridInspector
{
static  SkeletonExistence       InspectionProperty()
        {
                return SkeletonExistence( LineSet::ID() );
        }
};

static  Ref<GridActor<MyGridInspector, LineSetOperationObject> >
        VLineSetOperationObjectCreator("Demo/LineSetOperationObject", ObjectQuality::DEMO);

Note that the function MyGridInspector::InspectionProperty() may return any object that is derived from class Fiber::BundleProperty and is accepted by Fiber::hasProperty(). For instance, a generic property may be defined as

struct  MyGridInspector
{
        struct  MyProperty : Fiber::BundleProperty
        {
                bool checkSlice(Slice&S, const string&GridName) const override
                {
                ...
                }
        };

static  MyProperty&InspectionProperty()
        {
        static  MyProperty myProperty;
                return myProperty;
        }
};

To generically check for a specific Grid derive from the GridProperty class:

struct  MyGridInspector
{
        struct  MyProperty : Fiber::GridProperty
        {
                bool checkGrid(const Grid&G) const override
                {
                        return true;
                }
        };

static  const MyProperty&InspectionProperty()
        {
        static  MyProperty myProperty;
                return myProperty;
        }
};

Note: User code may #define VERBOSE_GRIDACTOR prior to any header file inclusion to enable printing of some informative messages when the GridActor evaluates objects and tries to find out if there is a match.

, Fiber::BundleProperty, Fiber::GridSelector

Member Function Documentation

◆ accept()

template<class GridInspector , class CreativeObject = void>

VAcceptInfoList_t Wizt::GridActor< GridInspector, CreativeObject >::accept ( const RefPtr< VObject > & vobj ) const

inlineoverridevirtual

Acceptance function: check whether a grid exists with a Skeleton of type (1,1) (dimensionality one, index depth one -> edges).

Implements Wizt::VCreatorBase.

References Wizt::VCreator< CreativeObject, AcceptList< Fiber::Grid > >::accept(), Fiber::GridSelector::BundleSource(), Fiber::Iterator< T >::getValue(), Fiber::GridSelector::hasProperty(), and MemCore::Typename().
