Fiber::FiberIO::HDF5::FragmentLoader Class Reference

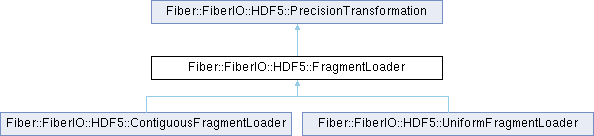

Inheritance diagram for Fiber::FiberIO::HDF5::FragmentLoader:

Public Types
using	FragmentNames_t = std::vector<string>

Public Member Functions
	FragmentLoader (GridLoader &theGridLoader, const RefPtr< Skeleton > &theContainingSkeleton, const RefPtr< Representation > &theRepresentation, const RefPtr< Field > &CurrentField, const string &FieldNameInFile, const RefPtr< H5Group > &theFieldGroup, const RefPtr< LoaderProgress > &lp, const WeakPtr< StorageTransformations::IOPerformance > &LoadPerformance, const RefPtr< FiberTypeBase > &TheFiberType, const string &the_path_info)
bool	getFragmentNames (FragmentNames_t &, F5Path *field)
virtual herr_t	apply (F5Path *field, const char *fragmentname)=0
herr_t	iterate (F5Path *field)
herr_t	loadContiguousFragment (F5Path *field, const char *fragmentname, const WeakPtr< Fiber::Skeleton > &theRepresentationTarget)
herr_t	loadUniformFragment (F5Path *field, const char *fragmentname)
bool	loadViaFragmentCache (const RefPtr< H5Group > &)
Public Member Functions inherited from Fiber::FiberIO::HDF5::PrecisionTransformation
void	setFragmentFiberType (const RefPtr< FiberTypeBase > &TheFiberType)
bool	doTransformPrecision () const
	PrecisionTransformation (const RefPtr< FiberTypeBase > &)
RefPtr< CreativeArrayBase >	newCreator (const RefPtr< LoaderProgress > &TheLoaderProgressor, const F5Fragment &theFragment, const DynamicSize &SI, const RefPtr< FiberIO::HDF5::FileNameInterface > &FragmentFileInfo, const WeakPtr< StorageTransformations::IOPerformance > &theLoadPerformance, const string &fragmentname, const string &FieldSource) const
void	shiftAttributes (Attributes &A)
	Modify attributes such as the range if the precision is changed during I/O.

Public Attributes
GridLoader &	myGridLoader
RefPtr< Skeleton >	mySkeleton
RefPtr< Field >	MyField
RefPtr< H5Group >	myFieldGroup
RefPtr< LoaderProgress >	LP
WeakPtr< StorageTransformations::IOPerformance >	LoadPerformance
string	path_info
int	GroupEntries = 0
hid_t	type_class_id = -1
RefPtr< H5GroupAccess >	GroupAccess
RefPtr< H5DatasetAccess >	DatasetAccess
RefPtr< H5FileAccess >	myVFD
std::unordered_set< std::string >	IgnoreAttributesOnLoad
Public Attributes inherited from Fiber::FiberIO::HDF5::PrecisionTransformation
RefPtr< FiberTypeBase >	FieldFiberType
	The type how it shall appear in the fiber bundle field.
RefPtr< FiberTypeBase >	FragmentFiberType
RefPtr< FiberTypeBase >	NativeFiberType
	The type how it is in the file, if its different.

Additional Inherited Members
Static Public Member Functions inherited from Fiber::FiberIO::HDF5::PrecisionTransformation
static bool	readPossiblyConvertedData (RefPtr< MemBase > &NewData, CreativeArrayBase &theCreator)
	Function is similar to CreativeArrayBase::create() but more efficient than raw HDF5 in case data need to be converted from float to double precision upon reading.
static bool	possiblyShiftData (RefPtr< MemBase > &NewData, CreativeArrayBase &theCreator)
static std::pair< bool, hid_t >	getFileType (const StorageTransformations::FilterSettings &FS, hid_t Mem_type_hid, const Fiber::Field &theField, F5Path *myPath)
	Determine whether that specific field thing shall be written in single precision.
static void	adjustFileWriteInformation (const StorageTransformations::FilterSettings &FS, CreativeArrayBase &FieldFragmentAttributes, Attributes &OverrideStorageAttributes, AttributeSet_t &DontSaveAttributeSet, RefPtr< ChunkBase > &Mb, bool WriteDoubleTypeInSinglePrecision, bool Write_Shifted_Single_Precision_Range)
	Modify the information that will be written to the file.
static void	adjustAttributeWriteInformation (const CreativeArrayBase &FragmentAttributes, Attributes &OverrideStorageAttributes, bool Write_Shifted_Single_Precision_Range)
static RefPtr< Chunk< Eagle::point3f > >	reduce_to_single_precision (const FixedArray< double, 3 > &Shift, const Chunk< Eagle::point3 > &Input)
static RefPtr< Chunk< Eagle::point3 > >	expand_to_double_precision (const FixedArray< double, 3 > &Shift, const Chunk< Eagle::point3f > &Input)
Static Public Attributes inherited from Fiber::FiberIO::HDF5::PrecisionTransformation
static constexpr const char	NumericalShiftAttributeName [] = FIBER_FRAGMENT_NUMERICALSHIFT_ATTRIBUTE

Member Function Documentation

loadViaFragmentCache()

bool Fiber::FiberIO::HDF5::FragmentLoader::loadViaFragmentCache

(

const RefPtr< H5Group > &

frag_cache

)

Indicate that the data managed here are already saved, and their "last saved" time is identical to the construction time of this Creator.

References std::data(), Fiber::FiberIO::HDF5::PrecisionTransformation::FieldFiberType, and Fiber::FiberIO::HDF5::PrecisionTransformation::NativeFiberType.

Referenced by Fiber::FiberIO::HDF5::ContiguousFragmentLoader::loadAllFragments().
