Abstract procedural description of a data element which may be used to construct arrays and fields. More...

#include <FiberTypeBase.hpp>

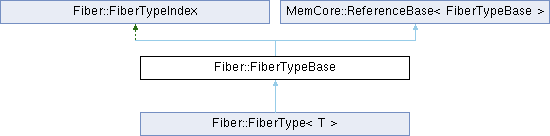

Inheritance diagram for Fiber::FiberTypeBase:

Public Types
using	WeakPtr_t = MemCore::WeakPtr< FiberTypeBase, FiberTypeBase >

Public Types inherited from MemCore::ReferenceBase< FiberTypeBase >
typedef Object	reference_domain_t

typedef WeakPtr< Object, Object >	SelfPtr_t

Public Member Functions
	FiberTypeBase (const FiberTypeIndex &FTI)

bool	remember ()

virtual const std::type_info &	getType () const =0
	Type ID for this type.

virtual bool	isType (const std::type_info &theType) const =0

template<class ... T>
bool	isType () const

virtual MemCore::RefPtr< MemCore::ChunkBase >	newChunk (size_t N) const =0
	Allocate a MemCore::Chunk with the given number of elements.

unsigned	multiplicity () const
	How many atomic elements construct this type.

unsigned	mem_size () const
	How many bytes this object occupies in memory.

int	rank () const
	For tensorial objects, specify the rank.

int	grade () const
	Grade of multivectors.

virtual int	element_index (const int i[]) const =0
	Information about the organization of elements of a multi-ranked object.

unsigned	array_element_size () const
	The size of an array element in memory if this type is an array.

virtual WeakPtr_t	element_type () const =0

virtual std::string	coordinate_component_name (int i) const =0
	Return the textual naming scheme of the ith coordinate.

virtual const std::type_info &	chart_type () const =0

std::string	chart_name () const

std::string	component_name (unsigned ComponentId) const
	A textual description for each member, as derived from the coordinate's component names, the indexing scheme and the grade-.

int	chart_dimension () const

virtual int	indexing_scheme (int i) const =0

bool	is_lower_index (int i) const

bool	is_upper_index (int i) const

virtual const char *	nontensor () const =0

std::string	description () const

const FiberTypeIndex &	getFiberTypeIndex () const

auto	operator<=> (const FiberTypeBase &FTB) const

auto	operator== (const FiberTypeBase &FTB) const

void	speak () const

auto	value_type_size () const
	How many bytes this object occupies in memory.

Public Member Functions inherited from MemCore::ReferenceBase< FiberTypeBase >
auto	getObjectCountID () const noexcept

bool	isIdentical (const WeakPtr< Object, Object > &PossibleSelf) const noexcept

void	mkAutoDestructive ()

refcount_t	refcount () const noexcept

	ReferenceBase (Object *that) noexcept

const auto &	self () const

refcount_t	wrefcount () const noexcept

Static Public Member Functions
static WeakPtr_t	find (const FiberTypeIndex &FTI)

static WeakPtr_t	find (const std::type_info &T)

Additional Inherited Members
Protected Types inherited from MemCore::ReferenceBase< FiberTypeBase >
typedef Object	reference_domain_t

typedef WeakPtr< Object, Object >	SelfPtr_t

Protected Member Functions inherited from Fiber::FiberTypeIndex
auto	operator<=> (const FiberTypeIndex &) const =default
	https://en.cppreference.com/w/cpp/language/default_comparisons https://devblogs.microsoft.com/cppblog/simplify-your-code-with-rocket-science-c20s-spaceship-operator/

std::string	description () const

auto	value_type_size () const

Protected Member Functions inherited from MemCore::ReferenceBase< FiberTypeBase >
virtual void	extremeUnction ()

ReferenceBase &	operator= (const ReferenceBase &R)

void	suicide ()

auto	getObjectCountID () const noexcept

bool	isIdentical (const WeakPtr< Object, Object > &PossibleSelf) const noexcept

void	mkAutoDestructive ()

refcount_t	refcount () const noexcept

	ReferenceBase (Object *that) noexcept

const auto &	self () const

refcount_t	wrefcount () const noexcept

Protected Attributes inherited from Fiber::FiberTypeIndex
unsigned	multiplicity = 0
	How many atomic elements construct this type.

unsigned	mem_size = 0
	How many bytes this object occupies in memory.

int	rank = 0
	For tensorial objects, specify the rank.

int	grade = 0
	Grade of multivectors.

unsigned	array_element_size = 0
	The size of an array element in memory if the type is an array.

std::string	type_name

std::string	element_type_name

std::string	chart_name
	Return the textual naming scheme of the ith coordinate.

int	chart_dimension = 0
	A textual description for each member, as derived from the coordinate's component names, the indexing scheme and the grade-.

Detailed Description

Abstract procedural description of a data element which may be used to construct arrays and fields.

This is an object-oriented version of the generic MetaInfo class.

Constructor & Destructor Documentation

◆ FiberTypeBase()

Fiber::FiberTypeBase::FiberTypeBase ( const FiberTypeIndex & FTI )

inline

Parameters

isStaticObject Specifies when this object is actually a static object, not a dynamically allocated one (which is essential for reference counting).

Member Function Documentation

◆ array_element_size()

unsigned Fiber::FiberTypeBase::array_element_size ( ) const

inline

The size of an array element in memory if this type is an array.

SizeOf<typename FiberInfo_t::element_t>::memsize()

Fiber::SizeOf

Definition FiberType.hpp:28

References Fiber::FiberTypeIndex::array_element_size.

◆ chart_type()

virtual const std::type_info & Fiber::FiberTypeBase::chart_type ( ) const

pure virtual

Implemented in Fiber::FiberType< T >.

◆ component_name()

string Fiber::FiberTypeBase::component_name ( unsigned ComponentId ) const

A textual description for each member, as derived from the coordinate's component names, the indexing scheme and the grade-.

Parameters

ComponentId An integer between 0 and multiplicity();

This is a temporary workaround until the full notation of the aforementioned paper is implemented here procedurally. This will require implementing and working with the epsilon-tensor to compute permutations. WB 11.12.2014

References coordinate_component_name(), getType(), grade(), indexing_scheme(), is_lower_index(), is_upper_index(), multiplicity(), rank(), and MemCore::Typename().

Referenced by std::to_string().

◆ coordinate_component_name()

virtual std::string Fiber::FiberTypeBase::coordinate_component_name ( int i ) const

pure virtual

Return the textual naming scheme of the ith coordinate.

Parameters

a	value beteen 0 and char_dimension()

Implemented in Fiber::FiberType< T >.

References Fiber::FiberTypeIndex::chart_name.

Referenced by component_name(), and std::to_string().

◆ element_index()

virtual int Fiber::FiberTypeBase::element_index ( const int i[] ) const

pure virtual

Information about the organization of elements of a multi-ranked object.

The index i must be smaller than rank().

Implemented in Fiber::FiberType< T >.

◆ getType()

virtual const std::type_info & Fiber::FiberTypeBase::getType ( ) const

pure virtual

Type ID for this type.

Implemented in Fiber::FiberType< T >.

Referenced by component_name(), and std::to_string().

◆ indexing_scheme()

virtual int Fiber::FiberTypeBase::indexing_scheme ( int i ) const

pure virtual

Parameters

i	The index number, between 0 and rank()

Implemented in Fiber::FiberType< T >.

Referenced by component_name(), and std::to_string().

◆ is_lower_index()

bool Fiber::FiberTypeBase::is_lower_index ( int i ) const

inline

Parameters

i	The index number, between 0 and rank()

Referenced by component_name().

◆ is_upper_index()

bool Fiber::FiberTypeBase::is_upper_index ( int i ) const

inline

Parameters

i	The index number, between 0 and rank()

Referenced by component_name().

◆ multiplicity()

unsigned Fiber::FiberTypeBase::multiplicity ( ) const

inline

How many atomic elements construct this type.

Note that in memory there might be more than that due to alignment issues, see mem_size().

References Fiber::FiberTypeIndex::multiplicity.

Referenced by component_name(), and std::to_string().

◆ newChunk()

virtual MemCore::RefPtr< MemCore::ChunkBase > Fiber::FiberTypeBase::newChunk ( size_t N ) const

pure virtual

Allocate a MemCore::Chunk with the given number of elements.

Implemented in Fiber::FiberType< T >.

◆ rank()

int Fiber::FiberTypeBase::rank ( ) const

inline

For tensorial objects, specify the rank.

A matrix has rank two, a vector has rank one. Scalars have rank zero. The number of elements (multiplicity() ) can at most be chart_dimension() to the power of rank().

References Fiber::FiberTypeIndex::rank.

Referenced by component_name(), and std::to_string().

◆ value_type_size()

auto Fiber::FiberTypeIndex::value_type_size ( ) const

inline

How many bytes this object occupies in memory.

Alias for mem_size(), for compatiblity with Chunk::value_type_size().
