Fiber::Transformator Class Reference

Callback interface to allow interfacing a full transformation pipeline provided by external means, e.g. More...

#include <Atlas.hpp>

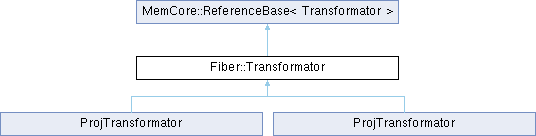

Inheritance diagram for Fiber::Transformator:

Classes
struct	FieldTransformator

Public Member Functions
virtual FieldTransformator	get (const ChartID &TargetChartName, const Skeleton &FieldContainer, const FieldID &Fieldname)=0
	Callback function to provide a Transformation into the specific chart from the available coordinate representation.
Public Member Functions inherited from MemCore::ReferenceBase< Transformator >
auto	getObjectCountID () const noexcept
bool	isIdentical (const WeakPtr< Object, Object > &PossibleSelf) const noexcept
void	mkAutoDestructive ()
refcount_t	refcount () const noexcept
	ReferenceBase (Object *that) noexcept
const auto &	self () const
refcount_t	wrefcount () const noexcept

Additional Inherited Members
Public Types inherited from MemCore::ReferenceBase< Transformator >
typedef Object	reference_domain_t
typedef WeakPtr< Object, Object >	SelfPtr_t
Protected Member Functions inherited from MemCore::ReferenceBase< Transformator >
virtual void	extremeUnction ()
ReferenceBase &	operator= (const ReferenceBase &R)
void	suicide ()

Detailed Description

Callback interface to allow interfacing a full transformation pipeline provided by external means, e.g.

library functions in a plugin.

Application code needs to derive from the Transformator class and instantiate a single global instance, e.g. as follows:

struct  MyTransformator : Transformator
{
        ... implement virtual function here ...
};

static Ref<MyTransformator> myTransformator;

[Implementation details]

Transformator object register themselves in the global Atlas singleton, i.e. in Atlas::GlobalTransformators(). Upon destruction they un-register themselves from this list of global transformators. It is therefore safe to define Transformator objects as static variables (via the MemCore::Ref<> template to honor reference-counting) in a plugin, but they may also be provided temporarily in another context.

Member Function Documentation

get()

virtual FieldTransformator Fiber::Transformator::get ( const ChartID &  TargetChartName, const Skeleton &  FieldContainer, const FieldID &  Fieldname  )

pure virtual

Callback function to provide a Transformation into the specific chart from the available coordinate representation.

No actual data are transformed by this call, it merely specifies that the given coordinate transformation is possible.

The actual data transformation is performed by the Transformation object that is returned by this call.

It is the responsibility of the Transformator to identify an appropriate source representation within the provided Skeleton and to return the field in this given representation.

The Sourcefield is mandatory, the SourcePositions are optional: Many transformation functions are location-dependent, so the transformation will need the coordinate location of some value, thus the positions are provided when transforming some data field. In some special cases the transformations are location-independent, on which case the SourcePositions field is not needed. Also, if the positions themselves are transformed, then this field is not available yet and will be a nullptr.

Implemented in ProjTransformator, and ProjTransformator.
