Fiber::Transformation Class Reference

Transformation objects that provide chart transformations, particularily for coordinates, but also other vectorial, tensorial or geometric types. More...

#include <Transformation.hpp>

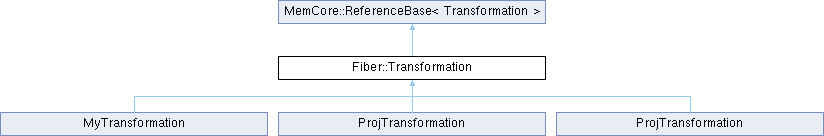

Inheritance diagram for Fiber::Transformation:

Public Member Functions
virtual RefPtr< Field >	transform (const Field &F, const RefPtr< Field > &Positions) const
	Transformation of an entire Field, where the Positions of the source coordinate system is provided unless transforming coordinates.
virtual RefPtr< CreativeArrayBase >	transform (CreativeArrayBase &F, const RefPtr< CreativeArrayBase > &Positions) const
	Transformation of a Field fragment, allowing to provide a customized Creator.
virtual RefPtr< MemBase >	transform (const RefPtr< MemBase > &SourceData, const RefPtr< CreativeArrayBase > &SourcePositionsFragment) const =0
	Implementation of the actual coordinate transition, the function must yield the transformed field in the destination coordinate system.
Public Member Functions inherited from MemCore::ReferenceBase< Transformation >
auto	getObjectCountID () const noexcept
bool	isIdentical (const WeakPtr< Object, Object > &PossibleSelf) const noexcept
void	mkAutoDestructive ()
refcount_t	refcount () const noexcept
	ReferenceBase (Object *that) noexcept
const auto &	self () const
refcount_t	wrefcount () const noexcept

Additional Inherited Members
Public Types inherited from MemCore::ReferenceBase< Transformation >
typedef Object	reference_domain_t
typedef WeakPtr< Object, Object >	SelfPtr_t
Protected Member Functions inherited from MemCore::ReferenceBase< Transformation >
virtual void	extremeUnction ()
ReferenceBase &	operator= (const ReferenceBase &R)
void	suicide ()

Detailed Description

Transformation objects that provide chart transformations, particularily for coordinates, but also other vectorial, tensorial or geometric types.

The actual transformation routine needs to be implemented in a derived object implementing the transform() function, where it needs to check the respective type.

Transformation objects are based on the textual name of Chart objects and can be installed globally - valid for all kinds of Chart objects based on the same name - or locally within a specific Grid object. If they are specific to a Grid object, identification is by name as well, but the Transformation objects may carry Grid-specific transformation parameters.

Example for providing a global transformation object:

struct  MyTransformation : Transformation
{
        RefPtr<MemBase> transform(const RefPtr<MemBase>&MB) const override
        {
                if (RefPtr<TypedArray<PhysicalSpace::point>> Pts = MB)
                {
                        // ... implement coordinate transformation here ...
                }
                return nullptr;
        }
};

MyTransformation FromSpecialToStandard = // initialize transformation object
                                        ;

        Atlas::GlobalTransformations()[ "StandardCartesian3D" ][ "SpecialChart" ] = FromSpecialToStandard.self();

Similarly, Transformation objects can be added to the Atlas::LocalTransformations within an Atlas instance, such as available on a Grid via Grid::MyAtlas().

Eventually, application code may request a Field in a coordinate system from a Grid object, which - if not existent yet - will be computed via invokation of the Transformation object, possibly transitiong a chain of transformations recursively until success.

if (RefPtr<Field>
    StdCoordinateField = myGrid.getField(StandardCartesian3D, FIBER_POSITIONS ) )
{
}

Member Function Documentation

transform() [1/3]

RefPtr< Field > Fiber::Transformation::transform ( const Field &  F, const RefPtr< Field > &  Positions  ) const

virtual

Transformation of an entire Field, where the Positions of the source coordinate system is provided unless transforming coordinates.

Usually the child class will not need to override this function, but the function operating on the MemBase objects.

References transform().

transform() [2/3]

virtual RefPtr< MemBase > Fiber::Transformation::transform ( const RefPtr< MemBase > &  SourceData, const RefPtr< CreativeArrayBase > &  SourcePositionsFragment  ) const

pure virtual

Implementation of the actual coordinate transition, the function must yield the transformed field in the destination coordinate system.

The function must check the type of the SourceData and provide actual type-dependent transformation. Note that the field name is not available in order to avoid implementations that involve usage of the field name - all transformations must be based on types only to ensure consistency of transformations.

transform() [3/3]

RefPtr< CreativeArrayBase > Fiber::Transformation::transform ( CreativeArrayBase &  F, const RefPtr< CreativeArrayBase > &  Positions  ) const

virtual

Transformation of a Field fragment, allowing to provide a customized Creator.

By default, this function will provide a FunctionalCreator. The Positions of the source coordinate system is provided unless transforming coordinates. Usually the child class will not need to override this function, but the function operating on the MemBase objects.

References MemCore::CreatorBase< class Domain >::create(), MemCore::ReferenceBase< class Object >::self(), and transform().
