Fiber::MultiArrayBase< 1, T > Class Template Reference

Stop the recursive definition of multidimensional arrays. More...

#include <MultiArray.hpp>

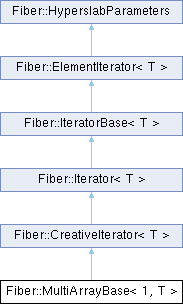

Inheritance diagram for Fiber::MultiArrayBase< 1, T >:

Public Types
enum	{ Dims = 1 }
typedef CreativeIterator< T >	Base_t
typedef T	value_type
typedef Iterator< T >	Storage_t
	The layout of the stored data.
typedef Iterator< T >::reference_t	reference_t
typedef META::IF< MetaInfo< T >::MULTIPLICITY==1, component_t, FixedArray_t >::result	ValueBase_t
typedef MetaInfo< T >::element_t	component_t
typedef Iterator< T >	SliceStorge_t
	The storage type of a subslice.
typedef MultiArrayBase< N-1, T >	Slice_t
	The type of a slice of this array All data in this slice are still contiguous.
Public Types inherited from Fiber::CreativeIterator< T >
typedef MetaInfo< T >::element_t	component_t
typedef FixedArray< component_t, MetaInfo< T >::MULTIPLICITY >	FixedArray_t
typedef META::IF< MetaInfo< T >::MULTIPLICITY==1, component_t, FixedArray_t >::result	ValueBase_t
typedef META::IF< MetaInfo< T >::MULTIPLICITY==1, void, FixedArray_t >::result	FixedArrayBase_t
	If the type has a non-zero multiplicity, then there exists an associated base class of fixed arrays.
typedef Eagle::Vector< component_t, MetaInfo< T >::MULTIPLICITY >	VectorArray_t
typedef META::IF< MetaInfo< T >::RANK==0, void, VectorArray_t >::result	VectorArrayBase_t
	If the type has a non-zero rank, then there exists an associated base class of vectors.
Public Types inherited from Fiber::Iterator< T >
typedef IteratorBase< T >	Base_t
typedef T	value_t
typedef Eagle::MetaInfo< value_t >	FI
typedef FI::element_t	component_t
typedef ElementryArrayTrait< T >::basetype_t	array_t
typedef T &	reference_t
	The reference type.
Public Types inherited from Fiber::ElementIterator< T >
typedef Eagle::MetaInfo< T >	info_t
typedef info_t::element_t	element_info_t

Public Member Functions
	MultiArrayBase (const Iterator< T > &data, const MultiIndex< Dims > &Extension, DataCreator< T > *Crec)
	One-dimensional constructor.
	MultiArrayBase (T *data, const MultiIndex< 1 > &Extension, DataCreator< T > *Crec)
	Constructor.
const Storage_t &	storage () const
	Reference to the stored data.
void	Resize (T *newData, const MultiIndex< 1 > &D)
	Change internally stored memory layout.
void	Resize (T *newData, const index_t &D)
	Change internally stored memory layout, shortcut for 1D.
unsigned long	memsize () const
	Return the number of bytes occupied by this MultiArray.
Iterator< T >	getData (index_t i) const
const MultiIndex< Dims > &	Size () const
	Return the number of elements in each direction, a multidimensional index.
index_t	nElements () const
	Return the total number of elements This is equivalent to calling Size().size().
const reference_t	operator[] (index_t i) const
	Return a stored element accessed by a linear index possible invoking the local creator if such exists.
reference_t	operator[] (index_t i)
	Return a reference to a stored element via a linear index, possible invoking the local creator if such exists.
const reference_t	operator[] (const MultiIndex< 1 > &I) const
	Index via multidimensional index, readonly.
reference_t	operator[] (const MultiIndex< 1 > &I)
	Access via multidimensional index, modifyable.
const reference_t	slice (index_t i) const
const reference_t	first () const
	Return reference to the first element.
const reference_t	last () const
	Return last element in the array.
reference_t	getElement (const MultiIndex< N > &I) const
	Element access.
Public Member Functions inherited from Fiber::CreativeIterator< T >
	CreativeIterator (const Iterator< T > &D, DataCreator< T > *C=0)
	CreativeIterator (index_t length, T *data, DataCreator< T > *C=0)
	CreativeIterator (const CreativeIterator &CI)
Public Member Functions inherited from Fiber::Iterator< T >
	Iterator (index_t howmany, T *Ptr)
	Construct view pointer from contiguous storage.
	Iterator (const HyperslabParameters &P, T *Ptr)
	Construct iterator with alternative data, but otherwise compatible properties.
	Iterator (const Iterator &P)
	Copy Constructor.
	Iterator (const Iterator &P, int)
	Copy Constructor with irrelevant member selection2.
template<int Components>
	Iterator (index_t howmany, FixedArray< T, Components > *Ptr, int component)
	Construct view pointer to a single component within a contiguous storage of array objects.
template<int Components>
	Iterator (const Iterator< FixedArray< T, Components > > &It, int component)
template<int Components>
	Iterator (index_t Length, Eagle::VVector< Components, T > *Ptr, int component)
	Construct view pointer to a single component within a contigous storage of array objects.
	Iterator (index_t ishift, const Iterator &P, const Add &)
	Addition Constructor.
Iterator< array_t >	getArrayIterator () const
	Get an iterator that operates on associated FixedArray<> subjects.
Iterator< component_t >	getComponent (int n) const
	Get an iterator that operates on the nth component.
T &	operator[] (index_t i) const
	Access an element of the array, writeable.
const T &	getValue (index_t i) const
	Get the value, readonly.
void	set (const T &Value)
	Set all elements to the same value.
const_ranged_for_iterator< T >	begin () const
const_ranged_for_iterator< T >	end () const
ranged_for_iterator< T >	begin ()
ranged_for_iterator< T >	end ()
template<class S>
T &	operator[] (const ranged_for_iterator< S > &I)
template<class S>
const T &	operator[] (const ranged_for_iterator< S > &I) const
template<class S>
T &	operator[] (const const_ranged_for_iterator< S > &I)
template<class S>
const T &	operator[] (const const_ranged_for_iterator< S > &I) const
Public Member Functions inherited from Fiber::IteratorBase< T >
	IteratorBase (index_t Length, T *d, index_t Stride, index_t Offset)
	IteratorBase (const IteratorBase &IB)
	IteratorBase (const HyperslabParameters &IB, T *d)
	Construct compatible iterator with different data.
	IteratorBase (index_t ishift, const IteratorBase &P, const Add &)
Public Member Functions inherited from Fiber::ElementIterator< T >
	ElementIterator (index_t Length, T *Data, index_t Stride, index_t Offset)
	Construct an element iterator.
	ElementIterator (const ElementIterator &It)
	Copy Constructor.
	ElementIterator (const HyperslabParameters &It, T *newData)
	Constructor compatible iterator with new data.
	ElementIterator (index_t i, const ElementIterator &It, const Add &)
	Addition Constructor.
void	SetNewData (T *newData, index_t newLength) throw ()
	Change the stored data chunk to a new location and length.
T *	ptr (int c=0) const
	Return pointer to data, which is good for C interface, but otherwise, avoid that.
T &	getElement (index_t i, int c) const
	Element access (no range check!).
	operator bool () const
	Implicit conversion to boolean: Check whether this is a valid pointer.
Public Member Functions inherited from Fiber::HyperslabParameters
	HyperslabParameters (index_t Length, index_t Stride, index_t Offset) throw ()
	Simple constructorm sets shift and cropped members to zero.
	HyperslabParameters (const HyperslabParameters &H) throw ()
	Copy constructor.
	HyperslabParameters (index_t i, const HyperslabParameters &H) throw ()
	Pointer addition constructor (sets the shift member).
index_t	getLength () const throw ()
	Return the number of elements which can be accessed through this ElementIterator.
index_t	getOffset () const throw ()
index_t	getStride () const throw ()
index_t	getShift () const throw ()
index_t	getCropped () const throw ()
bool	isSeparatedCompound () const throw ()
	Tell if the iterator refers to a data set which is built from arrays of structure members, i.e.
index_t	multiplicity () const throw ()
	Return number of elements which form an entity.
index_t	maxcount () const throw ()
	Return the number of steps which can be traversed through this ElementIterator.
index_t	count () const throw ()
	Return the number of steps which can be traversed through this ElementIterator.
void	setCount (index_t size) throw ()
	Set the maximally allowed count, i.e.
index_t	getIndex (index_t i, int c) const throw ()
	Given a major and a minor index, compute the overall index in the dataset according to.
HyperslabParameters &	getHyperslabParameters () throw ()
const HyperslabParameters &	getHyperslabParameters () const throw ()

Public Attributes
MultiIndex< Dims >	dimensions

Additional Inherited Members
Protected Member Functions inherited from Fiber::ElementIterator< T >
void	incPtr (index_t what)
Protected Attributes inherited from Fiber::CreativeIterator< T >
DataCreator< T > *	myDataCreator
Protected Attributes inherited from Fiber::ElementIterator< T >
index_t	length
	The length (number of elements) of the data array.
index_t	stride
index_t	offset
index_t	shift
index_t	cropped
Protected Attributes inherited from Fiber::HyperslabParameters
index_t	length
	The length (number of elements) of the data array.
index_t	stride
index_t	offset
index_t	shift
index_t	cropped

Detailed Description

template<class T>
class Fiber::MultiArrayBase< 1, T >

Stop the recursive definition of multidimensional arrays.

Note

At each element access, the access function checks for the existence of an Creator. This additional conditional check turns down performance significantly. However, it is required as all the elements of even a logically consecutive slice might reside in different blocks of data, and in this worst case each block needs to be checked. Any better solution here would be greatly appreciated!!

Member Function Documentation

getElement()

reference_t Fiber::MultiArrayBase< N, T >::getElement ( const MultiIndex< N > & I ) const

inline

Element access.

Todo

Creation of elements not tested!
