Fiber::CreativeIterator< T > Class Template Reference

An iterator with an optional DataCreator, which is just a class to intercept creation of data along a subset. More...

#include <CreativeIterator.hpp>

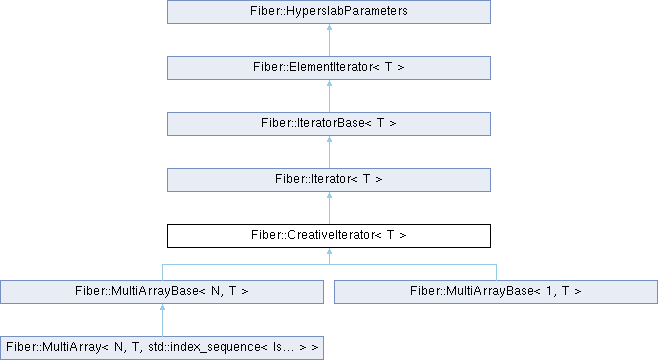

Inheritance diagram for Fiber::CreativeIterator< T >:

Public Types
typedef MetaInfo< T >::element_t	component_t
typedef FixedArray< component_t, MetaInfo< T >::MULTIPLICITY >	FixedArray_t
typedef META::IF< MetaInfo< T >::MULTIPLICITY==1, component_t, FixedArray_t >::result	ValueBase_t
typedef META::IF< MetaInfo< T >::MULTIPLICITY==1, void, FixedArray_t >::result	FixedArrayBase_t
	If the type has a non-zero multiplicity, then there exists an associated base class of fixed arrays.
typedef Eagle::Vector< component_t, MetaInfo< T >::MULTIPLICITY >	VectorArray_t
typedef META::IF< MetaInfo< T >::RANK==0, void, VectorArray_t >::result	VectorArrayBase_t
	If the type has a non-zero rank, then there exists an associated base class of vectors.
Public Types inherited from Fiber::Iterator< T >
typedef IteratorBase< T >	Base_t
typedef T	value_t
typedef Eagle::MetaInfo< value_t >	FI
typedef FI::element_t	component_t
typedef ElementryArrayTrait< T >::basetype_t	array_t
typedef T &	reference_t
	The reference type.
Public Types inherited from Fiber::ElementIterator< T >
typedef Eagle::MetaInfo< T >	info_t
typedef info_t::element_t	element_info_t

Public Member Functions
	CreativeIterator (const Iterator< T > &D, DataCreator< T > *C=0)
	CreativeIterator (index_t length, T *data, DataCreator< T > *C=0)
	CreativeIterator (const CreativeIterator &CI)
Public Member Functions inherited from Fiber::Iterator< T >
	Iterator (index_t howmany, T *Ptr)
	Construct view pointer from contiguous storage.
	Iterator (const HyperslabParameters &P, T *Ptr)
	Construct iterator with alternative data, but otherwise compatible properties.
	Iterator (const Iterator &P)
	Copy Constructor.
	Iterator (const Iterator &P, int)
	Copy Constructor with irrelevant member selection2.
template<int Components>
	Iterator (index_t howmany, FixedArray< T, Components > *Ptr, int component)
	Construct view pointer to a single component within a contiguous storage of array objects.
template<int Components>
	Iterator (const Iterator< FixedArray< T, Components > > &It, int component)
template<int Components>
	Iterator (index_t Length, Eagle::VVector< Components, T > *Ptr, int component)
	Construct view pointer to a single component within a contigous storage of array objects.
	Iterator (index_t ishift, const Iterator &P, const Add &)
	Addition Constructor.
Iterator< array_t >	getArrayIterator () const
	Get an iterator that operates on associated FixedArray<> subjects.
Iterator< component_t >	getComponent (int n) const
	Get an iterator that operates on the nth component.
T &	operator[] (index_t i) const
	Access an element of the array, writeable.
const T &	getValue (index_t i) const
	Get the value, readonly.
void	set (const T &Value)
	Set all elements to the same value.
const_ranged_for_iterator< T >	begin () const
const_ranged_for_iterator< T >	end () const
ranged_for_iterator< T >	begin ()
ranged_for_iterator< T >	end ()
template<class S >
T &	operator[] (const ranged_for_iterator< S > &I)
template<class S >
const T &	operator[] (const ranged_for_iterator< S > &I) const
template<class S >
T &	operator[] (const const_ranged_for_iterator< S > &I)
template<class S >
const T &	operator[] (const const_ranged_for_iterator< S > &I) const
Public Member Functions inherited from Fiber::IteratorBase< T >
	IteratorBase (index_t Length, T *d, index_t Stride, index_t Offset)
	IteratorBase (const IteratorBase &IB)
	IteratorBase (const HyperslabParameters &IB, T *d)
	Construct compatible iterator with different data.
	IteratorBase (index_t ishift, const IteratorBase &P, const Add &)
Public Member Functions inherited from Fiber::ElementIterator< T >
	ElementIterator (index_t Length, T *Data, index_t Stride, index_t Offset)
	Construct an element iterator.
	ElementIterator (const ElementIterator &It)
	Copy Constructor.
	ElementIterator (const HyperslabParameters &It, T *newData)
	Constructor compatible iterator with new data.
	ElementIterator (index_t i, const ElementIterator &It, const Add &)
	Addition Constructor.
void	SetNewData (T *newData, index_t newLength) throw ()
	Change the stored data chunk to a new location and length.
T *	ptr (int c=0) const
	Return pointer to data, which is good for C interface, but otherwise, avoid that.
T &	getElement (index_t i, int c) const
	Element access (no range check!).
	operator bool () const
	Implicit conversion to boolean: Check whether this is a valid pointer.
Public Member Functions inherited from Fiber::HyperslabParameters
	HyperslabParameters (index_t Length, index_t Stride, index_t Offset) throw ()
	Simple constructorm sets shift and cropped members to zero.
	HyperslabParameters (const HyperslabParameters &H) throw ()
	Copy constructor.
	HyperslabParameters (index_t i, const HyperslabParameters &H) throw ()
	Pointer addition constructor (sets the shift member).
index_t	getLength () const throw ()
	Return the number of elements which can be accessed through this ElementIterator.
index_t	getOffset () const throw ()
index_t	getStride () const throw ()
index_t	getShift () const throw ()
index_t	getCropped () const throw ()
bool	isSeparatedCompound () const throw ()
	Tell if the iterator refers to a data set which is built from arrays of structure members, i.e.
index_t	multiplicity () const throw ()
	Return number of elements which form an entity.
index_t	maxcount () const throw ()
	Return the number of steps which can be traversed through this ElementIterator.
index_t	count () const throw ()
	Return the number of steps which can be traversed through this ElementIterator.
void	setCount (index_t size) throw ()
	Set the maximally allowed count, i.e.
index_t	getIndex (index_t i, int c) const throw ()
	Given a major and a minor index, compute the overall index in the dataset according to.
HyperslabParameters &	getHyperslabParameters () throw ()
const HyperslabParameters &	getHyperslabParameters () const throw ()

Protected Attributes
DataCreator< T > *	myDataCreator
Protected Attributes inherited from Fiber::ElementIterator< T >
index_t	length
	The length (number of elements) of the data array.
index_t	stride
index_t	offset
index_t	shift
index_t	cropped
Protected Attributes inherited from Fiber::HyperslabParameters
index_t	length
	The length (number of elements) of the data array.
index_t	stride
index_t	offset
index_t	shift
index_t	cropped

Additional Inherited Members
Protected Member Functions inherited from Fiber::ElementIterator< T >
void	incPtr (index_t what)

Detailed Description

template<class T>
class Fiber::CreativeIterator< T >

An iterator with an optional DataCreator, which is just a class to intercept creation of data along a subset.

The overhead of using a data creator is small if there is none, as it is just checking for its existence here. If a data creator is specified, then there will be a virtual function call overhead, which however is still fast as compared to what the data creator will actually do.

Examples

ColoredLines.cpp, ComputeNormals.cpp, CreatorExample.cpp, CrystalSurface.cpp, Dreibein.cpp, EvolutionSurface.cpp, FragmentBoxes.cpp, GlossyLines.cpp, HelicalLines.cpp, InterpolatedVectorDerivative.cpp, Interpolation.cpp, MonochromeSurface.cpp, PolychromeSurface.cpp, Sphere.cpp, TransparentColoredSurface.cpp, and TransparentSurface.cpp.
