Fiber::ElementIterator< T > Class Template Reference

An iterator which allows to access each component element type of an array of vectors, or a vector of arrays. More...

#include <Iterator.hpp>

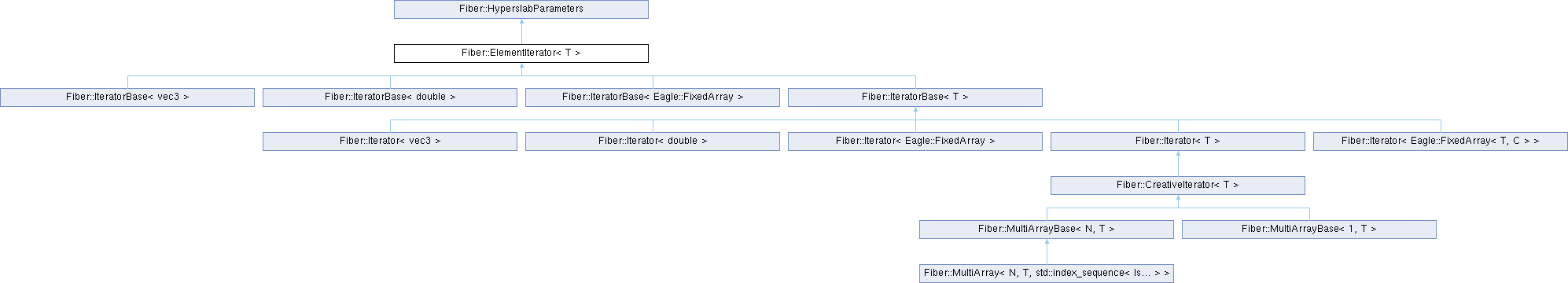

Inheritance diagram for Fiber::ElementIterator< T >:

Public Types
typedef Eagle::MetaInfo< T >	info_t
typedef info_t::element_t	element_info_t

Public Member Functions
	ElementIterator (index_t Length, T *Data, index_t Stride, index_t Offset)
	Construct an element iterator.
	ElementIterator (const ElementIterator &It)
	Copy Constructor.
	ElementIterator (const HyperslabParameters &It, T *newData)
	Constructor compatible iterator with new data.
	ElementIterator (index_t i, const ElementIterator &It, const Add &)
	Addition Constructor.
void	SetNewData (T *newData, index_t newLength) throw ()
	Change the stored data chunk to a new location and length.
T *	ptr (int c=0) const
	Return pointer to data, which is good for C interface, but otherwise, avoid that.
T &	getElement (index_t i, int c) const
	Element access (no range check!).
	operator bool () const
	Implicit conversion to boolean: Check whether this is a valid pointer.
Public Member Functions inherited from Fiber::HyperslabParameters
	HyperslabParameters (index_t Length, index_t Stride, index_t Offset) throw ()
	Simple constructorm sets shift and cropped members to zero.
	HyperslabParameters (const HyperslabParameters &H) throw ()
	Copy constructor.
	HyperslabParameters (index_t i, const HyperslabParameters &H) throw ()
	Pointer addition constructor (sets the shift member).
index_t	getLength () const throw ()
	Return the number of elements which can be accessed through this ElementIterator.
index_t	getOffset () const throw ()
index_t	getStride () const throw ()
index_t	getShift () const throw ()
index_t	getCropped () const throw ()
bool	isSeparatedCompound () const throw ()
	Tell if the iterator refers to a data set which is built from arrays of structure members, i.e.
index_t	multiplicity () const throw ()
	Return number of elements which form an entity.
index_t	maxcount () const throw ()
	Return the number of steps which can be traversed through this ElementIterator.
index_t	count () const throw ()
	Return the number of steps which can be traversed through this ElementIterator.
void	setCount (index_t size) throw ()
	Set the maximally allowed count, i.e.
index_t	getIndex (index_t i, int c) const throw ()
	Given a major and a minor index, compute the overall index in the dataset according to.
HyperslabParameters &	getHyperslabParameters () throw ()
const HyperslabParameters &	getHyperslabParameters () const throw ()

Protected Member Functions
void	incPtr (index_t what)

Protected Attributes
index_t	length
	The length (number of elements) of the data array.
index_t	stride
index_t	offset
index_t	shift
index_t	cropped
Protected Attributes inherited from Fiber::HyperslabParameters
index_t	length
	The length (number of elements) of the data array.
index_t	stride
index_t	offset
index_t	shift
index_t	cropped

Detailed Description

template<class T>
class Fiber::ElementIterator< T >

An iterator which allows to access each component element type of an array of vectors, or a vector of arrays.

The provided indexing scheme is two-dimensional, for the array index first and then the component.

The iterator works both for arrays of vectors as well as for vectors of arrays. However, manual setup of the right parameters is tedious. The derived Iterator classes provide a more convenient interface to do so.

Note

No range check is performed here! The caller must ensure that the numerical values of the array and component index are valid.

Member Function Documentation

getElement()

template<class T >

T & Fiber::ElementIterator< T >::getElement ( index_t  i, int  c  ) const

inline

Element access (no range check!).

Each element of the data array is accessed according to

data[ (shift + i)*stride + c*offset]

This indexing scheme works both for arrays of vectors and vectors of arrays.

Parameters

i	the array index
c	the component index

References Fiber::HyperslabParameters::count(), Fiber::HyperslabParameters::getIndex(), and Fiber::HyperslabParameters::getLength().

Referenced by Fiber::Iterator< T >::getValue(), Fiber::MultiArrayBase< 1, T >::operator[](), Fiber::Iterator< T >::operator[](), Fiber::MultiArrayBase< 1, T >::operator[](), and Fiber::Iterator< T >::set().
