Wizt::MSDeferredRenderObject::MultiSampleDeferredRenderer Struct Reference

A deferred render object which allocates a multisampling depth and color texture which can be used in an implementation of renderFramebuffer() as textures: More...

#include <ocean/GLvish/MSDeferredRenderObject.hpp>

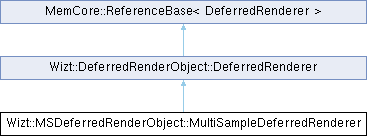

Inheritance diagram for Wizt::MSDeferredRenderObject::MultiSampleDeferredRenderer:

Public Member Functions
void	renderFramebufferDefault (const DeferredRenderObject *, VGLRenderContext &Context)
	An example implementation on how to render a framebuffer.
Public Member Functions inherited from Wizt::DeferredRenderObject::DeferredRenderer
virtual void	renderFramebuffer (const DeferredRenderObject *, VGLRenderContext &Context)=0
	Implementation of rendering the framebuffer, actual code would make use of a texture and some shader program which is implemented in a child class.
Public Member Functions inherited from MemCore::ReferenceBase< DeferredRenderer >
auto	getObjectCountID () const noexcept
	Get a unique ID for this object in the given domain.
bool	isIdentical (const WeakPtr< DeferredRenderer, DeferredRenderer > &PossibleSelf) const noexcept
	Check if this object is identical to the one used by the given pointer.
void	mkAutoDestructive ()
	Marks this object as being automatically destructed, e.g.
refcount_t	refcount () const noexcept
	The strong reference count.
	ReferenceBase (DeferredRenderer *that) noexcept
	Constructor, initializes reference counter to zero.
const auto &	self () const
	Return weak pointer to the object self.
refcount_t	wrefcount () const noexcept
	The weak reference count.

Additional Inherited Members
Public Types inherited from MemCore::ReferenceBase< DeferredRenderer >
using	reference_domain_t = DeferredRenderer
	The type of the base class.
using	SelfPtr_t = WeakPtr< DeferredRenderer, DeferredRenderer >
	Type for a pointer to this object itself.
Static Public Member Functions inherited from Wizt::DeferredRenderObject::DeferredRenderer
static void	glRenderFullScreen (double Zvalue=1.0)
	Convenience function to render a texture to the screen.
Protected Member Functions inherited from MemCore::ReferenceBase< DeferredRenderer >
virtual void	extremeUnction ()
	A virtual function that will be called just before the object is destroyed.
ReferenceBase &	operator= (const ReferenceBase &R)
	Protected assignment operator (should not be called).
void	suicide ()
	Delete this.
virtual	~ReferenceBase ()
	Virtual destructor.

Detailed Description

A deferred render object which allocates a multisampling depth and color texture which can be used in an implementation of renderFramebuffer() as textures:

RefPtr<GLProgram> myProgram;
        myProgram->setUniformTexture("SceneColor", *myColorTexture);
        myProgram->setUniformTexture("SceneDepth", *myDepthTexture);

Doing such requires samplers defined in the GLSL shader code in the following form:

uniform sampler2DMS SceneColor;
uniform sampler2DMS SceneDepth;

The data in these textures is then accessible in fragment shader code via

ivec2   P = ivec2( gl_FragCoord.xy);

vec4    Color = texelFetch(SceneColor, P, 0 );
float   Depth = texelFetch(SceneDepth, P, 0 ).r;

It is recommended to be used as base class for multisampling deferred render objects derived from class MSDeferredRenderObject.
