Wizt::Framebuffer Class Reference

Class interface to the OpenGL Framebuffer API. More...

#include <ocean/GLvish/Framebuffer.hpp>

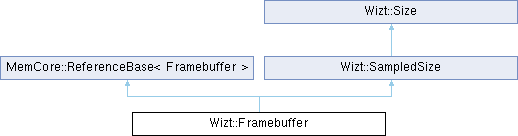

Inheritance diagram for Wizt::Framebuffer:

Classes
class	Bind
	Exception-safe framebuffer binding with framebuffer stack support. More...

Public Member Functions
bool	attachColorBuffer (const MemCore::RefPtr< Renderbuffer > &Rb, int i=0)
	Render to render buffer pointer.
bool	attachColorBuffer (const Renderbuffer &Rb, int i=0)
	Render to render buffer.
void	attachColorTexture (GLTexture2DBase &image, GLint level=0, int BufferNumber=0)
	Render colors to 2D texture.
void	attachDepthTexture (GLTexture2DBase &image)
	Render depth into 2D texture.
bool	bind () const
	Select this framebuffer for reading and drawing.
bool	bind_for_drawing () const
	Select this framebuffer for subsequent draw operations.
bool	bind_for_reading () const
	Select this framebuffer for read operations from attached Renderbuffers().
bool	BlitFromSource (const MemCore::RefPtr< Framebuffer > &Source, GLint srcX0, GLint srcY0, GLint srcX1, GLint srcY1, GLint dstX0, GLint dstY0, GLint dstX1, GLint dstY1, GLbitfield mask, GLenum filter) const
	Copy framebuffer content from a source framebuffer to another one.
bool	BlitToScreen (GLint srcX0, GLint srcY0, GLint srcX1, GLint srcY1, GLint dstX0, GLint dstY0, GLint dstX1, GLint dstY1, GLbitfield mask, GLenum filter) const
	Copy framebuffer content to the screen.
MemCore::RefPtr< Renderbuffer >	buffer (GLenum internalformat) const
	Return a compatible renderbuffer object.
	Framebuffer (const SampledSize &Sz=SampledSize())
	Call GenFramebuffer(1).
GLuint	id () const
	Return the OpenGL ID.
MemCore::RefPtr< Renderbuffer >	mkRenderbuffer (GLenum internalformat) const
	Return a compatible renderbuffer object.
	~Framebuffer ()
	Destroy the Framebuffer ID (requires valid OpenGL context).
Public Member Functions inherited from MemCore::ReferenceBase< Framebuffer >
auto	getObjectCountID () const noexcept
	Get a unique ID for this object in the given domain.
bool	isIdentical (const WeakPtr< Framebuffer, Framebuffer > &PossibleSelf) const noexcept
	Check if this object is identical to the one used by the given pointer.
void	mkAutoDestructive ()
	Marks this object as being automatically destructed, e.g.
refcount_t	refcount () const noexcept
	The strong reference count.
	ReferenceBase (Framebuffer *that) noexcept
	Constructor, initializes reference counter to zero.
const auto &	self () const
	Return weak pointer to the object self.
refcount_t	wrefcount () const noexcept
	The weak reference count.

Static Public Member Functions
static void	unbind ()
	Select the screen for read and draw operations.
static void	unbind_for_drawing ()
	Select the screen for drawing operations.
static void	unbind_for_reading ()
	Select the screen for read operations.

Additional Inherited Members
Public Types inherited from MemCore::ReferenceBase< Framebuffer >
using	reference_domain_t
	The type of the base class.
using	SelfPtr_t
	Type for a pointer to this object itself.
Public Attributes inherited from Wizt::SampledSize
unsigned	samples
	Multisampling property.
Protected Member Functions inherited from MemCore::ReferenceBase< Framebuffer >
virtual void	extremeUnction ()
	A virtual function that will be called just before the object is destroyed.
ReferenceBase &	operator= (const ReferenceBase &R)
	Protected assignment operator (should not be called).
void	suicide ()
	Delete this.
virtual	~ReferenceBase ()
	Virtual destructor.

Detailed Description

Class interface to the OpenGL Framebuffer API.

http://oss.sgi.com/projects/ogl-sample/registry/EXT/framebuffer_object.txt

Application-created framebuffer objects (i.e., those with a non-zero
name) differ from the default window-system-provided framebuffer in
a few important ways.  First and foremost, unlike the
window-system-provided framebuffer, application-created-framebuffers
have modifiable attachment points for each logical buffer in the
framebuffer.  Framebuffer-attachable images can be attached to and
detached from these attachment points, which are described further
in section 4.4.2.  Also, the size and format of the images attached
to application-created framebuffers are controlled entirely within
the GL interface, and are not affected by window-system events, such
as pixel format selection, window resizes, and display mode changes.

Additionally, when rendering to or reading from an application
created-framebuffer object,

      - The pixel ownership test always succeeds.  In other words,
        application-created framebuffer objects own all of their
        pixels.

      - There are no visible color buffer bitplanes.  This means
        there is no color buffer corresponding to the back, front,
        left, or right color bitplanes.

      - The only color buffer bitplanes are the ones defined by the
        framebuffer attachment points named COLOR_ATTACHMENT0_EXT
        through COLOR_ATTACHMENTn_EXT.

      - The only depth buffer bitplanes are the ones defined by the
        framebuffer attachment point DEPTH_ATTACHMENT_EXT.

      - The only stencil buffer bitplanes are the ones defined by
        the framebuffer attachment point STENCIL_ATTACHMENT_EXT.

      - There is no multisample buffer so the value of the
        implementation-dependent state variables SAMPLES and
        SAMPLE_BUFFERS are both 0

      - There are no accum buffer bitplanes, so the value of the
        implementation-dependent state variables ACCUM_RED_BITS,
        ACCUM_GREEN_BITS, ACCUM_BLUE_BITS, and ACCUM_ALPHA_BITS, are
        all zero.

      - There are no AUX buffer bitplanes, so the value of the
        implementation-dependent state variable AUX_BUFFERS is zero.

Constructor & Destructor Documentation

Framebuffer()

Wizt::Framebuffer::Framebuffer

(

const SampledSize &

Sz = SampledSize()

)

Call GenFramebuffer(1).

Constructor and all member functions MUST be called with a valid OpenGL context.

Member Function Documentation

attachColorBuffer()

bool Wizt::Framebuffer::attachColorBuffer ( const MemCore::RefPtr< Renderbuffer > & Rb, int i = 0 )

inline

Render to render buffer pointer.

Deprecated

References attachColorBuffer().

bind()

bool Wizt::Framebuffer::bind

(

)

const

Select this framebuffer for reading and drawing.

Returns

True if all went right, false in case of any errors.

bind_for_reading()

bool Wizt::Framebuffer::bind_for_reading

(

)

const

Select this framebuffer for read operations from attached Renderbuffers().

Note that multisample renderbuffers cannot be read (if they are not bound to the screen) and need to be copied to a non-multisample framebuffer first.

Calls glBindFramebufferEXT(GL_READ_FRAMEBUFFER_EXT,);

Referenced by BlitToScreen().

BlitFromSource()

bool Wizt::Framebuffer::BlitFromSource	(	const MemCore::RefPtr< Framebuffer > &	Source,
		GLint	srcX0,
		GLint	srcY0,
		GLint	srcX1,
		GLint	srcY1,
		GLint	dstX0,
		GLint	dstY0,
		GLint	dstX1,
		GLint	dstY1,
		GLbitfield	mask,
		GLenum	filter ) const

Copy framebuffer content from a source framebuffer to another one.

This operation affects the framebuffer bindings. http://www.opengl.org/registry/specs/EXT/framebuffer_blit.txt

References bind_for_drawing(), and unbind_for_reading().

buffer()

MemCore::RefPtr< Renderbuffer > Wizt::Framebuffer::buffer ( GLenum internalformat ) const

inline

Return a compatible renderbuffer object.

This only works if there was at least one Renderbuffer already attached to this Framebuffer or the Framebuffer was already constructed with appropriate size information.

References mkRenderbuffer().

id()

GLuint Wizt::Framebuffer::id ( ) const

inline

Return the OpenGL ID.

This is usually not required since this class should provide a complete API.

mkRenderbuffer()

MemCore::RefPtr< Renderbuffer > Wizt::Framebuffer::mkRenderbuffer

(

GLenum

internalformat

)

const

Return a compatible renderbuffer object.

This only works if there was at least one Renderbuffer already attached to this Framebuffer or the Framebuffer was already constructed with appropriate size information.

Referenced by buffer().
