Creator class for objects that require fields as input. More...

#include <FieldInputCreator.hpp>

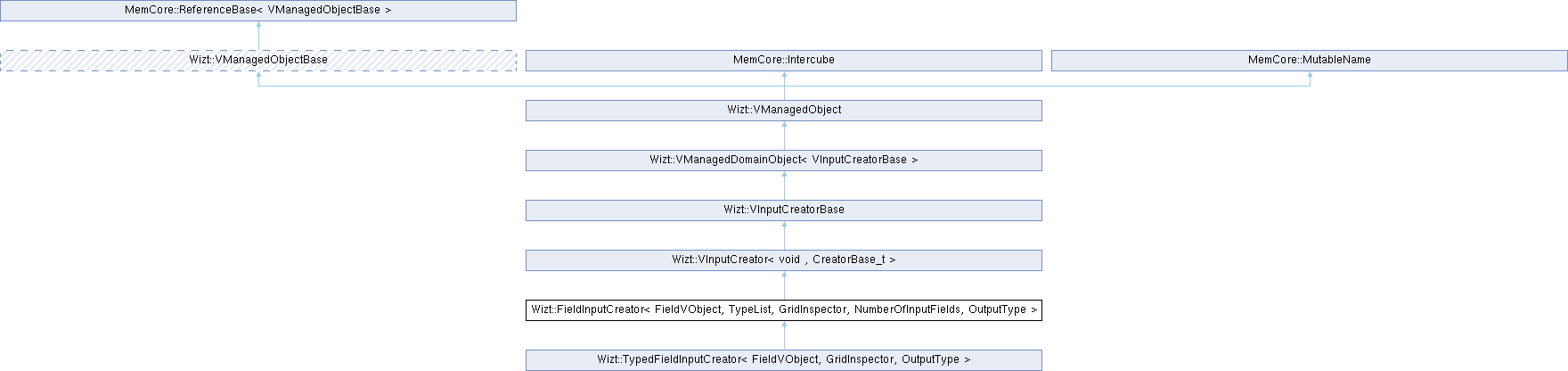

Inheritance diagram for Wizt::FieldInputCreator< FieldVObject, TypeList, GridInspector, NumberOfInputFields, OutputType >:

Classes
struct	MakeString

Public Types
typedef FieldInputCreatorBaseTrait< FieldVObject, OutputType >::Creator_t	FieldInputCreatorBase_t

Public Types inherited from Wizt::VManagedDomainObject< VInputCreatorBase >
typedef What	Domain_t

Public Types inherited from MemCore::ReferenceBase< VManagedObjectBase >
typedef Object	reference_domain_t

typedef WeakPtr< Object, Object >	SelfPtr_t

Public Member Functions
	FieldInputCreator (const string &name, int quality, const RefPtr< VCreationPreferences > &Prep=NullPtr())
	Constructor.

	FieldInputCreator (const VCreatorProperties &CreatorProperties, int quality, const RefPtr< VCreationPreferences > &Prep=NullPtr())
	Constructor.

template<unsigned ID>
	FieldInputCreator (const VCreatorProperty< ID > &CreatorProperties, int quality, const RefPtr< VCreationPreferences > &Prep=NullPtr())
	Constructor.

VAcceptInfoList_t	accept (const RefPtr< VObject > &vobj) const override
	Object acceptance function.

Public Member Functions inherited from Wizt::VInputCreator< class InputType, class VInputCreatorClass >
	VInputCreator (const string &name, int ObjectQuality, const RefPtr< VCreationPreferences > &prop=NullPtr(), const char *const InputCreatorReleaseIdentifier=VISH_INPUT_CREATOR_RELEASE_IDENTIFIER)

Public Member Functions inherited from Wizt::VInputCreatorBase
RefPtr< VCreationPreferences >	CreationPreferences (const RefPtr< VCreationPreferences > &AdditionalPreferences=nullptr) const

	VInputCreatorBase (const string &name, int prior, const RefPtr< VCreationPreferences > &prop, const char *vish_creator_release_identifier)

Public Member Functions inherited from Wizt::VManagedDomainObject< VInputCreatorBase >
const type_info &	getDomainType () const override

void	remove ()

	VManagedDomainObject (const string &name, int priority=DEFAULT_PRIORITY)

Public Member Functions inherited from Wizt::VManagedObject
string	getLoadModule () const

void	insert (const string &s, int priority=DEFAULT_PRIORITY)

void	remove ()

void	setPriority (int priority)

	VManagedObject (const string &name, int priority=DEFAULT_PRIORITY)

Public Member Functions inherited from MemCore::ReferenceBase< VManagedObjectBase >
auto	getObjectCountID () const noexcept

bool	isIdentical (const WeakPtr< Object, Object > &PossibleSelf) const noexcept

void	mkAutoDestructive ()

refcount_t	refcount () const noexcept

	ReferenceBase (Object *that) noexcept

const auto &	self () const

refcount_t	wrefcount () const noexcept

Public Member Functions inherited from MemCore::Intercube
void	addInterface (const RefPtr< InterfaceBase > &I) const

void	addInterfaceData (const Data &D)

void	addInterfaceData (const Data &D)

void	clearInterfaces ()

bool	const_iterateInterfaces (const RefPtr< InterfaceIterationParameter > &IIP) const

virtual RefPtr< InterfaceBase >	createInterface (const type_info &) const

RefPtr< InterfaceBase >	findInterface (const type_info &t) const

RefPtr< InterfaceBase >	getInterface (const type_info &t)

std::string	getInterfaceNames (const char delim=';') const

bool	gotNewInterfaceData (const Data &D)

bool	gotNewInterfaceData (mutex &M, const Data &D)

bool	gotNewInterfaceData (mutex &M, const Data &D)

bool	gotNewInterfaceData (mutex &M, const Data &D, const Selector &S)

bool	gotNewInterfaceData (mutex &M, const Data &D, const Selector *S)

bool	hasChangedInterfaceData (const Data &D) const

bool	hasChangedInterfaceData (const Data &D) const

bool	hasChangedInterfaceData (const Data &D, const Selector &) const

bool	hasChangedInterfaceData (const Data &D, const Selector *) const

bool	hasInterface (const type_info &t) const

bool	iterateInterfaces (const RefPtr< InterfaceIterationParameter > &IIP)

void	printInterfaces () const

void	registerInterface (const type_info &t)

void	removeInterface ()

void	removeInterfaceBase (const type_info &InterfaceBaseID)

Public Member Functions inherited from MemCore::MutableName
void	addNameChangeNotifier (const WeakPtr< Notifier > &)

std::string	BaseName (const char Separator) const

const std::string &	getName () const

	MutableName (const std::string &theName)

const std::string &	Name () const

void	rename (const std::string &newName)

void	setName (const std::string &newName)

Static Public Member Functions
static string	TypeString ()

Static Public Member Functions inherited from Wizt::VManagedDomainObject< VInputCreatorBase >
static bool	remove (const std::string &s)

static RefPtr< VManagedObject >	find (const string &s)

static int	iterate (VManagedObjectIterator_t VIt, int p_start=INT_MIN, int p_end=INT_MAX)

static int	size ()

static int	traverse (VManagedObjectIterator &VIt, int p_start=INT_MIN, int p_end=INT_MAX)

Static Public Member Functions inherited from Wizt::VManagedObject
static int	count ()

static VManagedObjectPtr	find (const type_info &, const std::string &s)

static bool	InitDomain (const type_info &)

static int	iterateModules (ModuleIterator &VIM)

static int	size (const type_info &)

static int	traverse (const type_info &, VManagedObjectIterator &VIt, int p_start, int p_end)

static void	UnloadVModule (const string &what, VRemoveItem &RI)

Static Public Member Functions inherited from MemCore::MutableName
static std::string	BaseName (const std::string &theName, const char Separator)

Additional Inherited Members
Static Public Attributes inherited from Wizt::VManagedObject
static string	CurrentLoadModule

Protected Member Functions inherited from MemCore::ReferenceBase< VManagedObjectBase >
virtual void	extremeUnction ()

ReferenceBase &	operator= (const ReferenceBase &R)

void	suicide ()

Detailed Description

template<class FieldVObject, class TypeList = LIST<META::NIL>, class GridInspector = typename FieldVObject::GridInspector, int NumberOfInputFields = FieldVObject::NumberOfInputFields, class OutputType = void>
struct Wizt::FieldInputCreator< FieldVObject, TypeList, GridInspector, NumberOfInputFields, OutputType >

Creator class for objects that require fields as input.

It operates on existing fields only given explicitly as template argument. This method is not recommended, a better way way is to use a TypedFieldInputCreator which constraints the input type based on a typedef as given in the class itself.

Parameters

TypeList

Optionally specify the types on that input fields must provide. Default is META::NIL, which means all possible field are allowed as input. This probably not what dIyou want. Types here must be specified in the form of a META::LIST.

static Ref<FieldInputCreator<VolumeRender> >                           myCreator("Display/GenericVolumeRender");
static Ref<FieldInputCreator<VolumeRender, LIST<double, LIST<float> > > >   myCreator("Display/FloatingPtVolumeRender");
static Ref<FieldInputCreator<VolumeRender, META::NativeTypeList> >          myCreator("Display/NativeTypeVolumeRender");

NumberOfInputFields

An integer telling how many field this object wants upon creation. This is expected to be an enum in the given FieldVObject, but can also set explicitly for each FieldInputCreator.

static Ref<FieldInputCreator< VolumeRender, META::NIL, 1> myCreator("Display/SimpleVolumeRender");

static Ref<FieldInputCreator<DualVolumeRender, META::NIL, 2> myCreator("Display/DualVolumeRender");

, META::NativeTypeList, META::IntegerTypeList

Constructor & Destructor Documentation

◆ FieldInputCreator() [1/3]

template<class FieldVObject , class TypeList = LIST<META::NIL>, class GridInspector = typename FieldVObject::GridInspector, int NumberOfInputFields = FieldVObject::NumberOfInputFields, class OutputType = void>

Wizt::FieldInputCreator< FieldVObject, TypeList, GridInspector, NumberOfInputFields, OutputType >::FieldInputCreator	(	const string &	name,
		int	quality,
		const RefPtr< VCreationPreferences > &	Prep = `NullPtr()`
	)

inline

Constructor.

Parameters

quality The object's matureness, according to ObjectQuality

◆ FieldInputCreator() [2/3]

template<class FieldVObject , class TypeList = LIST<META::NIL>, class GridInspector = typename FieldVObject::GridInspector, int NumberOfInputFields = FieldVObject::NumberOfInputFields, class OutputType = void>

Wizt::FieldInputCreator< FieldVObject, TypeList, GridInspector, NumberOfInputFields, OutputType >::FieldInputCreator	(	const VCreatorProperties &	CreatorProperties,
		int	quality,
		const RefPtr< VCreationPreferences > &	Prep = `NullPtr()`
	)

inline

Constructor.

Parameters

CreatorProperties	The properties of this creator, it is recommendable to make use of namespace Panthalassia or ProtoOcean.
quality	The object's matureness, according to ObjectQuality

◆ FieldInputCreator() [3/3]

template<class FieldVObject , class TypeList = LIST<META::NIL>, class GridInspector = typename FieldVObject::GridInspector, int NumberOfInputFields = FieldVObject::NumberOfInputFields, class OutputType = void>

template<unsigned ID>

Wizt::FieldInputCreator< FieldVObject, TypeList, GridInspector, NumberOfInputFields, OutputType >::FieldInputCreator	(	const VCreatorProperty< ID > &	CreatorProperties,
		int	quality,
		const RefPtr< VCreationPreferences > &	Prep = `NullPtr()`
	)

inline

Constructor.

Parameters

CreatorProperties	The properties of this creator, it is recommendable to make use of namespace Panthalassia or ProtoOcean.
quality	The object's matureness, according to ObjectQuality

Allows to create objects via Panthalassia syntax:

static Ref<FieldInputCreator>
        MyScalarValueCreator(
                        Category("Display")
                + Identifier("ScalarValues")
                + Help("Display the values of a scalar field at the location of each vertex")
                , ObjectQuality::MATURE);

Member Function Documentation

◆ accept()

template<class FieldVObject , class TypeList = LIST<META::NIL>, class GridInspector = typename FieldVObject::GridInspector, int NumberOfInputFields = FieldVObject::NumberOfInputFields, class OutputType = void>

VAcceptInfoList_t Wizt::FieldInputCreator< FieldVObject, TypeList, GridInspector, NumberOfInputFields, OutputType >::accept ( const RefPtr< VObject > & vobj ) const

inlineoverride

Object acceptance function.

Inspects whether the given VObject provides a Fiber::Field that is compatible to the specified TypeList .

References Wizt::FieldInputCreator< FieldVObject, TypeList, GridInspector, NumberOfInputFields, OutputType >::accept(), Fiber::Iterator< T >::getValue(), Fiber::GridSelector::hasProperty(), and MemCore::MutableName::Name().

Referenced by Wizt::FieldInputCreator< FieldVObject, TypeList, GridInspector, NumberOfInputFields, OutputType >::accept().
