Wizt::VCreatorPropertyBase Struct Reference

Base class for VCreator property elements. More...

#include <ocean/plankton/VCreatorProperties.hpp>

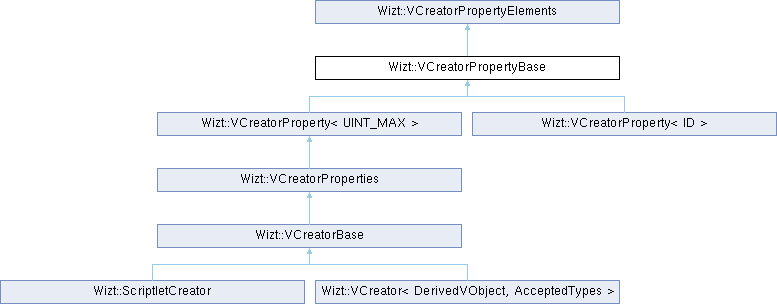

Inheritance diagram for Wizt::VCreatorPropertyBase:

Public Member Functions
string &	Application ()
	Application domain.
const string &	Application () const
	Application domain.
string &	Arguments ()
	Textual description of acceptable arguments, see POLYMORPHY.
const string &	Arguments () const
	Textual description of acceptable arguments, see POLYMORPHY.
void	assign (const VCreatorPropertyBase &l)
	Assignment - copy only those strings that are non-empty, otherwise status quo is kept.
string	Author () const
	authorship information, looked up from authors.txt
string &	AuthorKey ()
	authorship information
const string &	AuthorKey () const
	author key
string &	Category ()
	Group of creators.
const string &	Category () const
	Group of creators.
string &	Description ()
	Descriptive name, UTF8 characters allowed.
const string &	Description () const
	Descriptive name, UTF8 characters allowed.
string &	helpurl ()
	relative URL for integrated help for this creator
const string &	helpurl () const
	relative URL for integrated help for this creator
string &	Identifier ()
	Identifier within this group.
const string &	Identifier () const
	Identifier within this group.
string	keyname (const char separator[]="/") const
	globally unique name
std::string &	operator() (unsigned i)
	Retrieve property i, writeable.
const string &	operator() (unsigned i) const
	Retrieve property i, readonly.
string &	OperatorName ()
	Ideally a single UTF8 character, for operators.
const string &	OperatorName () const
	Ideally a single UTF8 character, for operators.
string &	shorthelp ()
	short help string, for tooltip descriptions
const string &	shorthelp () const
	short help string, for tooltip descriptions
string &	SourceFile ()
	Source code file.
const string &	SourceFile () const
	Source code file.
string &	url ()
	Weburl for further info about this object.
const string &	url () const
	Weburl for further info about this object.

Protected Types
enum	{ NumberOfProperties = VCreatorPropertyElements::MAX_PROPERTY }

Protected Attributes
std::string	txt [NumberOfProperties]
	A textual description for each property.

Additional Inherited Members
Public Types inherited from Wizt::VCreatorPropertyElements
enum	{   CATEGORY , TEXTIDENTIFIER , POLYMORPHY , DESCRIPTION ,   OPERATORNAME , OPERATORFONT , SHORTHELP , AUTHOR ,   HELPURL , URL , APPLICATION , APPLICATION_DOMAIN = APPLICATION ,   SOURCE_FILE , COMPILATION_DATE , RESERVED_1 , RESERVED_2 ,   RESERVED_3 , RESERVED_4 , MAX_PROPERTY , APPLICATION_SEPARATOR = ';' }

Detailed Description

Base class for VCreator property elements.

See also

Panthalassa syntax for object construction.

Member Enumeration Documentation

anonymous enum

anonymous enum

protected

Enumerator
NumberOfProperties	Maximal number of properties.
