Wizt::qVPlanktonViewer Class Reference

A Vish object representing a QT rendering of the underlying Object Pool structure. More...

#include <qVPlanktonViewer.hpp>

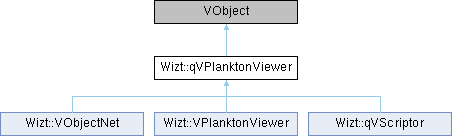

Inheritance diagram for Wizt::qVPlanktonViewer:

Classes
struct	InputType

Public Member Functions
void	addToTab (QTabWidget &theContainerWidget, const QString &Name)
	Add this viewer to the specific QTabWidget and register it for removal during destruction.
virtual string	qname ()=0
	Override this function providing the name how it should show up in the PlanktonViewer menu.
	qVPlanktonViewer (const string &name, int p, const RefPtr< VCreationPreferences > &VP)
virtual QWidget *	qwidget ()=0
	Override this function providing the actual QT widget.
void	setCurrent () const

Public Attributes
QPointer< QTabWidget >	myContainerWidget
VPolyOutput< InputType, VMainWindow >	myPlanktonEater
	The connection type to the VMainWindow.
QPointer< QWidget >	myTabContent

Detailed Description

A Vish object representing a QT rendering of the underlying Object Pool structure.

qVish needs to implement two virtual functions:

virtual QWidget*qwidget();
virtual string qname();

Todo:

Equip this object type with an input that allows to trigger re-rendering of the VObjectPool structure.

Member Function Documentation

qname()

virtual string Wizt::qVPlanktonViewer::qname ( )

pure virtual

Override this function providing the name how it should show up in the PlanktonViewer menu.

Implemented in Wizt::VPlanktonViewer, Wizt::VObjectNet, and Wizt::qVScriptor.

qwidget()

virtual QWidget * Wizt::qVPlanktonViewer::qwidget ( )

pure virtual

Override this function providing the actual QT widget.

Implemented in Wizt::VPlanktonViewer, Wizt::VObjectNet, and Wizt::qVScriptor.

---

The documentation for this class was generated from the following files:

• qVPlanktonViewer.hpp
• qVPlanktonViewer.cpp
