The toplevel QT window. More...

#include <qVMainWindow.hpp>

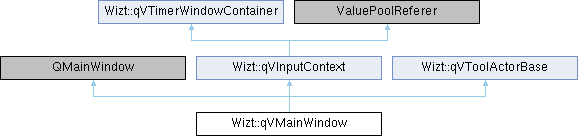

Inheritance diagram for Wizt::qVMainWindow:

Classes
struct	QWarnInfo

Public Types
typedef map< string, QPointer< QToolBar > >	toolBar_t

Public Types inherited from Wizt::qVInputContext
enum	DataProcessingAction { Unknown , StartProcessing , PreProcessing , StartSecondPass , StartThirdPass , Update , PostProcessing , FinishProcessing , AppDefined = 1024 , FileNotFoundError = -10 , InconsistencyError = -11 }
	Values for notifyDataProcessing() call. More...

Public Member Functions
void	addViewerManagement (const RefPtr< Viewer > &)

void	hideObjectSimpler () const

bool	isExiting () const

void	showObjectSimpler () const

void	updateViewerManagement (const RefPtr< Viewer > &theViewer, const QString &AdditionalTooltipInfo) const

Public Member Functions inherited from Wizt::qVInputContext
const WeakPtr< qVAqua > &	getAqua () const

int	getMinimumQuality () const
	Minimal quality that a VCreator must provide to be visible.

virtual void	notifyChange (const VInputBase &theInput, const string &ChangeContextInfo={})
	To perform statistics, for instance, on which parameters are changed via the GUI.

Public Member Functions inherited from Wizt::qVTimerWindowContainer
void	hideTimeWindow ()

bool	setTimeWindow (qVTimerWindow *TimeWindow)

void	showTimeWindow ()

Static Public Member Functions
static QString	getTitleString ()

static ModuleLoadErrorBehavior	HandleModuleLoadError (const std::string &ErrorString, const std::string &ModuleName, int32_t SystemErrorCode)

static const RefPtr< VCreationPreferences > &	MetaViewerPrefs ()
	Creation preferences for choosing the right Meta Viewer.

Public Attributes
double	ElapsedRenderTime

QPointer< QMenu >	File

QPointer< QMenu >	Help

map< string, double >	LastRenderTime

QPointer< QSplitter >	MainSplitter

QPointer< QStackedWidget >	MainStack

std::unordered_map< std::string, QPointer< QMenu > >	myCustomMenus

QPointer< GPUMemoryManager >	myGPUMemoryManager

QPointer< HelpWindow >	myHelpWindow

RefPtr< VParameter >	myMetaViewerParam

QPointer< qVObjectSimpler >	myObjectSimpler

QPointer< QMenu >	Options

QPointer< QSplitter >	PoolSplitter

bool	ProgressIsCancelled = false

QPointer< QProgressBar >	RAM

QPointer< QAction >	ReloadingAction

QPointer< QPushButton >	RenderActivity

QTimer	RenderTimer

QPointer< QProgressBar >	StatusProgress

QPointer< qVThemeButton >	Stop

bool	StopCurrentProgress = false

qVHeartBeat	theBeat

toolBar_t	toolBar

Public Attributes inherited from Wizt::qVInputContext
std::function< bool()>	allowApplicationClose

QString	qVParameterSettingsFilename
	Filename for local parameters.

Public Attributes inherited from Wizt::qVTimerWindowContainer
QPointer< QSplitter >	TimeViewerSplitter

QPointer< qVTimerWindow >	TimeWindow
	The Qt Window providing time-dependent parameterization of values.

Static Public Attributes
static QPointer< qVMainWindow >	theqVMainWindow = 0

static const char const const const	TitleString = "The Vish Visualization Shell "

static const char const const *const	VishApiVersion = VISH_APISTRING

static const char const const	VishCompilerVersion = VISH_COMPILER_VERSION

static const char *const	VishConfigVersion = VISH_CONFIG_VERSION

Value Pool Management
using	CreationOptions = MainWindowCreationOptions

QSettings	settings
	A Qt settings object.

VMainWindow &	ControlObject

std::deque< string >	BusyQue

QPointer< QAction >	HelpAction

QAction *	recentFileActs [MaxRecentFiles]

QMenu *	recentFilesMenu

std::list< RefPtr< qVToolBase > >	qVTools

QPointer< QTextBrowser >	About

QPointer< QTextBrowser >	License

QPointer< QTextBrowser >	ExternalSoftware

QPointer< QAction >	LicenseAction
	The action from the Help Menu opening the license window.

QPointer< QFrame >	VerbosityCatcher

QString	LastWarningText

std::list< QString >	NeverWarningText

std::list< QWarnInfo >	WarningQueue

std::set< QString >	IgnoredWarnings

list< string >	InitialLoadFileNames

int	RegisteredReadySignals = 0

static const constexpr unsigned	MaxRecentFiles = 16
	A menu containg a list of recent opened files xxx.

class	VMainWindow

RefPtr< ValuePoolProvider >	getActiveValuePoolProvider () const override
	Procedural Interface to the request the current value pool.

void	setCurrentObject (const WeakPtr< VObject > &vobj) override
	Allows to set a specific object as the "current" one which will receive all attention from the GUI.

WeakPtr< VObject >	getCurrentObject () const override

const QPointer< qVObjectPool > &	pool () const
	Return widget of object controls.

qVTimerWindow *	timer ()
	Return widget of time-dependent controls.

qViewerFrame *	MyViewerFrame () const

	qVMainWindow (const VOutput< double > &oFPS, VMainWindow &Controller, const CreationOptions &CO, const ImporterSettings &IS, const QString &ParameterFileName, const qVObjectPool::PlanktonControl &PC=qVObjectPool::PlanktonControl(), QWidget *parent=Q_NULLPTR, Qt::WindowFlags flags=Qt::WindowFlags())

void	show ()
	Displays the main window, setting the layout of all widgets according to the stored DOM State.

void	message (const char *fmt,...)

void	busymessage (const char *fmt,...)

void	progress (const string &msg, int Current, int Max)

void	removeModule (const char *what)

void	load_file (const string &filename)
	Load a file.

RefPtr< VObject >	createObject (const string &CreatorName, const string &ObjectName)
	Create and display an object given its creator and naming.

bool	activateHelp (const QStringList &HelpFile, const QStringList &InitPages)

void	enableHelpShortcut (bool EnableIt)

bool	initializeHelp (const QStringList &HelpFiles, const QStringList &InitPages)

QPointer< QToolBar >	getToolBar (const string &category, Qt::ToolBarArea area=Qt::TopToolBarArea)

void	addToolAction (const string &category, const QPixmap &PM, const RefPtr< ToolAction > &Action, const string &tooltip) override
	Add an action object to the toolbar "category".

int	exec (QApplication &)

bool	event (QEvent *e) override

void	showEvent (QShowEvent *event) override

void	emitSingleStep ()

void	emitWarning (const QString &WarningContext, const QString &WarningText, const QString &WarningDetails)

void	notifyImportanceChange (const WeakPtr< VSlot > &) const override

void	notifyDataProcessing (int Action, const string &DataProcessor, const VNutrition::FileList_t &DataItems, const string &ActivityMessage=string()) const override

void	addInitialLoadFile (const string &filename)

bool	showHelpForId (const QString &id, bool ActuallyShowItIfHidden=true)
	Open Help window with ID focussed.

void	showHelp (const QString &url)

static void	setIconPaths (const QDir &VishRoot)

void	openRecentFile ()

void	showToolbar (bool showit=true)

void	openFileDialog ()

void	openManyFilesDialog ()

void	openMultipleFileDialog ()

void	openWritableFileDialog ()

void	openNutriousFileDialog ()

void	saveStateDialog ()

void	appquit ()

void	UpdateProgressStatus (const QString &msg, int Current, int Max)

void	receiveSensorInfo (const QString &)

void	ReadyCallback (const QString &ViewerName, const QString &GL_Vendor, const QString &GL_Renderer, int M, int m)

void	NonViewerReadyCallback ()

void	ViewerStartRender (const QString &ContextName)

void	ViewerEndRender (const QString &ContextName, double secs, double GPUSecs)

void	ViewerRenderUpdate ()

void	ViewerRenderCancel ()

void	announceCurrentValuePoolChange ()
	Announce the change of the currently active value pool.

void	displayFileLoadErrorMessage (QString LoadFileName, QString ErrorDescription, QString FileType)

void	FileLoadSuccess (QString LoadFileName)

void	conditionalQuit ()

void	displayDataProcessing (int Action, const QString &DataProcessor, const QStringList &DataItems, const QString &ActivityMessage)

void	SetProgressStatus (const QString &msg, int Current, int Max)

void	FileLoaded (const QString &Filename)

void	singleStep ()

void	sendWarning (const QString &WarningContext, const QString &WarningText, const QString &WarningDetails)

void	SlotImportanceChanged () const

void	renderCancel ()
	Signal emitted when user wants to cancel a currently still ongoing rendering operation.

void	ActiveValuePoolChanged ()
	A signal emitted when the current value pool is changed.

void	OpenGLReady (const QString &ViewerName, const QString &GL_Vendor, const QString &GL_Renderer, int MajorVersion, int minorVersion)
	Signal that is emitted once OpenGL is ready in a viewer.

void	MainClosed ()
	For runtime plugins that open external windows, connecting to this signal allows to shut down external windows when the main window is closed.

void	doNotifyDataProcessing (int Action, const QString &DataProcessor, const QStringList &DataItems, const QString &ActivityMessage) const

Additional Inherited Members
Protected Member Functions inherited from Wizt::qVInputContext
	qVInputContext (const QString &qVParameterSettingsFilename)

Protected Attributes inherited from Wizt::qVInputContext
int	MinimumQuality
	Minimal quality that a VCreator must provide to be visible.

Detailed Description

The toplevel QT window.

Constructor & Destructor Documentation

◆ qVMainWindow()

qVMainWindow::qVMainWindow	(	const VOutput< double > &	oFPS,
		VMainWindow &	Controller,
		const CreationOptions &	CO,
		const ImporterSettings &	IS,
		const QString &	ParameterFileName,
		const qVObjectPool::PlanktonControl &	PC = `qVObjectPool::PlanktonControl()`,
		QWidget *	parent = `Q_NULLPTR`,
		Qt::WindowFlags	flags = `Qt::WindowFlags()`
	)

TODO TODO TODO

References LicenseAction, MaxRecentFiles, Wizt::qVInputContext::MinimumQuality, pool(), settings, show(), Wizt::ImporterSettings::showImporterMenu(), and Wizt::ImporterSettings::valid().

Member Function Documentation

◆ addToolAction()

void qVMainWindow::addToolAction	(	const string &	category,
		const QPixmap &	PM,
		const RefPtr< ToolAction > &	Action,
		const string &	tooltip
	)

overridevirtual

Add an action object to the toolbar "category".

Parameters

category	The name of the toolbar, as it appears in the main window.
PM	A Qt Pixmap, used as action icon.
Action	An ToolAction object that is executed when the tool button is clicked.
tooltip	An information text which appears when the mouse is moved over the icon.

Implements Wizt::qVToolActorBase.

References Wizt::QToolAction::myAction.

Referenced by show().

◆ announceCurrentValuePoolChange

void qVMainWindow::announceCurrentValuePoolChange ( )

slot

Announce the change of the currently active value pool.

It will emit the ActiveValuePoolChanged() signal.

References ActiveValuePoolChanged().

◆ getCurrentObject()

WeakPtr< VObject > qVMainWindow::getCurrentObject ( ) const

overridevirtual

Implements Wizt::qVInputContext.

◆ notifyDataProcessing()

void qVMainWindow::notifyDataProcessing	(	int	Action,
		const string &	DataProcessor,
		const VNutrition::FileList_t &	DataItems,
		const string &	ActivityMessage = `string()`
	)		const

overridevirtual

Parameters

Action any of DataProcessingAction

Implements Wizt::qVInputContext.

◆ notifyImportanceChange()

void qVMainWindow::notifyImportanceChange ( const WeakPtr< VSlot > & ) const

overridevirtual

Implements Wizt::qVInputContext.

◆ setCurrentObject()

void qVMainWindow::setCurrentObject ( const WeakPtr< VObject > & vobj )

overridevirtual

Allows to set a specific object as the "current" one which will receive all attention from the GUI.

Implements Wizt::qVInputContext.

◆ show()

void qVMainWindow::show ( )

Displays the main window, setting the layout of all widgets according to the stored DOM State.

run the refresher with 30fps

References Wizt::qVHeartBeat::activate(), and addToolAction().

Referenced by qVMainWindow().

Member Data Documentation

◆ settings

QSettings Wizt::qVMainWindow::settings

A Qt settings object.

It saves the application state in a platform-specific manner for restauration at startup.

Referenced by qVMainWindow().

The documentation for this class was generated from the following files:

qVMainWindow.hpp
GPUMemoryManagement.cpp
qVMainWindow.cpp
