The QT gui for an VObject as part of qvish/net. More...

#include <VObjectFrame.hpp>

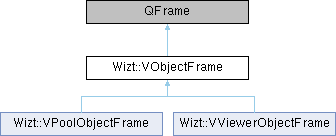

Inheritance diagram for Wizt::VObjectFrame:

Public Types
enum	ColorStateValues { OBJECT_IS_UPDATED , OBJECT_HAS_YOUNGER_INPUTS_AND_NEEDS_UPDATE , OBJECT_IS_CURRENTLY_UPDATING , OBJECT_IS_CURRENTLY_COMPUTING }

Public Slots
void	DecreaseExpertLevel (bool)

void	DeIconize ()

void	doDisplayInPool (bool)

virtual void	HideObject (bool)=0

void	Iconize ()

void	IncreaseExpertLevel (bool)

void	RemoveObject (bool)

void	setSlotUpdateStatusInfo ()

void	showNewSlot (QString SlotName)

void	ShowUserText ()

void	updateSlotVisibility ()

void	UserTextChanged ()

Signals
void	checkNewSlot (QString SlotName)

void	newExpertLevel (int dY, int newY)

void	setExpertLevel (int)

void	setPoolVisibility (bool)

Public Member Functions
bool	addNewSlot (const RefPtr< VSlot > &what)
	If a new slot is added to the object, display the GUI for it in the object form.

int	currentExpertLevel () const

void	DisplayInPool (bool isVisible)

RefPtr< VIcon >	getIcon () const

WeakPtr< VObject >	getObject () const

RefPtr< qVParameter >	getqVParameter (const WeakPtr< VSlot > &theSlot) const

QRect	getqVParameterGeometry (const WeakPtr< VSlot > &theSlot) const

QRect	getVisibleGeometry () const
	Give the geometry of the current visual representation of the object's frame, which can be the geometry of the VObjectFrame or its VIcon, if iconized.

int	NumberOfInvisibleSlots () const

void	setTitleColor ()

void	setViewerOpacity (double V, const ValuePoolPtr &Context)

void	shiftFrame (const QPoint &difference)

void	showAtCurrentViewer ()

void	showAtViewer (const ValuePoolPtr &Context)

void	updateColors ()

	VObjectFrame (const WeakPtr< VObject > &myObject, QWidget *parent, qVInputContext &theInputContext, const WeakPtr< qVShowObjectAction::Actor > &, bool &AutoFold, bool inViewer)

Public Attributes
bool &	AutoFold

enum Wizt::VObjectFrame::ColorStateValues	ColorState

QPoint	NewLocation
	new location as computed by qVDataFlowGraph::computeLocation()

bool	showAllInputs = false

Protected Member Functions
void	closeEvent (QCloseEvent *event) override

void	ExpertLevelChanged (const int &ExpertLevel, const ValuePoolPtr &Context)

void	focusInEvent (QFocusEvent *) override

void	focusOutEvent (QFocusEvent *) override

void	leaveEvent (QEvent *event) override

void	mouseDoubleClickEvent (QMouseEvent *e) override

void	mouseMoveEvent (QMouseEvent *) override

void	mousePressEvent (QMouseEvent *) override

void	mouseReleaseEvent (QMouseEvent *) override

void	moveEvent (QMoveEvent *event) override

void	paintEvent (QPaintEvent *) override

void	PoolStatusChanged (const Enum &Iconized, const ValuePoolPtr &Context)

void	PositionXPropertyChanged (const int &PositionX, const ValuePoolPtr &Context)

void	PositionYPropertyChanged (const int &PositionY, const ValuePoolPtr &Context)

void	ViewerExpertLevelChanged (const int &ExpertLevel, const ValuePoolPtr &Context)

void	ViewerFrameVisibilityChanged (const double &, const ValuePoolPtr &Context)

void	ViewerPositionXPropertyChanged (const int &PositionX, const ValuePoolPtr &Context)

void	ViewerPositionYPropertyChanged (const int &PositionY, const ValuePoolPtr &Context)

Protected Attributes
GUISlot< int >	ExpertLevel

GUISlot< Enum >	FrameVisibility

bool	haveViewerUnderCreation = false

bool	isInViewer

QPointer< QMenu >	menu

RefPtr< VIcon >	myIcon

qVInputContext &	myInputContext

RefPtr< qVParameter::qVParameterEnvironmentConstructor >	myParameterEnvironmentConstructor

GUISlot< int >	PositionXProperty

GUISlot< int >	PositionYProperty

WeakPtr< qVShowObjectAction::Actor >	theActor

GUISlot< int >	ViewerExpertLevel

GUISlot< double >	ViewerFrameVisibility

GUISlot< int >	ViewerPositionXProperty

GUISlot< int >	ViewerPositionYProperty

Friends
class	QStatusLabel

class	qVObjectFrameTitle

Detailed Description

The QT gui for an VObject as part of qvish/net.

Constructor & Destructor Documentation

◆ VObjectFrame()

Wizt::VObjectFrame::VObjectFrame	(	const WeakPtr< VObject > &	myObject,
		QWidget *	parent,
		qVInputContext &	theInputContext,
		const WeakPtr< qVShowObjectAction::Actor > &	theActor,
		bool &	AutoFold,
		bool	inViewer
	)

Show/hide input object

Member Function Documentation

◆ addNewSlot()

bool Wizt::VObjectFrame::addNewSlot ( const RefPtr< VSlot > & what )

If a new slot is added to the object, display the GUI for it in the object form.

Returns: Diagnostics whether a GUI element for this slot has been created.

◆ getVisibleGeometry()

QRect Wizt::VObjectFrame::getVisibleGeometry ( ) const

Give the geometry of the current visual representation of the object's frame, which can be the geometry of the VObjectFrame or its VIcon, if iconized.

If the object is hidden, then NULL QRect is returned (QRect::isNull() ).

The documentation for this class was generated from the following files:

VObjectFrame.hpp
VObjectFrame.cpp
