Class for ranges of types, such as minimum/maximum. More...

#include <Range.hpp>

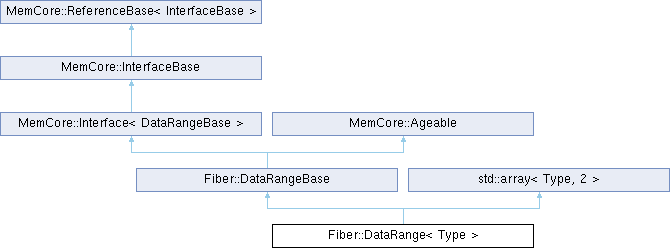

Inheritance diagram for Fiber::DataRange< Type >:

Public Types
using	float_version = Range_as_FloatVersion< Type >

using	float_range_type = typename Range_as_FloatVersion< Type >::type

Public Types inherited from Fiber::DataRangeBase
typedef RefPtr< DataRangeBase >	compute_range_and_set_attribute_func(CreativeArrayBase &CAB, const RefPtr< MemBase > &ArrayBase)

typedef RefPtr< DataRangeBase >	get_range_if_older_than_creator_data_func(CreativeArrayBase &CAB)

Public Types inherited from MemCore::Interface< DataRangeBase >
typedef Domain	InterfaceDomain_t

Public Types inherited from MemCore::ReferenceBase< InterfaceBase >
typedef Object	reference_domain_t

typedef WeakPtr< Object, Object >	SelfPtr_t

Public Member Functions
Type &	Minimum ()

Type &	Maximum ()

const Type &	Minimum () const

const Type &	Maximum () const

	DataRange ()
	Default constructor, no initializiation.

	DataRange (const Type &min, const Type &max)
	Initialize constructor with min and max.

	DataRange (const Ageable &Age)

	DataRange (const Ageable &Age, const Type &min, const Type &max)
	Initialize constructor age (may be important!!) with min and max.

const Type &	Min () const
	The minimum.

const Type &	Max () const
	The maximum.

RefPtr< DataRangeBase >	getFloatRange () const override
	Always double precison!

std::string	str () const override

template<class OtherType >
	DataRange (const DataRange< OtherType > &DR)
	Initialize the range by a given type, which must be convertible.

template<class OtherType >
void	expand (const DataRange< OtherType > &DR)
	Expand the range by a given type, which must be convertible.

void	expandRange (const RefPtr< DataRangeBase > &DRB) override
	Expand range by same type.

template<class CompareType >
bool	contains (const CompareType &Value) const
	Check if certain value is contained here.

RefPtr< DataRangeBase >	getIndexedRange (const RefPtr< MemBase > &ArrayBase, const std::vector< uint32_t > &index_array) const override

RefPtr< DataRangeBase >	getIndexedRange (const RefPtr< MemBase > &ArrayBase, const std::vector< size_t > &index_array) const override

Public Member Functions inherited from Fiber::DataRangeBase
	DataRangeBase (DataRangeBase &Db)
	Copy Constructor.

	DataRangeBase ()
	Constructor, age will be youngest.

	DataRangeBase (const MemCore::Ageable &Age)
	Construct with specific age.

virtual	~DataRangeBase ()=0
	Pure virtual destructor.

Public Member Functions inherited from MemCore::Interface< DataRangeBase >
const type_info &	getInterfaceDomain () const

Public Member Functions inherited from MemCore::InterfaceBase
virtual bool	apply (Intercube &I, const RefPtr< InterfaceIterationParameter > &)

virtual bool	apply_const (const Intercube &I, const RefPtr< InterfaceIterationParameter > &)

Public Member Functions inherited from MemCore::ReferenceBase< InterfaceBase >
auto	getObjectCountID () const noexcept

bool	isIdentical (const WeakPtr< Object, Object > &PossibleSelf) const noexcept

void	mkAutoDestructive ()

refcount_t	refcount () const noexcept

	ReferenceBase (Object *that) noexcept

const auto &	self () const

refcount_t	wrefcount () const noexcept

Public Member Functions inherited from MemCore::Ageable
constexpr	Ageable (age_t t) noexcept

constexpr	Ageable (const Ageable &A) noexcept

	Ageable (const volatile Ageable &A) noexcept

constexpr const Ageable &	getAge () const

bool	isNewerThan (const Ageable &a) const noexcept

bool	isOlderThan (const Ageable &a) const noexcept

bool	isYoungerThan (const Ageable &a) const noexcept

bool	operator!= (const Ageable &a) const noexcept

bool	operator< (const Ageable &a) const noexcept

bool	operator<= (const Ageable &a) const noexcept

bool	operator<= (const volatile Ageable &a) const volatile noexcept

bool	operator== (const Ageable &a) const noexcept

bool	operator> (const Ageable &a) const noexcept

bool	operator> (const volatile Ageable &a) const volatile

bool	operator>= (const Ageable &a) const noexcept

bool	operator>= (const volatile Ageable &a) const volatile noexcept

constexpr void	resetAge () noexcept

void	setInfinitelyNew () noexcept

age_t	time_value () const noexcept

age_t	time_value () const volatile noexcept

Ageable &	touch () noexcept

age_t	update (age_t age) noexcept

age_t	update (const Ageable &Other) noexcept

age_t	update (const volatile Ageable &Other) volatile noexcept

Static Public Member Functions
static RefPtr< DataRange >	get_attribute (const CreativeArrayBase &CAB)
	Get the range attribute for a Fragment's Creator if the attributes are valid, i.e.

static RefPtr< DataRange >	set_from_attribute (CreativeArrayBase &CAB)

static RefPtr< DataRange >	get_attribute (const Field &F)
	Get the range attribute for a Field if the attributes are valid, i.e.

static RefPtr< DataRange >	set_from_attribute (Field &F)

static RefPtr< DataRange >	get_cached_range_if_older_than_data (const CreativeArrayBase &CAB)

static RefPtr< DataRange >	get_range_if_older_than_data (CreativeArrayBase &CAB)
	Get a cached range from the creative array if the data are older or than the range.

static RefPtr< DataRangeBase >	get_range_if_older_than_creator_data (CreativeArrayBase &CAB)

static RefPtr< DataRange >	get_cached_range_if_older_than_field (const Field &F)
	Get a cached range from the Field if the data are older or than the range.

static RefPtr< DataRange >	get_cached_range (const Field &F)
	Get any range information that is available from the Field, used e.g.

static RefPtr< DataRange >	get_range_if_older_than_field (Field &F)
	Get a cached range from the Field if the data are older or than the range.

static RefPtr< DataRange >	compute_range (const RefPtr< MemBase > &ArrayBase, const string &ProvenancePath)
	Perform an actual computation of the range.

template<typename index_t >
static RefPtr< DataRange >	compute_indexed_range (const RefPtr< MemBase > &ArrayBase, const std::vector< index_t > &index_array)

static bool	creator_has_compatible_type (CreativeArrayBase &CAB)

static RefPtr< DataRangeBase >	compute_range_and_set_attribute (CreativeArrayBase &CAB, const RefPtr< MemBase > &ArrayBase)
	unconditionally compute: Overwrites a given attribute or interface.

static RefPtr< DataRange >	possibly_compute_and_set_attribute (CreativeArrayBase &CAB, bool AsynchRequest, bool AvoidDataLoading, const RefPtr< MemBase > &PossibleData)
	Ignore an existing Range attribute and try to compute the Range newly if the data are available (and create them, if AvoidDataloading is false), then overwrite an existing Range attribute with the new value.

static RefPtr< DataRange >	retrieve (CreativeArrayBase &CAB, bool AsynchRequest=false, bool AvoidDataLoading=false, const RefPtr< MemBase > &PossibleData=nullptr)
	Provide a data range on a given CreativeArrayBase from the attribute, if such exists and is older than the data itself, or perform a computation and store the result as attribute.

static RefPtr< DataRange >	retrieve (Field &F, const RefPtr< FragmentID > &f, bool AsynchRequest, bool AvoidDataLoading=false)

static bool	expand_range (RefPtr< DataRange< Type > > &GlobalRange, const RefPtr< DataRange< Type > > &LocalRange)

static bool	compute_and_expand_range (RefPtr< DataRange< Type > > &GlobalRange, const RefPtr< FragmentID > &f, const RefPtr< CreativeArrayBase > &cab, bool theAsynchRequest, bool theAvoidDataLoading)

static void	computeRangeOnAvailableFragments (Field &F, bool RequestToLoadMore=false)

static RefPtr< DataRange< Type > >	retrieve (Field &F, bool theAsynchRequest, bool theAvoidDataLoading=false)

Static Public Member Functions inherited from Fiber::DataRangeBase
static void	clear (CreativeArrayBase &CAB)

static void	clear (Field &F)

static RefPtr< MemCore::ChunkBase >	get_range_attribute (const Field &F)

static RefPtr< DataRangeBase >	get_cached_rangebase_if_older_than_field (const Field &F)

static bool	need_to_recompute (const Field &F)

static void	setRangeCompleteness (Field &F, unsigned nFragments, unsigned FragmentsNotUsedForRangeComputation)

static bool	isRangeComplete (Field &F)

static void	computeRangeOnAvailableFragments (Field &F, compute_range_and_set_attribute_func typed_compute_function, get_range_if_older_than_creator_data_func range_determinator, bool RequestToLoadMore=false)

Static Public Member Functions inherited from MemCore::Ageable
static const Ageable &	InfinitelyNew () noexcept

static constexpr const Ageable &	InfinitelyOld () noexcept

static age_t	now () noexcept

Related Symbols
(Note that these are not member symbols.)
static RefPtr< DataRange< Type > >	setFieldRange (Field &F, const Type &Min, const Type &Max, bool Unchangeable=false)
	Set, and overwrite, and explicit range attribute on a Field.

static RefPtr< DataRange< Type > >	setCreatorRange (CreativeArrayBase &CAB, const Type &Min, const Type &Max)
	Set, and overwrite, and explicit range attribute on a Creator.

template<class Type >
RefPtr< DataRange< Type > >	setFieldRange (Field &F, const Type &Min, const Type &Max)
	Set the range information on a field with type information as provided implicitly by the type of the Min/Max arguments.

template<class Type >
RefPtr< DataRange< Type > >	setCreatorRange (CreativeArrayBase &CAB, const Type &Min, const Type &Max)
	Set the range information on a data Creator with type information as provided implicitly by the type of the Min/Max arguments.

Additional Inherited Members
Public Attributes inherited from std::array< Type, 2 >
T	elements
	STL member.

Protected Member Functions inherited from MemCore::ReferenceBase< InterfaceBase >
virtual void	extremeUnction ()

ReferenceBase &	operator= (const ReferenceBase &R)

void	suicide ()

Detailed Description

template<class Type>
struct Fiber::DataRange< Type >

Class for ranges of types, such as minimum/maximum.

Examples: ModifyingPointCloudRange.cpp, and TransparentColoredSurface.cpp.

Member Function Documentation

◆ creator_has_compatible_type()

template<class Type >

static bool Fiber::DataRange< Type >::creator_has_compatible_type ( CreativeArrayBase & CAB )

inlinestatic

TODO Check for inheritance relationships!!

References MemCore::Typename().

Referenced by Fiber::DataRange< Type >::get_range_if_older_than_data(), Fiber::DataRange< Type >::possibly_compute_and_set_attribute(), and Fiber::DataRange< Type >::retrieve().

◆ expandRange()

template<class Type >

void Fiber::DataRange< Type >::expandRange ( const RefPtr< DataRangeBase > & DRB )

inlineoverridevirtual

Expand range by same type.

Implements Fiber::DataRangeBase.

References Fiber::DataRange< Type >::expand().

◆ get_attribute() [1/2]

template<class Type >

static RefPtr< DataRange > Fiber::DataRange< Type >::get_attribute ( const CreativeArrayBase & CAB )

inlinestatic

Get the range attribute for a Fragment's Creator if the attributes are valid, i.e.

they are older than the Creator's age.

Parameters

CAB	The Creator.

References Fiber::DataRange< Type >::DataRange(), MemCore::Ageable::getAge(), MemCore::Attributes::getAttribute(), MemCore::Ageable::isOlderThan(), and MemCore::Typename().

Referenced by Fiber::DataRange< Type >::get_cached_range().

◆ get_attribute() [2/2]

template<class Type >

static RefPtr< DataRange > Fiber::DataRange< Type >::get_attribute ( const Field & F )

inlinestatic

Get the range attribute for a Field if the attributes are valid, i.e.

they are older than the Field's age.

Parameters

F	The Field.

References Fiber::DataRange< Type >::DataRange().

◆ get_cached_range()

template<class Type >

static RefPtr< DataRange > Fiber::DataRange< Type >::get_cached_range ( const Field & F )

inlinestatic

Get any range information that is available from the Field, used e.g.

for visualization. This function does not check the age or completeness of the range information ( DataRangeBase::isRangeComplete() );

References Fiber::DataRange< Type >::get_attribute().

◆ getFloatRange()

template<class Type >

RefPtr< DataRangeBase > Fiber::DataRange< Type >::getFloatRange ( ) const

inlineoverridevirtual

Always double precison!

Implements Fiber::DataRangeBase.

References Fiber::DataRange< Type >::Max(), and Fiber::DataRange< Type >::Min().

◆ getIndexedRange() [1/2]

template<class Type >

RefPtr< DataRangeBase > Fiber::DataRange< Type >::getIndexedRange	(	const RefPtr< MemBase > &	ArrayBase,
		const std::vector< size_t > &	index_array
	)		const

inlineoverridevirtual

Implements Fiber::DataRangeBase.

◆ getIndexedRange() [2/2]

template<class Type >

RefPtr< DataRangeBase > Fiber::DataRange< Type >::getIndexedRange	(	const RefPtr< MemBase > &	ArrayBase,
		const std::vector< uint32_t > &	index_array
	)		const

inlineoverridevirtual

Implements Fiber::DataRangeBase.

◆ str()

template<class Type >

std::string Fiber::DataRange< Type >::str ( ) const

inlineoverridevirtual

Implements Fiber::DataRangeBase.
